Allen Bradley 1771 IN

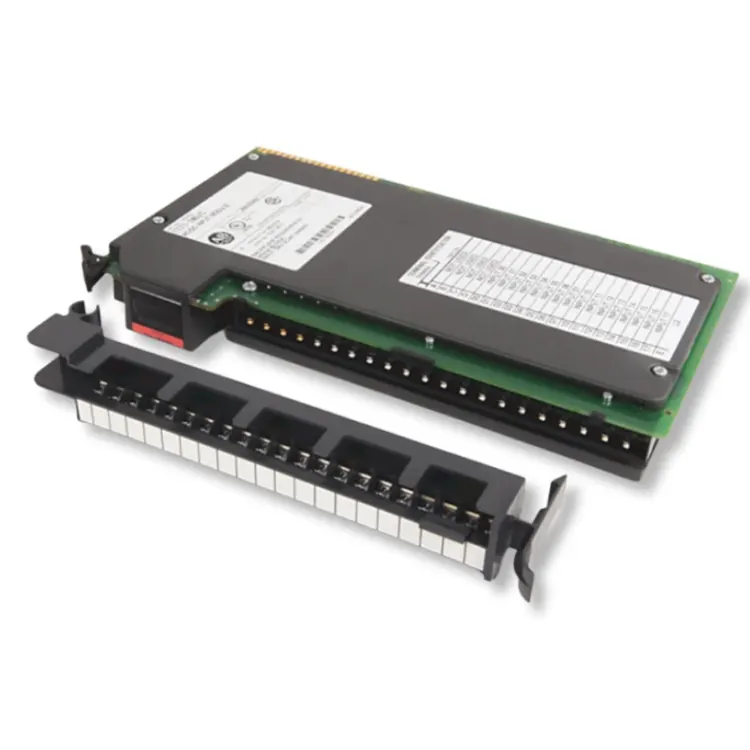

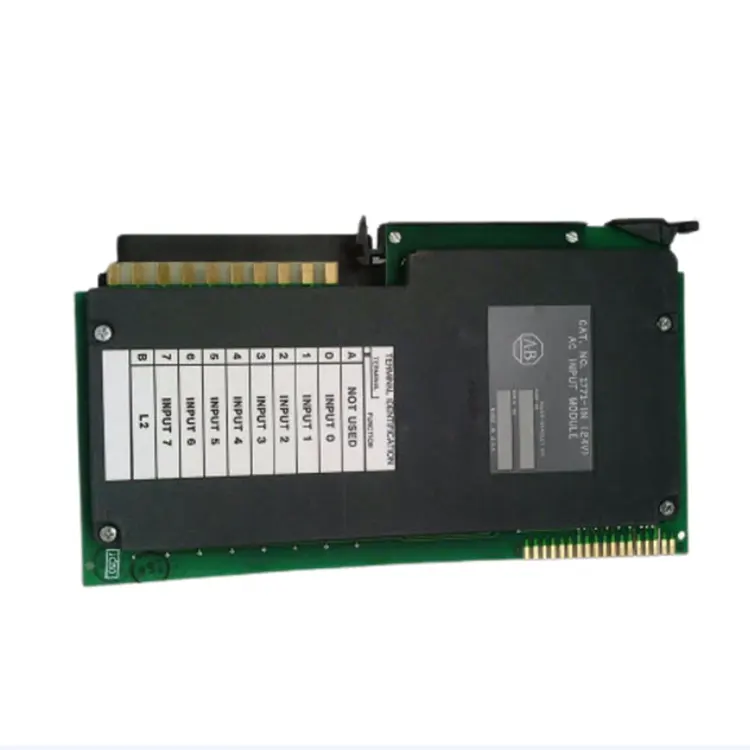

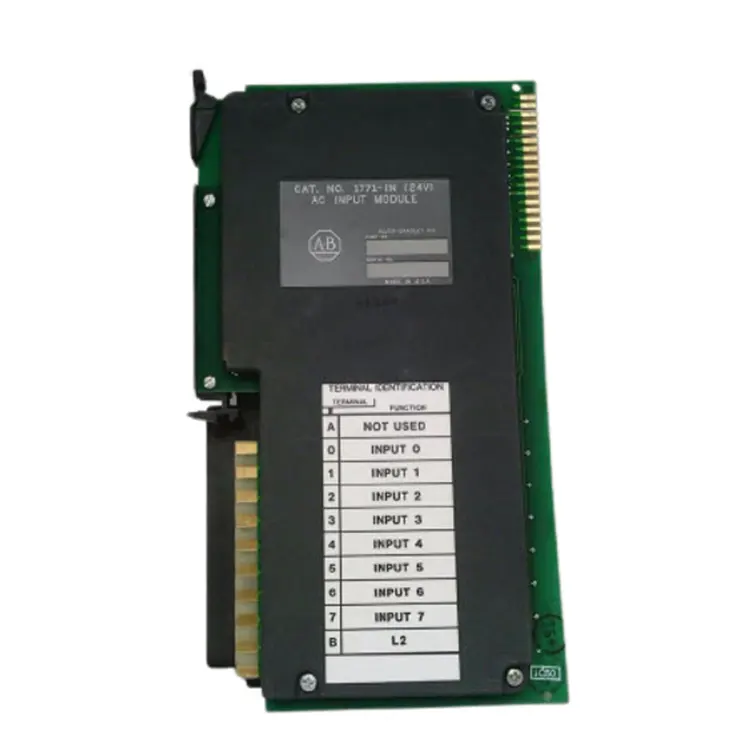

Allen Bradley 1771 IN features an 8-channel AC input design, capable of reliably collecting on-site 24V AC control signals. Photoelectric isolation technology is used to effectively improve the anti-interference ability and operation stability of PLC system. The module is compatible with PLC-5 control system, suitable for old automation equipment maintenance and replacement, and with reliable industrial grade design, can meet the long-term continuous operation needs. As a professional industrial control supplier, Feimu Technology strictly selects suppliers and avoids using inferior dismantled parts. Relying on its long-term supply chain reserves, it has 1771 IN in stock resources. At the same time, it provides matching verification, installation consultation services, helping customers efficiently complete spare parts replacement and reduce equipment downtime.

Application fields

Allen Bradley 1771 IN is widely used in automatic production lines, packaging equipment, machine tool control systems, conveying equipment and industrial switching signal acquisition and other fields, especially suitable for the maintenance, upgrading and replacement of PLC-5 old control systems. IN an auto parts production line, a customer used 1771 IN to collect equipment limit switches and sensor signals. After replacing the original faulty module, the system ran stably, the downtime was reduced, and the reliability of the production line was improved. The customer feedback: "module compatibility is good, easy to install, can meet the old PLC system long-term operation needs."

Installation Procedure

Disconnect power supply:

Turn off the PLC-5 system power supply and confirm that the rack is without electricity before proceeding with the installation operation.

Install module:

Align the 1771-IN module with the slot of the 1771 I/O rack and insert it along the guide rail, ensuring that the backplane interface of the module is connected to the rack.

Fix module:

Lock the module fixing clips to ensure the module is installed firmly and avoid loosening during operation.

Connect the scene signal:

24 v AC input signal lines mark by terminal connections, such as buttons, sensors, limit switches, etc., check the wiring is correct.

Check module state:

After power-up, observe the state of the input indicator to confirm that the field signal changes can be correctly collected by the module.

System test:

The input address status was checked in the PLC-5 control program to confirm that 1771-IN communicated with the controller normally.

Note: Power off before installation or replacement of 1771 IN, and avoid direct contact with the connecting terminal of the module backplane to prevent damage caused by static electricity or misoperation.

Parameters

FAQ

Q1. Which on-site devices can it connect to?

The Allen Bradley 1771 IN can connect to switch quantity devices such as buttons, limit switches, relay contacts, AC sensors, etc., for collecting signals of the equipment's operating status.

Q2. The input indicator light is not on. How to troubleshoot?

The inspection steps are as follows:

Confirm whether the on-site input voltage reaches 24V AC;

Check if the terminal wiring is correct;

Check if the module is correctly installed in the I/O rack;

Confirm that the PLC program input address configuration is correct;

Replace the test module to determine if there is a hardware fault.

Q3. What are the common faults?

Common problems include: no signal response from the input point; inconsistent input status with the on-site equipment; the module cannot be recognized by the PLC; loose terminal wiring; aging of the input channel after long-term operation.

Q4. What are the advantages compared to modern input modules?

Although it belongs to an old model of PLC-5 series module, its advantages lie in strong compatibility, stable operation, suitability for direct replacement of old equipment, and can reduce the cost of upgrading and transforming the old automation system.

Choose Our Advantages

Feima Technology is a seasoned industrial control supplier, well aware that the Allen Bradley 1771 IN is a discontinued old model spare part with mixed market supply. We strictly screen the quality of the components, avoiding inferior refurbished parts to reduce the risk of equipment operation. We have regular stock resources and can respond quickly to the urgent maintenance needs of old production lines. Team familiar with PLC - 1771 series 5 system, can help check the compatibility model. Trading procedure specification, communication response in a timely manner, and at the same time support rockwell 1771 series accessories complete one-stop, saves on the various comparison for the goods.
