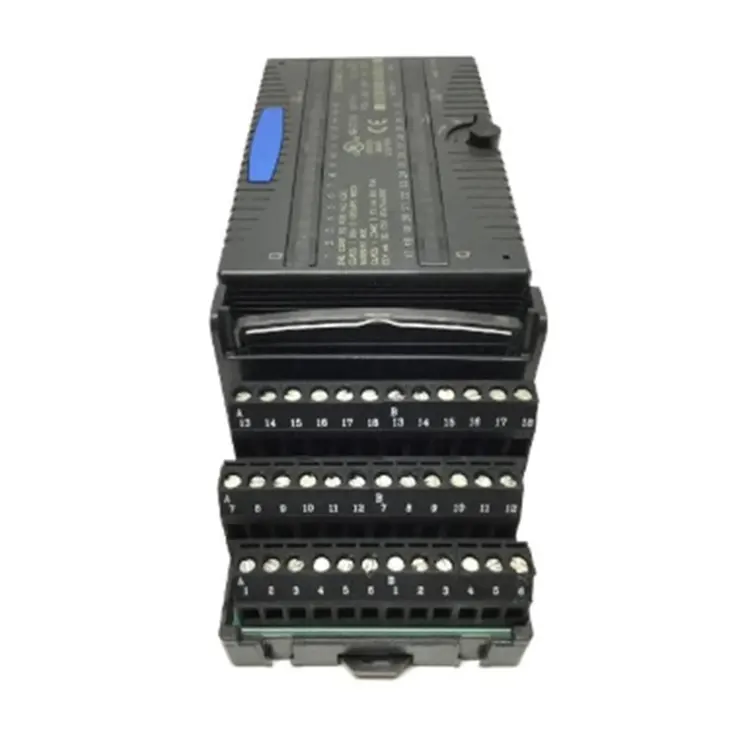

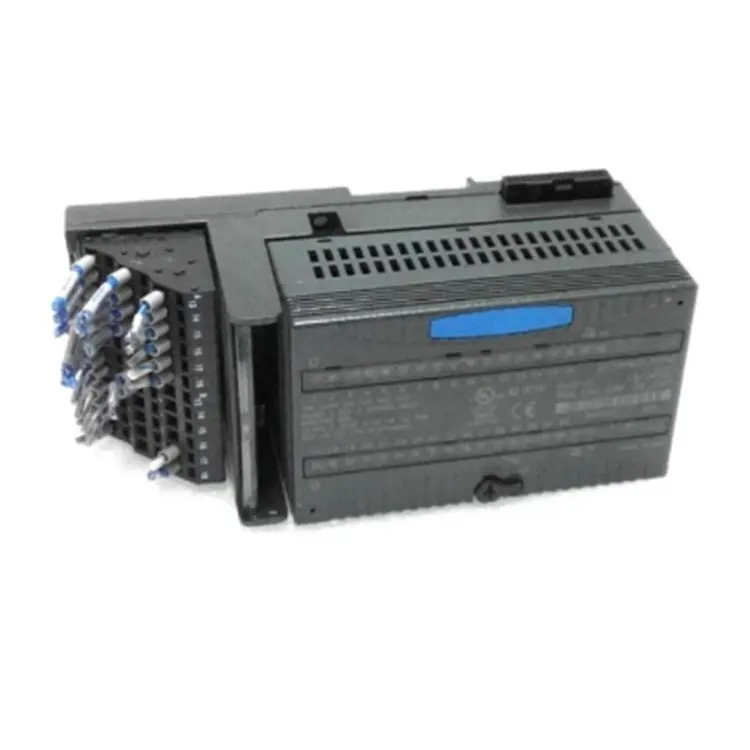

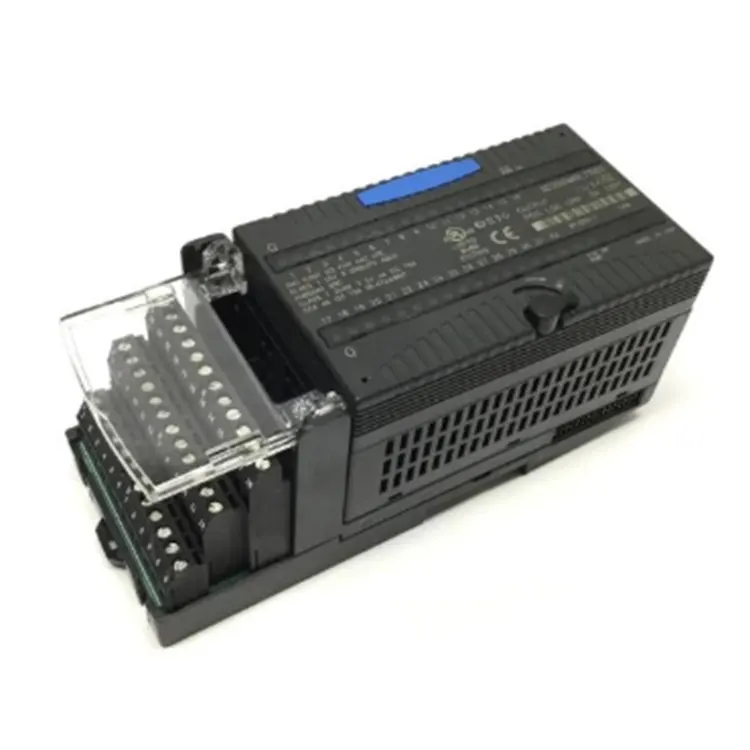

Feimu Technology will provide you with the GE IC200MDL750, which features high precision and high sensitivity. It can accurately collect analog signals and can serve as a mature and high-density industrial output solution. It is widely used in scenarios such as controlling binary devices that only require on/off states, controlling solenoid valves, relay coils, and driving indicator lights and alarms, which all require high-density and switch quantity control.
However, when using it, special attention should be paid to its requirements for external power supply, version, and inductive load handling. As a professional supplier, we highly recommend this product.
|
Parameter |
Value |
|
Output points |
32 points, divided into 2 groups, with 16 points in each group |
|
Dimensions (length x width x height) |
110 mm x 66.8 mm x 50 mm (excluding base) |
|
Installation method |
Standard 35mm DIN rail installation |
|
Temperature |
Operating temperature 0-60°C, storage temperature -40-85°C |
|
Output voltage |
12/24 VDC |
|
Output current per point |
0.5 A (continuous) |
|
Total module current |
Maximum 8 A |
The GE IC200MDL750 features 32 discrete output points integrated within a compact module, divided into two groups of 16 each, achieving high-density integration that effectively saves control cabinet space; it supports a wide range of 10.2 - 30 VDC power supplies, compatible with 12V and 24V systems. Each output point can provide a continuous current of 0.5A and can withstand a surge current of 2.0A. It offers up to 1500VAC (1 minute) isolation protection, enhancing the reliability of the electrical performance and safety of the module and connected devices; each output channel has an independent LED indicator light, facilitating quick location of fault points. At the same time, the "OK" and "FLD PWR" LEDs on the module panel can be used for convenient diagnosis and maintenance of the module and external power supply status; and it adopts an industrial-grade design, suitable for harsh industrial environments. It has excellent environmental adaptability and reliability characteristics such as the ability to operate in Class I, Division 2 hazardous locations.
In industrial automation control of various industrial equipment such as machine tools, packaging machinery, and automated assembly lines. Precise control of production lines, equipment status monitoring, such as controlling the start and stop of motors and the opening and closing of valves, etc. Factory automation. Combined with PLC or PAC controllers, it is applied in industries such as chemical engineering, pharmaceuticals, and metallurgy to achieve functions such as logic control, alarm management, and pump sequencing control in process control. Distributed I/O modules, integrated into SCADA or DCS systems, are used for monitoring and controlling power systems of power equipment. It is widely applied in fields such as safety interlock functions, cutting off equipment or activating protection mechanisms in emergency situations to improve system safety - the GE IC200MDL750 is widely used in these areas.
Yes. The VersaMax series to which the GE IC200MDL750 belongs is designed to allow the removal or insertion of modules while the system is powered on. However, specific hazardous locations and installation guidelines must be followed during the operation.Q2: What should be noted when driving inductive loads?
A suppression circuit must be connected in parallel across the inductive load terminals to absorb the reverse electromotive force generated during turn-off and protect the output contacts of the module from damage. This is crucial for ensuring the long-term reliable operation of the module.
Yes. Although the control logic of the module is powered by the backplane (5VDC, maximum 90mA), the load power supply for the output channels must be provided externally, with a voltage range of 10.2 to 30VDC. The module itself does not generate the power for driving the load.
Yes. This module needs to be used in conjunction with the dedicated terminal block of the GE IC200TBxxx series. This component needs to be ordered separately.
