Feimu Technology, as a professional industrial control supplier, has conducted long-term power-on full-function tests on all Allen Bradley 2711P B6M1A products. Each component, including the screen, buttons, communication, and storage modules, has been individually verified for performance. Faulty and defective units have been eliminated to ensure the continuous and stable operation of the equipment for customers.
It has long reserved this type of human-machine interface in stock and efficiently provides all the necessary interaction operation spare parts for various automation projects.

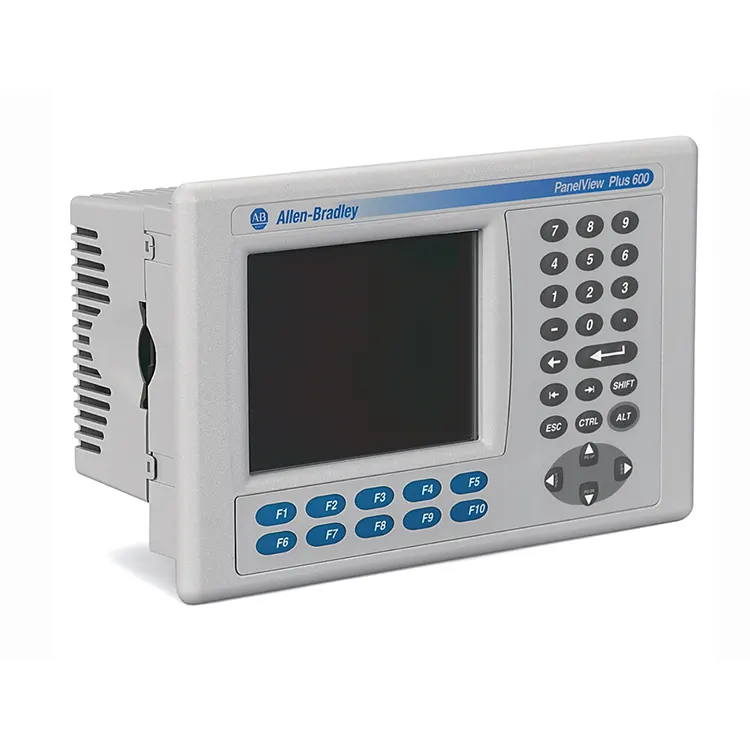

This touchscreen adopts a dual-operation design of buttons and resistive touch. The industrial-grade wear-resistant screen is suitable for dusty and highly-vibrating workshop environments. It is equipped with a large-capacity storage and Ethernet interface, supporting program external backup, remote screen access, and long-term data archiving. The operation response is rapid, and the communication connection is stable and uninterrupted.
This model has stopped original factory production. A large number of refurbished devices with aged backlights and repaired motherboards are circulating in the market. During use, problems such as sudden black screen, touch failure, and communication disconnection may occur, directly causing production line stagnation.
Equipment state monitoring: real-time display equipment running status and alarm information, production data, etc.
Operation control: Complete the start, stop, parameter modification and other operations through the touch screen.
PLC data interaction: Exchange data with PLC through industrial communication interface to achieve field control.
Graphical interface display: Support buttons, trend chart, alarm window, data list and other HMI functions.
Model confirmation: The model of the confirmation label is Allen Bradley 2711P B6M1A.
Appearance check: check whether the screen has scratches, cracks; Check the case for damage.
Interface check: Check whether the power interface and communication interface are in good condition.
Function Testing: Power on and check the display; test the touch function; check the communication and program operation status.
|
Parameters |
Specifications |
|
Product Series |
Allen-Bradley PanelView Plus 6 |
|
Product Type |
Human-Machine Interface Terminal (HMI) |
|
Display Size |
6 inches |
|
Display Type |
Gray Scale LCD Display |
|
Operation Mode |
Touch Input |
|
Resolution |
320 × 240 pixels |
|
Communication Interface |
RS-232, Ethernet (Depending on Configuration) |
|
Power Supply |
24V DC |
|
Software Platform |
FactoryTalk View Machine Edition |
|
Memory |
512 MB RAM / 512 MB Flash (Typical Configuration for PanelView Plus 6 Series) |
|
Installation Method |
Panel Embedded Installation |
|
Protection Grade |
NEMA Type 12/13, 4X (Indoor) and IP66 (Front Panel) |
|
Operating Temperature |
0–55 °C |
The 2711P-B6M1A has LED indicators on the front panel. These provide immediate status information without a programming terminal.
|
LED |
Status |
Meaning |
Action |
|
PWR |
Green |
Unit powered and operating normally. |
No action needed. |
|
PWR |
Off |
No power to unit. |
Check 24V DC power. Check wiring. |
|
COMM |
Green |
Communication active. |
No action needed. |
|
COMM |
Off |
No communication. |
Check cable. Check PLC settings. Check IP address. |
|
FAULT |
Red |
Unit fault. Hardware or software error. |
Check configuration. Cycle power. Replace if red remains. |
PWR LED is off but the unit has power: Check the power supply polarity. The 2711P-B6M1A requires 24V DC with correct polarity.
COMM LED is off but the PLC is running: Check the Ethernet cable or RS-232 cable. Verify the communication settings in FactoryTalk View Studio match the PLC settings.
FAULT LED is red: Go online with FactoryTalk View Studio to check the diagnostic log. Common causes include configuration errors or corrupted application files.
The Allen Bradley 2711P B6M1A can be connected to various Allen-Bradley controllers via industrial communication interfaces, such as:
ControlLogix series; CompactLogix series; SLC 500 series; MicroLogix series.
Common communication methods:
EtherNet/IP; RS-232 DF1; DH+ (requires corresponding communication module).
The actual communication method depends on the specific hardware configuration.
Use FactoryTalk View Studio Machine Edition (ME)
For creating: operation screens; buttons and indicators; alarm windows; trend curves; parameter setting interfaces.
Operating environment: FactoryTalk View ME Station.
Possible reasons: not plug in; 24 v DC voltage abnormal; Backlit damage; Motherboard malfunction.
Troubleshooting method: measure 24V DC input; check power terminals; restart the device; check if it enters the startup interface; replace the display module if necessary.
Possible reasons:
Touch screen calibration error; touch panel damaged; system software abnormal.
Solution:
Enter the configuration interface to re-calibrate the touch screen; check the application running status; replace the touch component.
Q5. Whether to support data storage?
Support was provided by:
Internal storage
SD card (according to the model configuration);
Implementation
Backup application;
Data logging;
Configuration file saved.
HMI directly controls equipment operation and production monitoring. Poor-quality second-hand touch screens will frequently cause production halts and losses. Our company, as a supplier deeply involved in the Rockwell human-machine interface field, has established exclusive sourcing criteria for Allen Bradley 2711P B6M1A, strictly controlling the degree of damage to the mainboard, screen, and buttons, and eliminating refurbished and repaired machines. With sufficient inventory, we can deliver quickly. At the same time, we provide communication connection, program upload and debugging technical support, and solve the human-machine interface procurement problems of equipment maintenance and production line renovation in one step.
