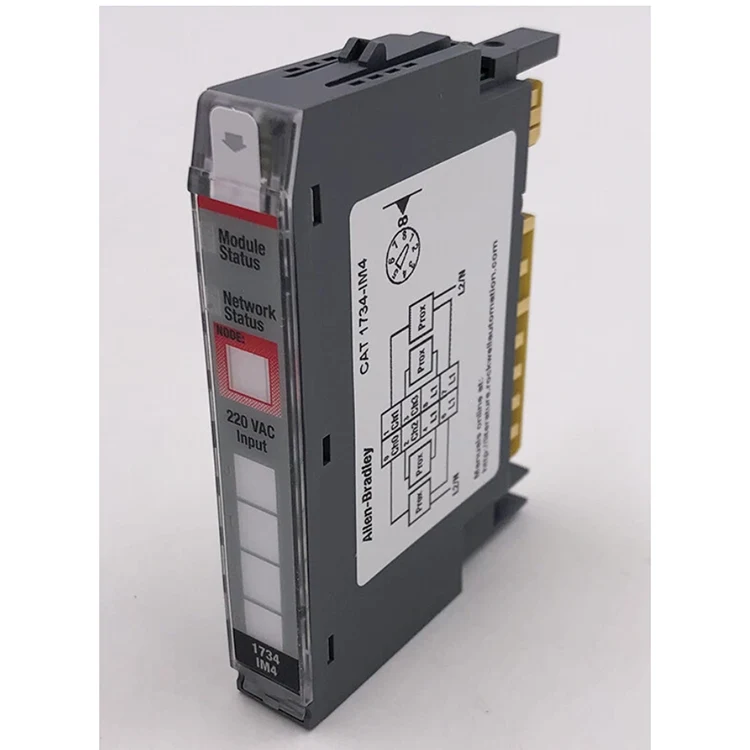

Feimu Technology, as an established supplier, has been providing original and genuine products in stock for a long time. It is a reliable choice for you to purchase Rockwell industrial control accessories. The core advantage of Allen Bradley 1734 IM4 lies in its 220V AC input compatibility, 4-point digital signal acquisition, small modular design, convenient installation and maintenance, as well as excellent industrial reliability. It is particularly suitable for factory automation production lines, mechanical equipment control, remote I/O expansion of electrical cabinets, and process monitoring systems.
|
Item |
Details |
|
Input Voltage Range |
159 - 264V AC |
|
Input Frequency |
47 - 63 Hz |
|
Input Current |
Approximately 6.2 mA (159V AC, 60 Hz) |
|
Input Impedance |
Approximately 22.3 kΩ |
|
Maximum Power Consumption |
Approximately 0.80 W (264V AC) |
|
Operating Temperature Range |
-20 - 55℃ |
|
Storage Temperature Range |
-40 - 85℃ |
|
Relative Humidity |
5% - 95% (non-condensing) |
|
Installation Method |
POINT I/O DIN rail installation |
|
Compatible Bases |
1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS |
|
Dimensions (H × W × D) |
Approximately 56 × 12 × 75.5 mm |
|
Weight |
Approximately 30.9 g |
The Allen Bradley 1734 IM4 is widely used in industrial automation, mechanical manufacturing, process control, and distributed I/O systems. It is mainly used to collect 220V AC digital signals from the field and achieve real-time monitoring and control of equipment operation status. For example, on an automotive manufacturing production line, it can connect limit switches, proximity sensors, or equipment operation feedback signals to detect whether the workstation equipment is in place, whether the conveying mechanism is operating normally, and quickly transmit the status information to the PLC control system, helping to achieve automated production and fault diagnosis. With its 4-channel AC input, compact POINT I/O structure, high reliability, and ease of maintenance, this product plays an important role in improving the automation level of industrial equipment, reducing downtime, and ensuring the stable operation of the production process.
Users generally consider this to be a stable and reliable digital input module that is easy to install and suitable for industrial environments. Users have reported that this module adopts a POINT I/O compact design, which can effectively save control cabinet space and has good compatibility, allowing it to be easily integrated into existing Allen Bradley control systems. Many industrial users recognize its stable signal acquisition, reliable long-term operation, and simple maintenance features, especially for automated production equipment that requires continuous operation.
However, some industrial users have pointed out that the overall cost of Allen Bradley products is relatively high, and when project budgets are limited, cost factors may need to be considered; but for automation projects that value system stability, equipment compatibility, and long-term maintenance efficiency, the Allen Bradley 1734 IM4 still has high application value.
This module is mainly used to connect 220V AC switch-type devices, such as auxiliary contacts of AC contactors, motor operation feedback signals, limit switches, selection switches, industrial buttons, and AC proximity detection equipment. By collecting these signals, the PLC can real-time determine the operating status of the equipment.
This product belongs to the POINT I/O platform and can be connected to Allen Bradley control systems through different communication adapters, such as ControlLogix, CompactLogix, etc., and supports industrial communication architectures such as EtherNet/IP and DeviceNet.
It adopts the POINT I/O modular structure and is installed through DIN rails. It needs to be used in conjunction with terminal bases such as 1734 TB, 1734 TBS, 1734 TOP, or 1734 TOPS, and supports quick installation and replacement.
Common screening steps include:
Checking whether the 220V AC input voltage on site is normal;
Confirming whether the wiring of the input terminals is correct;
Checking the status of the module's LED indicator lights;
Checking whether the POINTBus communication is normal;
Confirming whether the I/O configuration in the PLC program matches the actual module model;
Replacing the spare module to test if it is a hardware fault.

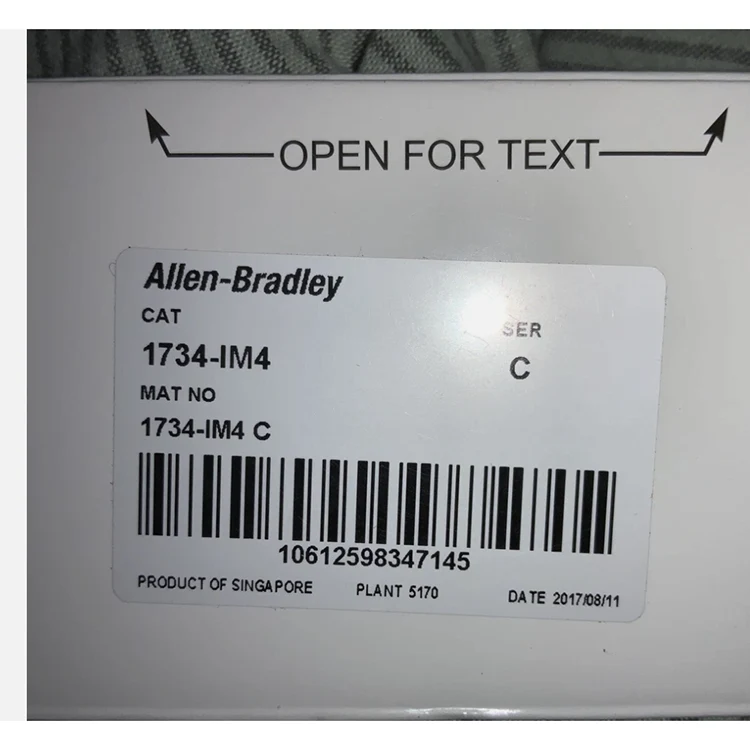

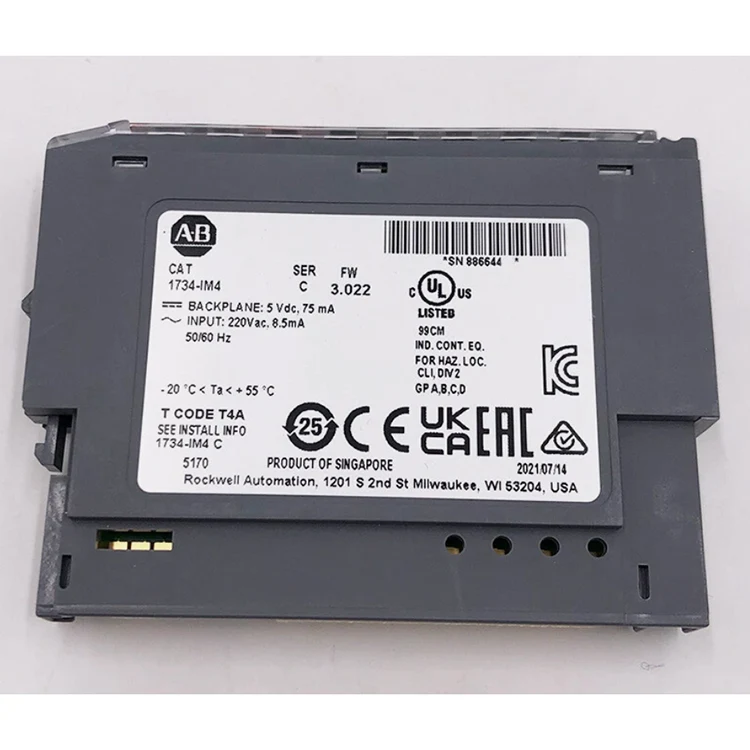

To ensure a good shopping experience for our customers, we will check whether Allen Bradley 1734 IM4 is genuine before shipping. First check the product appearance, model labels, serial number and barcode information is clear and complete and through the Rockwell Automation official channels to check product information; Second, make sure the module specification is in line with the official parameters such as channel 4 220 v AC digital quantity input, 159 ~ 264 v AC input range, working temperature - 20 ~ 55 ℃, etc.; Finally, the power test is carried out, the module is connected to the POINT I/O system, and the PLC software is used to check whether the module can be normally identified, whether the communication is stable, and whether the four input channels can respond normally.

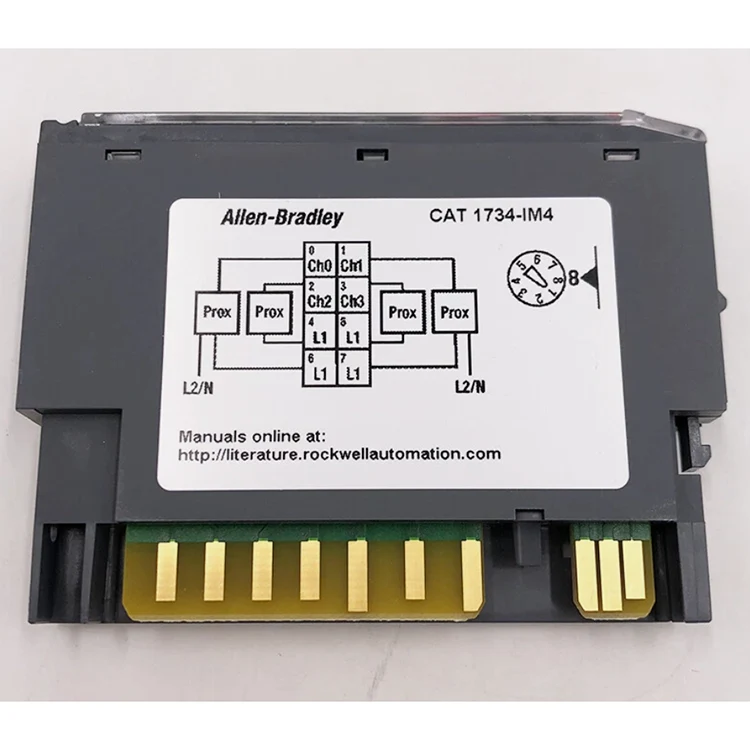

1734-IM4 uses plug-in terminal blocks. Four inputs share a common terminal.
Terminal Assignment:
Terminal 0-3: Input channels 0-3
Terminal 4: Common terminal (AC COM), used for all inputs
Terminals 5-7: Unused
Connection Rules:
Use a 220V AC power supply. Do not connect a DC power supply to the input terminals.
Connect the AC live wire to the input terminal.
Connect the AC neutral wire to the common terminal (AC COM) terminal.
Wire Diameter: 0.5mm² to 1.5mm² (22 to 16 AWG)
Strip Length: 8mm
Torque: 0.5Nm
Common Connection Errors: Connect 24V DC to the input terminals. 1734-IM4 requires 120V AC or 220V AC. DC signals cannot be recognized.
For each 1734-IM4 module from Feimu Technology, the following verification procedures are carried out before leaving the warehouse.
Appearance inspection: The panel color is correct. The label is clear. Check if the bus connectors have bent pins.
Bus test: The module is connected to the POINT I/O test station. The adapter recognizes the module.
Input test: All 4 inputs are tested using a 220V AC signal source. Each input is confirmed to be in normal on-off state.
Delay test: Verify the input response time.
LED test: Check that all 4 channels of the indicator lights are working properly.
Packaging: The module is placed in an anti-static bag. It is sealed in a cardboard box with foam padding. Labels with the module number and test date are attached.
Feimu Technology was established in Jiangmen, Guangdong Province in 2005. We supply original Allen Bradley, Siemens, GE and Schneider components to customers in over 30 countries.
POINT I/O Expertise: We have been supplying POINT I/O modules for more than ten years. We understand the platforms and configurations.
Function Testing: Each module is tested with actual AC signals before shipment.
Reliable Inventory: We have a wide range of commonly used POINT I/O modules in stock. Emergency replacements are dispatched on the same day.
Practical Support: Our team can help solve wiring, addressing and troubleshooting issues.
