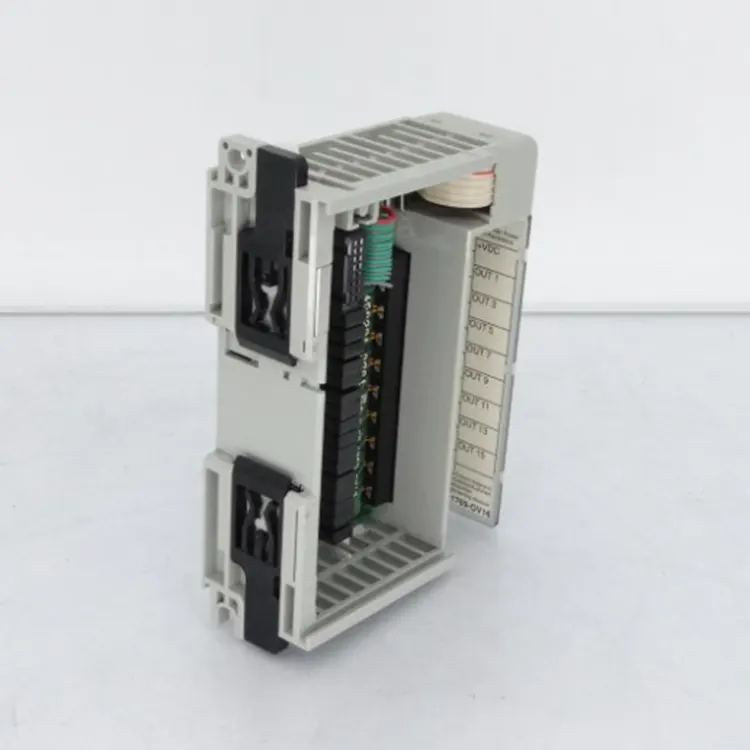

Allen Bradley 1769 OV16

Feimu Technology is a reputable industrial automation supplier, specializing in original and genuine products. Can provide customers with stable supply, selection consultation and supporting technical support, efficient response to spare parts procurement and project supporting needs, to help the smooth operation of equipment. Allen Bradley 1769 OV16 adapter solenoid valve, indicator light, actuator drive, widely used in all kinds of automatic production line. The module is equipped with independent channel indicator light for quick troubleshooting.Compact, quick installation, reliable circuit protection, compatible with CompactLogix control system, in line with many industrial standards.

Parameters

Installation Procedure

Power-off Preparation:

Turn off the PLC system power supply, confirm that the equipment is de-energized, and then proceed with the installation operation.

Module Positioning Installation:

Slide the Allen Bradley 1769 OV16 in along the Compact I/O rail and align it with the CPU or adjacent I/O modules.

Connect the Bus Interface:

Aim the module Bus connector, locking the total pole (Bus Lever), ensure the normal communication module and system.

Fix the Module:

Use panel mounting holes or DIN rails to fix the module, ensuring a secure installation.

Wiring Connection:

According to 24 v DC power supply, output loads connected to the terminal identity and public end (COM), check the wiring of polarity.

Software Configuration and Testing:

Add the module in the Studio 5000/RSLogix environment, configure the I/O address and download the program to test the function of each output point.

Power-on Operation:

Power on the system, and confirm that the module status indicator is normal, no fault alarm.

Note: Power must be disconnected before installing or disassembling 1769 OV16 to avoid module damage or risk of electric shock.

FAQ

Q1. What is the maximum allowable current for each output point?

The maximum rated current of a single output point is 0.5A (60 ° C environment), and the total output current of the module is about 4A (60 ° C environment).

Q2. Which devices can be directly driven?

It is commonly used to drive: 24V DC solenoid valves, intermediate relay coils, indicator lights, contactor control circuits, pneumatic actuators

For high power or perceptual load, it is suggested that increasing relay or surge protection.

Q3. Does it support hot swapping?

The Allen Bradley 1769 OV16 does not support hot plugging. Disconnect the system power supply before installing or replacing the module to avoid damage to the module or abnormal communication.

Q4. The output does not act after power-up. How do I troubleshoot?

Check steps:

Confirm that the output address in the PLC program is correct;

Check whether the module is online, no fault alarm;

Measuring 24 v DC power supply is normal;

Check the wiring of output common terminal (DC COM);

Check if the load current exceeds the module's rated value;

Using the multimeter test output point.

How to detect after receiving

Check the labels:

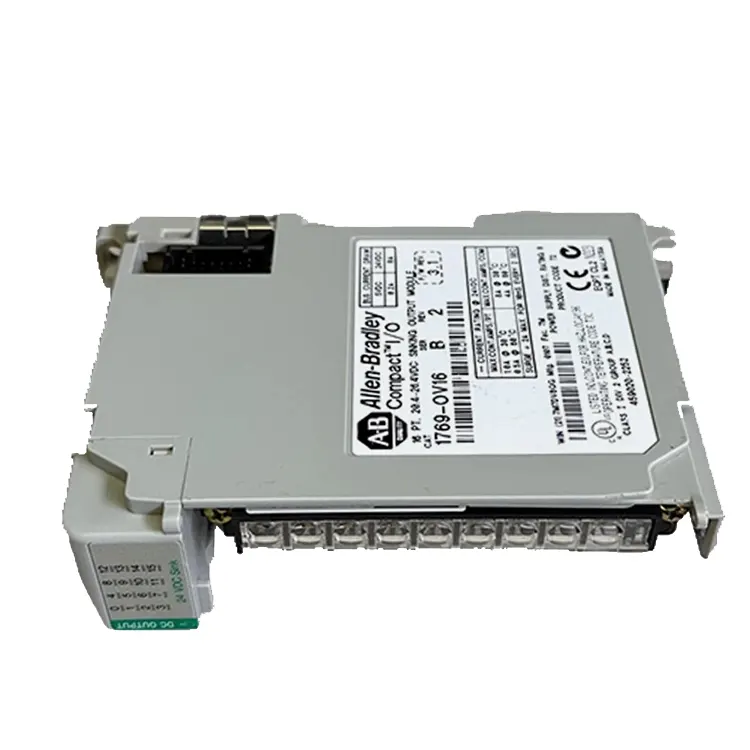

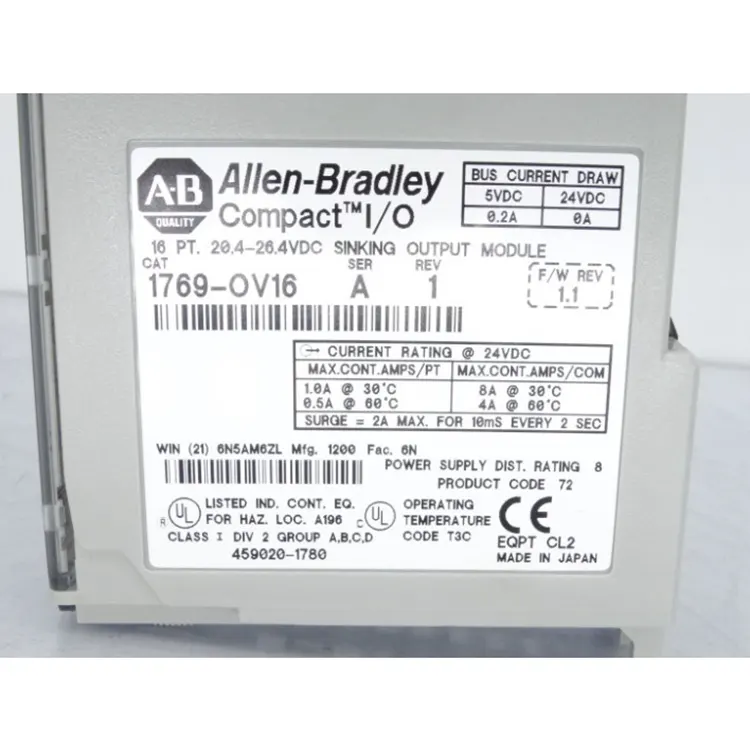

Confirm that the model is 1769 OV16. The Allen Bradley label is clear and there are no traces of alteration or re-pasting on the label.

Verify the information:

Check whether the Serial Number, Catalog Number and production information are complete and consistent.

Check appearance:

The genuine shell has fine workwork, no damage to the interface, terminal row and buckle, and no obvious trace of renovation.

Power-on test:

After installation to CompactLogix system, confirm the Studio 5000 can normal recognition module, status lights and output function is normal.

Parameter verification:

Make sure the module meets the specification: 16 points, 24V DC, Sinking digital output.
