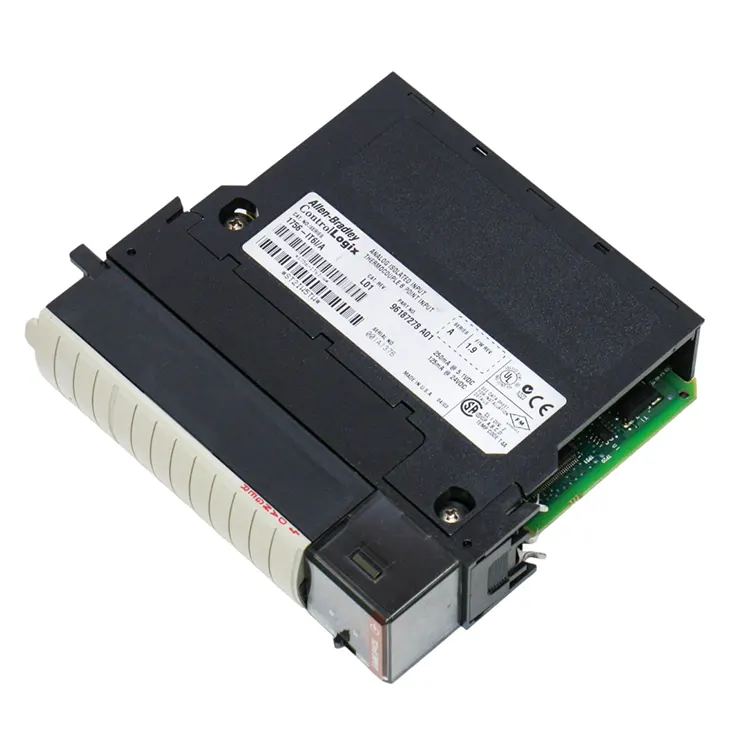

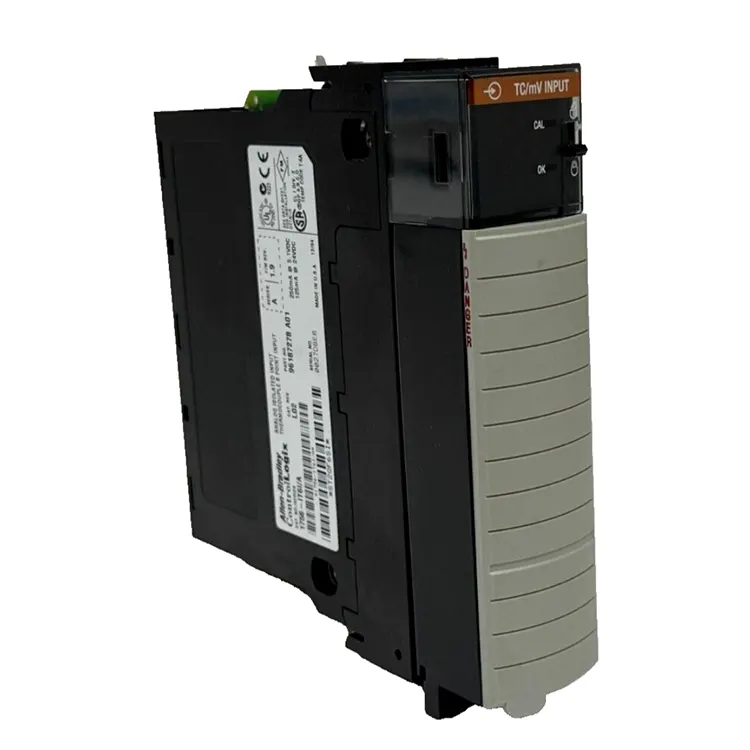

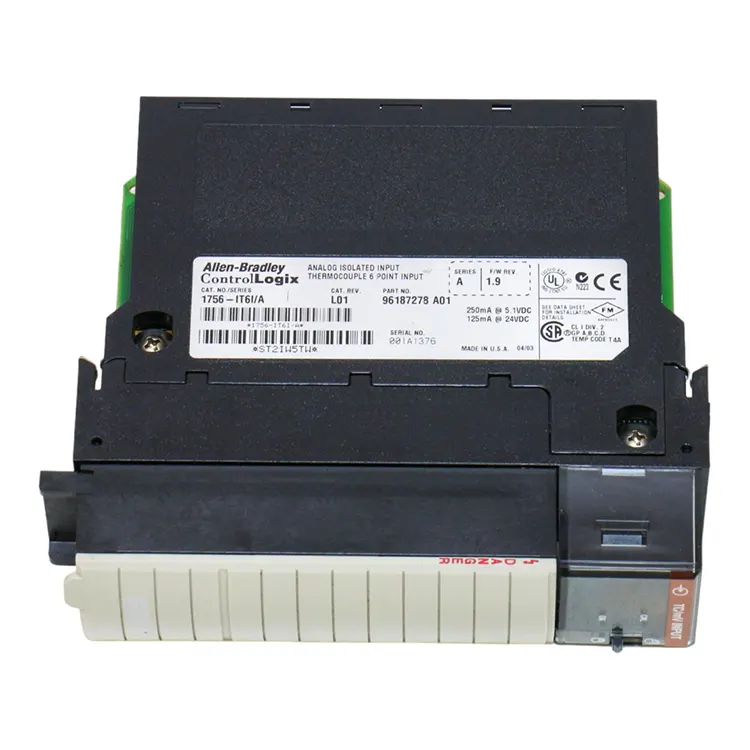

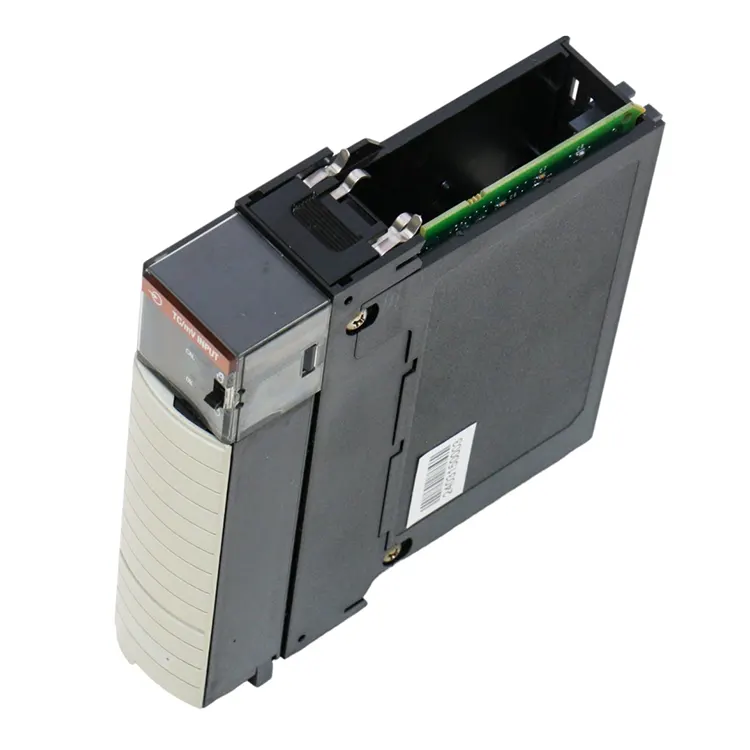

Allen Bradley 1756 IT6I

The Allen Bradley 1756-IT6I is a 6-channel isolated thermocouple/mV input module for the ControlLogix platform. It supports 11 thermocouple types including B, E, J, K, R, S, T, N, C, D, and L. Each channel features independent 250V isolation to eliminate signal crosstalk and reject electromagnetic interference. With 16-bit resolution and built-in cold junction compensation (CJC), it delivers accurate temperature readings even in harsh industrial environments. The module also includes open-circuit detection for fast sensor fault identification.

Different from the ordinary analog module, Allen Bradley 1756 IT6I has independent electrical isolation design for each channel, which can effectively avoid cross-channel signal crosstalk and field electromagnetic interference. With precise cold end compensation technology, the acquisition error under high and low temperature conditions can be greatly reduced, and the temperature control data can be guaranteed real-time, accurate and stable. The module supports the disconnection self-test function, which can quickly identify sensor faults, facilitate equipment operation and maintenance to remove obstacles, and adapt to harsh continuous production conditions. Precision temperature control module directly decision process roa, inferior module can easily cause temperature drift, data distortion. As a seasoned industrial control supplier, Feimu Technology has conducted precision calibration and comprehensive functional inspections on all 1756 IT6I in stock, eliminating defective products with reduced accuracy, and ensuring the stable operation of customers' precision temperature control production lines.

FAQ

Q1. Which input signals are supported?

Allen Bradley 1756 IT6I supports: thermocouple input (Thermocouple), millivolt signal input (mV).

The supported thermocouple types include:

B type, E type, J type, K type, R type, S type, T type, N type, C type, D type, L type.

Input range:

-12 to 78 mV

-12 to 30 mV (high resolution range)

Q2. What is the function of isolation?

Channel isolation is mainly used for:

Reducing on-site electromagnetic interference;

Preventing mutual influence between different temperature detection points;

Improving measurement accuracy;

Protecting the ControlLogix control system.

It is particularly suitable for:

Electric furnace;

Chemical equipment;

High-temperature production line

Energy equipment and other complicated industrial environment.

Q3. What is the cold junction compensation (CJC)?

Thermocouple temperature measurement terminals of the ambient temperature to be compensated, 1756 IT6I by CJC function terminal temperature detection module, the thermocouple signal correction, make the PLC to obtain more accurate temperature value.

If a CJC anomaly occurs, it may result in:

Temperature of all channels is too high or too low; There is a fixed deviation in temperature readings.

Q4. How to perform software configuration?

The configuration steps:

Add 1756-IT6I module in Studio 5000;

Choose the right thermocouple type;

Set input range;

The configuration data format;

Download configuration to ControlLogix controller;

Online monitoring of the input data.

Note: Incorrect configuration may result in abnormal temperature reading or channel alarm.

Q5: What is the difference between 1756-IT6I and 1756-IT6I2?

A: The primary difference lies in the terminal block. The 1756-IT6I uses a 20-pin removable terminal block (RTB). The 1756-IT6I2 uses a 36-pin RTB. Both modules have identical electrical specifications—6 channels, 16-bit resolution, and 250V isolation. If you have existing 36-pin wiring infrastructure, the 1756-IT6I2 may be more convenient. For new installations, either model works. Contact us to confirm which version fits your current setup.

Q6: Can the 1756-IT6I be used for millivolt signal measurement?

A: Yes. The module supports millivolt input ranges of -12 to 78 mV and -12 to 30 mV (high resolution mode). This allows it to measure signals from non-thermocouple sources such as pressure transducers, load cells, and other low-level analog sensors. Configure the channel as "mV" in Studio 5000 rather than selecting a thermocouple type.

Q7: What should I do if all channels show the same temperature offset?

A: A consistent offset across all channels typically indicates a CJC (cold junction compensation) issue. First, check that no heat sources (power supplies, transformers, or hot equipment) are located near the terminal block. Second, verify that the CJC sensor is not damaged. Third, check the module temperature reading in Studio 5000 against an ambient thermometer. If the offset persists, recalibrate or replace the module.

Product parameters

Installation steps

Installation of ControlLogix chassis:

Fix the 1756 Chassis in the control cabinet;

Ensure the chassis is installed levelly and maintain sufficient cooling space.

Inserting modules:

Disconnect the system power supply;

Align the Allen Bradley 1756 IT6I with the slot guide of the chassis;

Push the module along the guide to insert it, making the back connector of the module fully contact the back plate.

Fixing the module:

Confirm that the module latch is locked;

Check if the module is firmly connected to the chassis.

Installing RTB terminal block:

Install the corresponding 20-pin detachable terminal block;

Connect the thermocouple input signal line.

Why Choose us

The company as a professional industrial suppliers, deep rockwell special supply temperature control class module, know that Allen Bradley 1756 IT6I key role on the accuracy of production process. We strictly control the quality of the supply sources, eliminating refurbished, aged, or modules with degraded precision. Each product undergoes signal collection and precision measurement. With sufficient stock and fast delivery, it can meet the requirements of technical modification and replacement of emergency spare parts, and with professional selection, commissioning and answering services, it can help customers stabilize process parameters and improve the production rate of good products.
