Feimu Technology has a wide range of original equipment in stock and is suitable for both new project matching and on-site spare parts replacement needs.
As a senior industrial control supplier, Feimu Technology, all modules full channel signal and communication functions are measured out of the library, eliminating precision attenuation fault parts, ensuring the accuracy and reliability of continuous production data.

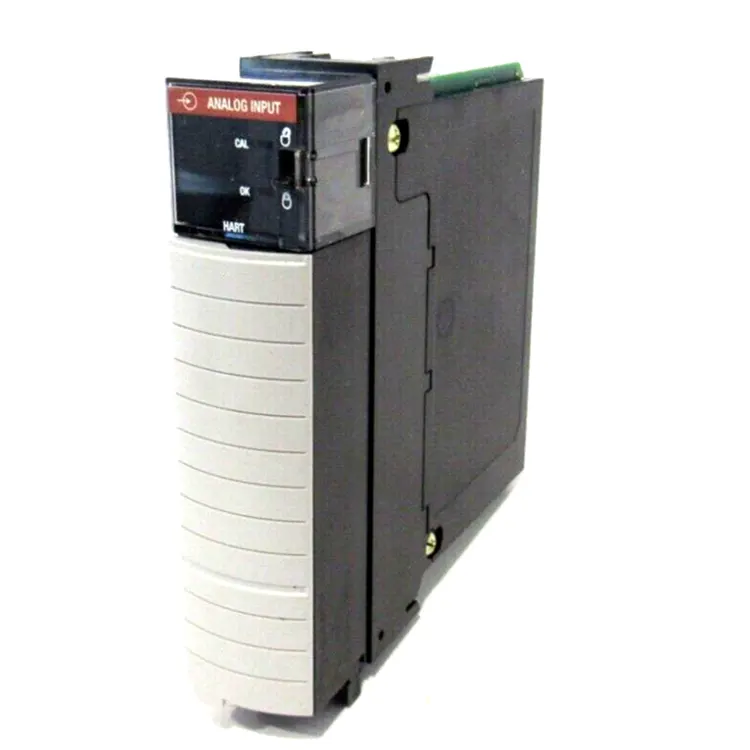

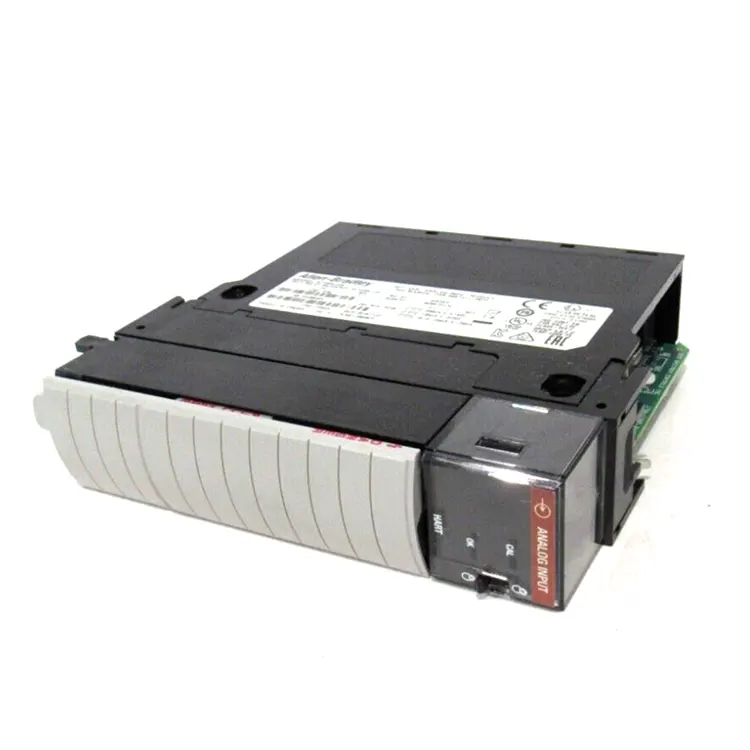

Allen Bradley 1756 IF8H is equipped with 16-21 bit high-resolution acquisition, differential channel anti-interference ability is outstanding, with broken line, over range self-test, without additional HART conversion accessories to read and write instrument parameters. Inferior refurbished modules are prone to signal drift and HART communication interruptions, directly interfering with stable process control.
The Allen Bradley 1756 IF8H is mainly applied in process automation fields such as petrochemicals, power, water treatment, pharmaceuticals, food and beverage, metallurgy, and intelligent manufacturing. It is used to collect analog signals from on-site instruments such as pressure, flow, level, and temperature, and realizes equipment status monitoring, parameter diagnosis, and intelligent management through HART communication.
As a key analog input module in the Control Logix system, the 1756 IF8H not only improves the accuracy and reliability of on-site data collection, but also helps engineers quickly detect equipment abnormalities and optimize production processes. It is an important component for enhancing the stability, operational efficiency, and intelligence level of industrial automation systems.
|
Parameters |
Specifications |
|
Input Type |
Differential Analog Input |
|
Supported Signals |
±10V, 0–5V, 1–5V, 0–10V, 0–20mA, 4–20mA |
|
HART Function |
Supports HART Communication Protocol |
|
Input Impedance |
Approximately 1 MΩ in Voltage Mode; Approximately 250Ω in Current Mode |
|
Channel Isolation |
50V Continuous Isolation Between Inputs |
|
Connection Method |
36-Pin Detachable Terminal (RTB) |
|
Occupied Slot |
1 Slot |
|
Backplane Current Consumption |
Approximately 150 mA @ 5.1V DC |
|
Operating Temperature |
0–60℃ |
|
Storage Temperature |
-40–85℃ |
|
Relative Humidity |
5–95%, Non-Condensing |
|
Protection Level |
Open Type |
|
Applicable Software |
Studio 5000 Logix Designer |
The official usually does not disclose a fixed-year rated life. In actual industrial applications, the ControlLogix series modules, under good environmental conditions and with proper maintenance, typically can operate stably for more than 10 years. The module lifespan is mainly affected by temperature, power quality, environmental pollution, vibration, and long-term operating load.
The HART feature enables the PLC to simultaneously read the digital information of the on-site intelligent instruments through analog signal lines, such as:
Main process variable (PV)
Instrument status information
Equipment diagnostic data
Instrument parameter information
Compared to ordinary analog input modules, it can enhance the equipment monitoring capabilities and maintenance efficiency.
The Allen Bradley 1756 IF8H is typically configured via the Studio 5000 Logix Designer and includes:
The input signal type selection
Channel range set
Filter parameter setting
HART configuration data reading way
Alarm parameters setting
The module supports a variety of input data types, including analog data, analog +HART PV, and HART data organized by channel.
|
Fault Phenomenon |
Possible Cause |
Solution |
|
No Analog Signal Input |
Incorrect wiring or incorrect signal type setting |
Check channel configuration and field wiring |
|
4–20mA Reading Anomaly |
Loop power supply problem or transmitter failure |
Check transmitter power supply and current loop |
|
HART Communication Failure |
Instrument does not support HART or incorrect address configuration |
Confirm instrument protocol and HART settings |
|
Channel Alarm |
Input signal out of range or open circuit |
Check input signal range and wiring connections |
|
PLC Cannot Recognize Module |
Software configuration mismatch or incorrect module setup |
Check and verify Studio 5000 configuration |
Confirm that the ControlLogix rack and power module have been installed and grounded;
Confirm that the installation location has sufficient space and avoid environments with high temperature and strong interference.
Align the Allen Bradley 1756 IF8H with the rack guide rail;
Push it smoothly into the corresponding slot to ensure the module lock is securely engaged;
Confirm the reliable connection of the module to the backplane.
Install matching detachable terminal block (RTB);
Terminals are coded according to application requirements to prevent incorrect insertion.
Connect analog input signals according to the wiring diagram;
Connect on-site instrument signals such as 4–20mA, 0–10V, etc.;
HART equipment needs to ensure that the communication line is properly connected.
1756 - IF8H module is added in the project;
Set the module in slot;
Configure input type, range, filter parameters and HART communication parameters.
Electric test:
Check the status module;
Confirm PLC recognition module;
Verify whether the analog input value and HART device data are normal.
The process industry has strict requirements for the accuracy of analog acquisition and the stability of HART communication. As a company specializing in Rockwell HART modules, Feimu Technology will strictly control the quality of raw materials, avoid using refurbished equipment for repairs, offer prompt delivery of goods, provide synchronous configuration and debugging technical support, and solve the problem of spare parts procurement for process control systems in one step.
