In process industries such as chemicals, water treatment, and energy manufacturing, the accuracy of analog signal acquisition and the efficiency of system commissioning directly impact the production stability of the entire 90-30 PLC control system. Traditional analog input modules currently on the market typically rely on hardware DIP switches or dials for adjustment; this results in complex commissioning procedures and a lack of isolation between high-voltage power circuits and low-voltage signal circuits, making them highly susceptible to electromagnetic interference within the workshop environment. The GE IC693ALG222 breaks away from this traditional hardware-centric control model, utilizing an integrated, software-driven design to simplify the configuration process. Furthermore, it features 1500V RMS opto-isolation protection and a high-precision AD conversion unit, making it ideally suited for deployment in a wide range of demanding industrial environments.
As a specialized supplier, Feimu Technology maintains a ready stock of this specific model, as well as the full range of GE Fanuc industrial control spare parts. Through our supply of genuine components, competitive pricing, and comprehensive one-stop technical support services, we empower system integrators and maintenance teams to simplify commissioning tasks and significantly reduce both procurement and operational costs.

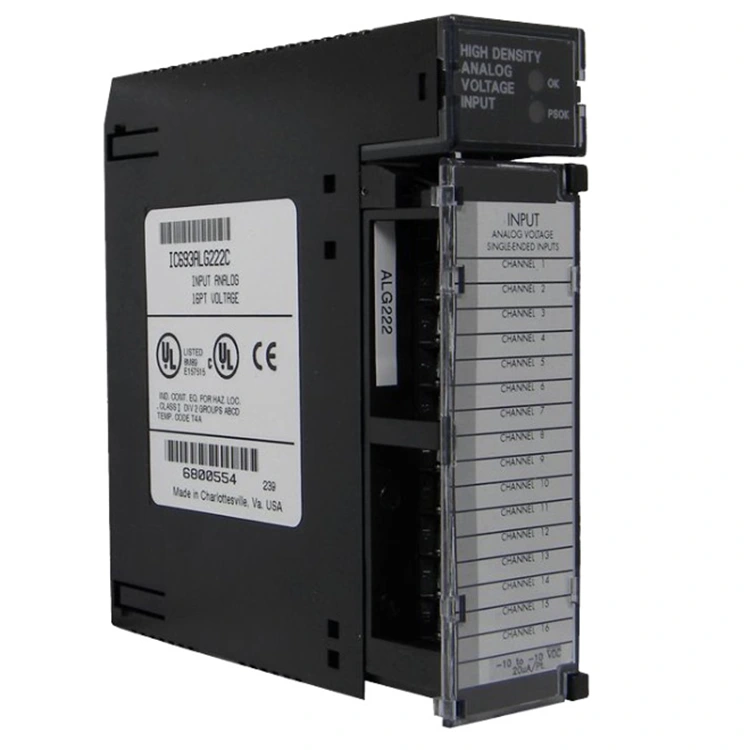

The GE IC693ALG222 comes standard with 16 single-ended analog voltage input channels, enabling the centralized acquisition of voltage output signals from external sensors and their conversion into digital data recognizable by the PLC. Its highly integrated channel design effectively minimizes the number of rack slots required, thereby eliminating the clutter and complexity associated with wiring multiple stacked modules—making it an ideal solution for large-scale automation projects requiring centralized data acquisition from numerous measurement points.
Moving away from the cumbersome hardware knobs and DIP switches found on traditional modules, the GE IC693ALG222 allows for all parameter calibration and functional configuration to be completed with a single click via the accompanying PLC software. This eliminates unnecessary manual steps, lowers the technical barrier for commissioning personnel, and drastically reduces the man-hours required for programming and debugging new projects, as well as for updating parameters on legacy equipment.
The module features a built-in, dedicated protection structure that achieves up to 1500V RMS photoelectric isolation between the field signal input terminals and the PLC backplane logic circuitry. This effectively isolates interference caused by power grid surges, electromagnetic noise, and voltage spikes, thereby protecting the PLC main backplane from damage while ensuring stable, glitch-free analog signal acquisition.
Integrating a high-precision, dedicated A/D conversion chip, the module accurately captures various analog voltage signals—such as those for temperature, pressure, and flow rate—delivering rapid signal conversion response times and extremely low data error rates. It effectively resolves common issues associated with older acquisition modules—such as data lag and value drift—thereby guaranteeing the monitoring accuracy and operational synchronization of the entire control system.
The GE IC693ALG222 utilizes industry-standard removable wiring terminals, combined with an 8-channel partitioned architecture design. During equipment inspection or module replacement, there is no need to disconnect external field wiring; the module can be swapped simply by plugging and unplugging the terminals. This eliminates the risk of wiring errors caused by repeated manual connections and significantly reduces equipment downtime for maintenance.
Leveraging a compact engineering structure and partitioned channel layout, the module precisely controls the space occupied within I/O slots and is fully compatible with standard 90-30 series racks. The overall hardware layout is compact and orderly, helping customers optimize the internal arrangement of control cabinets—making it particularly well-suited for upgrade and retrofit projects involving older cabinets with limited space.
Deeply integrated with GE's proprietary programming software, the system can automatically identify abnormal channels and precisely pinpoint the location of faults. Maintenance personnel can quickly troubleshoot issues such as short circuits, open circuits, and acquisition failures, thereby reducing the Mean Time to Repair (MTTR) and fundamentally enhancing the efficiency of routine equipment maintenance.
From design and manufacturing through to final factory release, the product adheres to rigorous international industrial safety standards. It has successfully passed dual authoritative certifications—cULus—meeting both the US UL 508 standard for industrial control equipment and Canadian CSA safety standards. This ensures full regulatory compliance, allowing for direct deployment in industrial projects throughout North America.
Compliant with the technical requirements of the EU CE Directive for Electromagnetic Compatibility (EMC), this product possesses exceptional resistance to electromagnetic interference. It operates stably over extended periods in complex electromagnetic environments—such as those dense with variable frequency drives (VFDs) and high-power motors—making it suitable for the vast majority of industrial site conditions across Europe and the Americas.
Strictly adhering to the universal international standard IEC 61131-2 for programmable controllers and associated peripherals, the product also holds Australian C-Tick certification. Backed by multiple authoritative certifications, it is well-suited for high-end automation projects across various global regions, allowing for seamless selection in cross-border projects without the need for additional compliance reviews.
Feimu Technology has specialized in the export of GE Fanuc industrial control spare parts for many years. Every GE IC693ALG222 module and accessory shipped from our facility is guaranteed to be 100% original and authentic. Prior to dispatch, each unit undergoes rigorous power-on testing, channel acquisition calibration, and insulation testing to ensure that no refurbished, modified, or defective products ever reach our customers.
Our warehouse maintains a ready stock of the entire GE 90-30, 90-70, RX3i, and RX7i series—including CPUs, I/O modules, communication modules, and power supply modules. In addition to supplying standard, high-circulation models, we also specialize in sourcing discontinued or hard-to-find spare parts, offering a one-stop solution for all our customers' procurement challenges.
We offer highly competitive, discounted pricing directly to our global clientele. Whether for small-scale maintenance purchases or large-volume project stocking, customers can enjoy preferential rates that help enterprises effectively manage their spare parts inventory costs.
Our dedicated team of professional industrial control experts provides a full spectrum of services—ranging from pre-sales product selection and software configuration guidance to remote troubleshooting and recommendations for replacement models for obsolete units. We cater to the diverse operational needs of both new and long-standing customers, ensuring a worry-free procurement experience from start to finish.
Q1: Which control systems are compatible with the GE IC693ALG222?
This module is specifically designed for use with GE Fanuc Series 90-30 PLC racks. It is natively compatible with all CPU controllers within this series, requiring no additional adapter accessories; it can be installed directly into the rack slot and is ready for immediate use, supporting standard voltage signal acquisition applications.
Q2: What field issues can the module's isolation and protection features resolve?
1500V RMS optical isolation effectively isolates high- and low-voltage circuits, preventing transient high-voltage surges in the field from damaging the backplane. Simultaneously, it shields against electromagnetic interference, thereby resolving common faults such as analog signal fluctuations and data acquisition drift. This makes it ideally suited for high-interference environments, such as those found in the chemical and power industries.
Q3: Does replacing an old module require rewiring or reprogramming?
No rewiring is required; the detachable terminals allow for the direct reuse of existing cabling. When replacing a module with the same model, there is no need to rewrite the underlying control program; a simple parameter synchronization is all that is needed to bring the unit online. This significantly reduces the cost of upgrading legacy systems.
Q4: Can you assist in identifying replacement models for discontinued products?
Yes. For older GE Fanuc modules that have been permanently discontinued by the original manufacturer or are currently out of stock, our technical team can analyze the original equipment parameters and data acquisition logic to identify alternative models with fully compatible functions and interfaces. We also provide a comprehensive replacement and commissioning plan.
