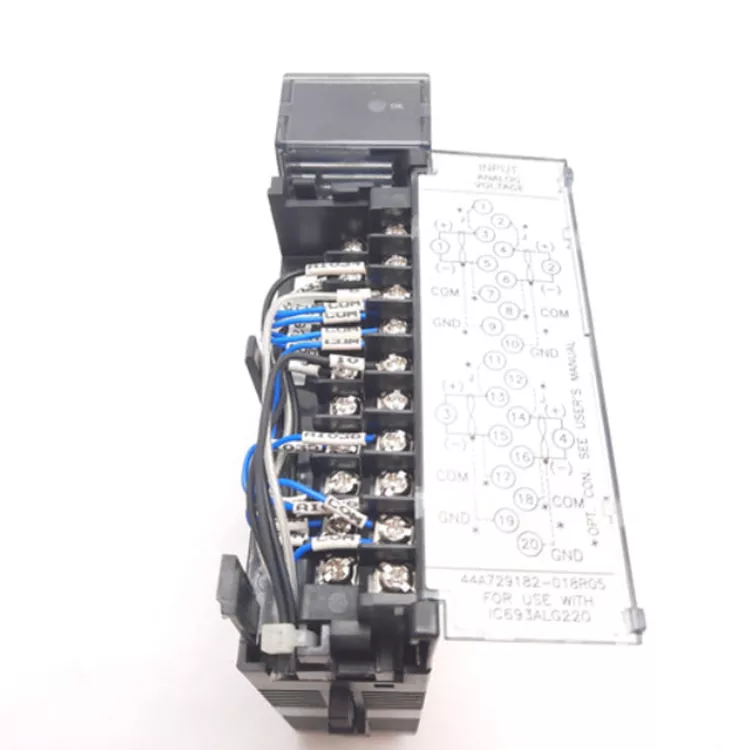

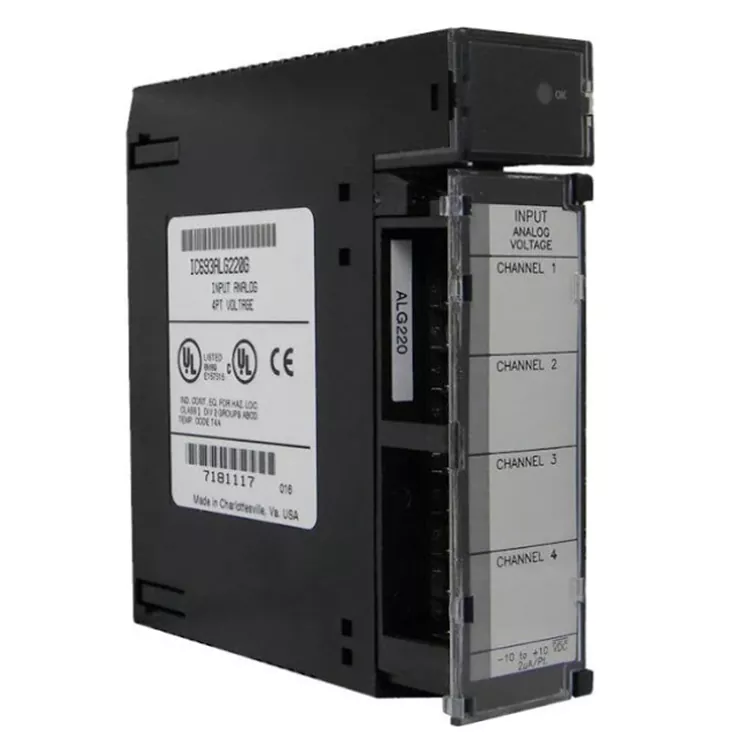

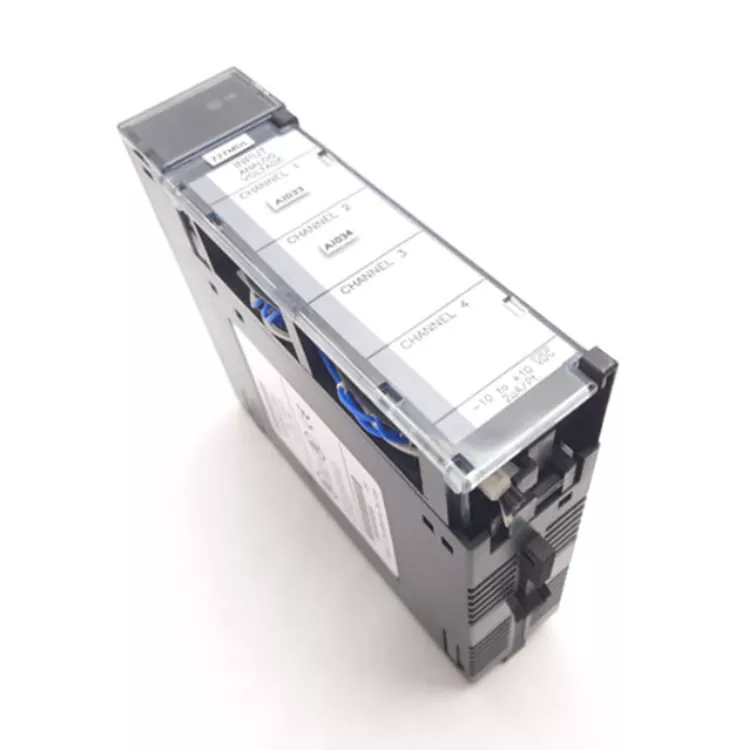

GE Fanuc IC693ALG220

The GE Fanuc IC693ALG220 is a 4-channel voltage-type analog input module specifically designed for the Series 90-30 PLC. It is equipped with a 12-bit high-precision analog-to-digital conversion unit and a 17Hz hardware filtering design, enabling this module to accurately collect analog voltage and current signals from industrial sites.

This module boasts advantages such as high precision, high stability, and strong anti-interference capabilities. These features make it widely used in scenarios such as chemical engineering, machinery, HVAC, and automated production lines, capable of accurately collecting various industrial analog sensing signals such as pressure, liquid level, temperature, displacement, and frequency feedback, and meeting the signal monitoring needs of most small and medium-sized automation systems.

If you need a mature and reliable high-density industrial analog quantity acquisition solution, please contactFeimu Technology. We have the goodsin stockand can supply them to you.

Product advantages

The GE Fanuc IC693ALG220, as a 4-channel voltage-type analog input module, has the following advantages:

1. High stability: It features 1500VAC electrical isolation, effectively resisting ground loops and surge interference; it complies with industrial EMC and seismic standards, supports wide temperature operation, and is suitable for complex and harsh industrial environments.

2. Wide compatibility: It is equipped with a 12-bit ADC for high-precision analog-to-digital conversion, has built-in hardware filtering, is resistant to high-frequency interference, and has excellent linearity; it supports -10V to +10V voltage signals, and the external resistor can be compatible with 4-20mA universal transmitters, suitable for most industrial analog quantity acquisition scenarios.

3. No worries of replacement: It has rich technical documentation and application cases, suitable for the repair of old equipment, system upgrades, and spare parts replacement scenarios, with extremely strong practicality.

4. High compatibility: It is compatible with GE 90-30 series PLCs, with a small footprint per slot, factory calibration is free of debugging, programming and wiring are simple, and it can be quickly put into use.

Application fields

In industrial sites, various sensor analog signal acquisition is widely used in fields such as mechanical equipment, chemical engineering, water treatment, HVAC, metallurgical old equipment, and automated production lines.

It can collect signals from pressure, liquid level, temperature, displacement, flow rate, etc. transmitters, and can also receive analog voltage signals ranging from 10V to +10V from frequency converters and potentiometers. It is widely applied in equipment status monitoring, process data collection, process parameter monitoring, and renovation projects of old automation systems for spare parts of GE Fanuc IC693ALG220.

Technology / Process

The GE Fanuc IC693ALG220 is manufactured using industrial-grade board card technology. It employs multi-layer PCB that can withstand both high and low temperatures, with separate wiring for analog and digital circuits and three-layer anti-corrosion coating. It selects low-temperature drift and high-precision components, is equipped with hardware filtering circuits, and has completed zero-point and gain calibration at the factory.

It is equipped with a 1500VAC isolation device to achieve isolation between the signal side and the logic side. It is also paired with reinforced clamps and screw-pressing terminals for shock resistance and anti-loosening. The entire machine has undergone multiple factory tests including high and low temperature cycling, pressure resistance, accuracy, and EMC.

This product is a discontinued model and does not have modern high-density surface mount technology. Current signal acquisition requires an external 250Ωresistor.

Parameters

What Feimu Does

Feimu Technology does not ship untested modules. Each IC693ALG220 goes through the following verification process before leaving our warehouse.

Visual inspection: Panel color checked. Labels verified. Terminal block screws inspected for smooth operation.

Power-on test: Module installed in Series 90-30 test chassis. Module recognized by the PLC.

Channel test: All 4 channels tested with±10V voltage signals. Readings verified for accuracy.

Isolation test: 1500VAC isolation between field side and logic side verified.

LED test: Module status LEDs checked for correct operation.

Packaging: Module placed in anti-static bag. Sealed in foam-lined carton. Labeled with module number and test date.

FAQ

Q1: What is the working temperature range? Can it be used in a high-temperature cabinet?

Operating temperature: 25℃~+70℃. The internal temperature of the cabinet must not exceed 70℃. Excessive temperature will cause a decrease in sampling accuracy.

Q2: Are the channels isolated from each other?

There is no isolation between channels. Only the signal side of the field and the logic side of the PLC board have 1500VAC isolation. Multiple channels share a common COM terminal.

Q3: Do the modules require hardware setting jumpers?

IC693ALG220 has no hardware jumpers. Voltage and current modes are completely achieved through external wiring and external resistors. The module body has no dip switch.

Q4: How are the shielding layers of multiple transmitters handled? Should they be grounded at both ends or just at one end?

For analog signal shielded cables, it is recommended to ground at one end. The shielding layer should only be grounded at the transmitter side, and the shielding layer at the module side should be left floating. Grounding at both ends easily forms a ground loop, causing drift and fluctuation of the values.
