The GE Fanuc IC200CBL602 provided by Feimu Technology is a VersaMax PLC dedicated rack expansion bus cable. It is used to connect the VersaMax main board, expansion backplane, and remote I/O bus transceiver module to achieve PLC backplane signal transmission, and to expand I/O for multiple racks within the cabinet, with plug-and-play and no wiring required.
It is widely used in conveying line equipment, injection molding machinery, packaging equipment, and assembly line control cabinets, for separating the CPU main rack and the scattered I/O expansion boards. As a professional supplier, we are always ready to answer your inquiries.
|
Length |
2 meters (approximately 6.56 feet) |
|
Connectors |
2 |
|
Operating temperature |
0 to 60 °C |
|
Storage temperature |
-40 to 80 °C |
|
Relative humidity |
5% to 95% (no condensation) |
|
Weight |
Approximately 0.23 kg (0.50 lbs) |
The internal structure of the GE Fanuc IC200CBL602 cable consists of multiple strands of tin-plated oxygen-free copper twisted-pair conductors combined with a PP insulation layer. It features a double-layer shielding structure with an aluminum foil inner layer and a tin-plated copper braided mesh.

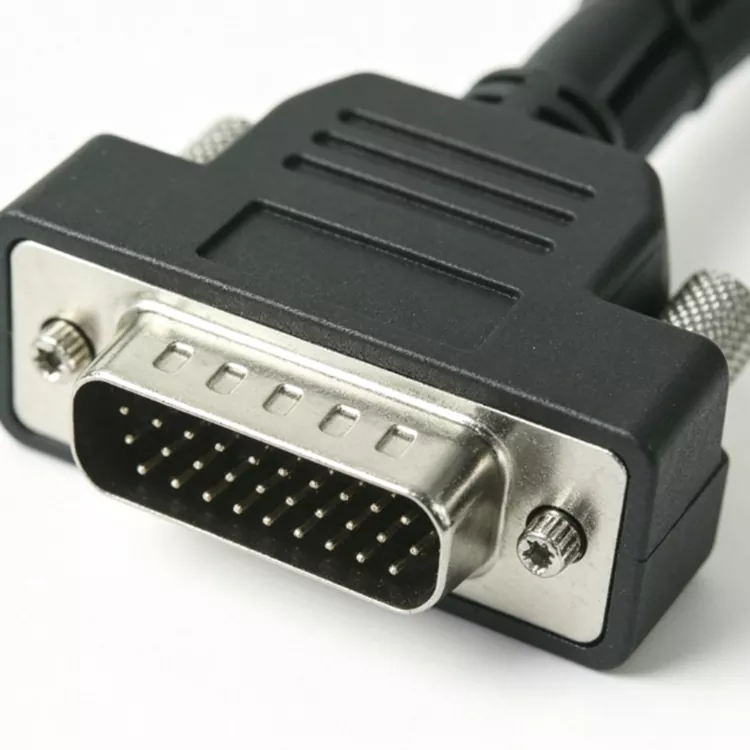

The outer layer is a UL94 V0 flame-retardant and oil-resistant PVC sheath. The connectors at both ends use PBT self-locking housings and phosphor copper-gold plated pins.
After the wire core terminals are crimped, the tail is integrally molded with a buffer protection. The production process includes wire twisting, insulation, shielding coating, sheath extrusion, fixed-length cutting, terminal processing, injection molding, and conductivity, pressure resistance, fatigue, etc. for final inspection.
This series of cables only differ in length specifications. The entire process is designed to resist industrial electromagnetic interference, adapt to vibration conditions, ensure stable backplane bus communication, and prevent plug loosening, internal wire breakage, and other faults.
Connects the main base plate of VersaMax with the expansion I/O base plate, transmits backplane bus signals, and expands the points of PLC input/output modules; Series-connects multiple slot bases to achieve data interaction between CPU, power supply, and digital/analog quantity modules; Used for wiring between ETM sending module and ERM receiving module, to build split remote backplane communication within the control cabinet; Separately installs the CPU main frame and the I/O base plate placed elsewhere to avoid interference areas from frequency converters and power lines, which is the main application of GE Fanuc IC200CBL602.
It is a dedicated cable specifically designed for the VersaMax series. Although it is used for standard industrial connections, to ensure compatibility and reliability, it is recommended to use it only within the VersaMax system.
Yes. Its interior adopts a dual shielding structure, which can effectively resist the common electromagnetic interference (EMI) and inverter interference in industrial environments, ensuring the stability of data transmission.
As a key connection cable within the system, it is recommended to install or remove it while the power is off to prevent potential impacts on the equipment or signals.
GE Fanuc IC200CBL602 cables are commonly counterfeited with inferior materials. Use these checks to verify authenticity.
Connector quality: Genuine connectors have smooth, burr-free surfaces with a distinct locking click. Counterfeits often have rough edges or weak locking mechanisms.
Cable jacket: Genuine cables have a uniform UL94 V0 flame-retardant PVC jacket with clear GE Fanuc branding. Counterfeits often use cheap PVC that is prone to cracking.
Shielding: Genuine cables have double-layer shielding (aluminum foil + tin-plated copper braid). Counterfeits often have minimal or no shielding.
Strain relief: Genuine cables have robust molded strain relief at both connector ends. Counterfeits often have weak or missing strain relief.
Cable flexibility: Genuine cables are flexible yet durable due to the twisted-pair construction. Counterfeits often feel stiff or overly brittle.
Feimu Technology does not ship untested cables. Each IC200CBL602 goes through the following verification process before leaving our warehouse.
Visual inspection: Cable jacket checked for damage. Connectors inspected for bent pins or cracks. Molded strain relief verified.
Continuity test: All conductors tested for continuity. No open circuits or shorts.
Connector fit test: Connectors tested for proper insertion and locking with VersaMax modules.
Shielding test: Shielding effectiveness verified against standard EMI requirements.
Packaging: Cable coiled properly. Sealed in anti-static bag. Labeled with model number and test date.
It should be noted that when installing the GE Fanuc IC200CBL602, it must be kept away from the frequency converter, power supply lines, and high-voltage relay lines to avoid strong electromagnetic interference. The connectors need to be fully inserted and locked with the clip. Poor bus contact can cause I/O disconnection and module errors.
The cables should avoid long-term compression and hard bending. The bending radius during installation needs to meet the standards, and it is only used for the VersaMax backplane dedicated bus and cannot be used as a common communication serial port cable. It is only suitable for ordinary industrial control cabinets and is not supported for direct use in high-risk explosion-proof areas.
