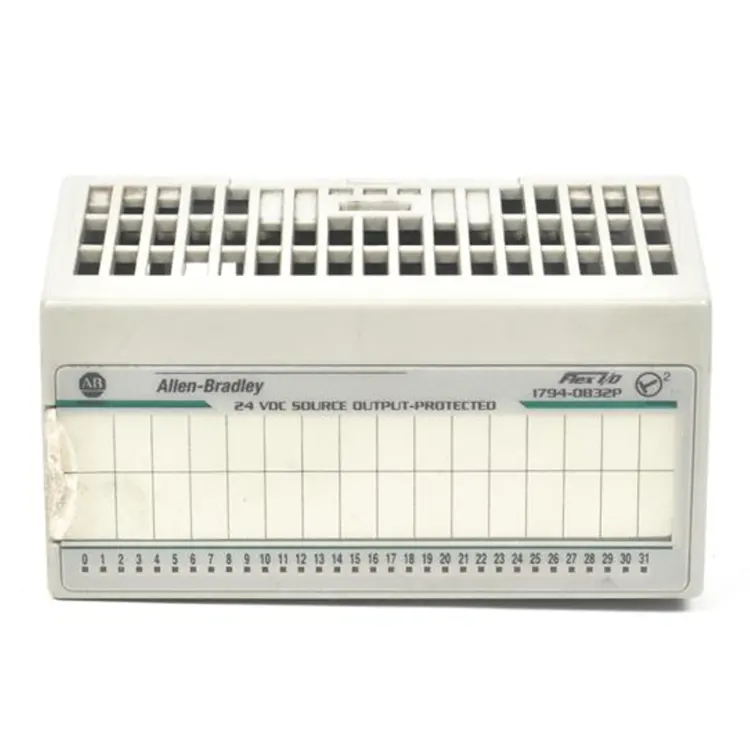

The Allen Bradley 1794 OB32P has two independent circuits, built-in overload protection, equipped with position status indicator lights, supports hot-swappable maintenance, and has strong anti-electromagnetic interference capability. Reconditioned modules on the market are prone to channel damage and protection failure, causing equipment to malfunction and shut down. As a seasoned supplier, Feimu Technology conducts full-point load detection for all modules, eliminating defective products and ensuring stable control of on-site equipment.

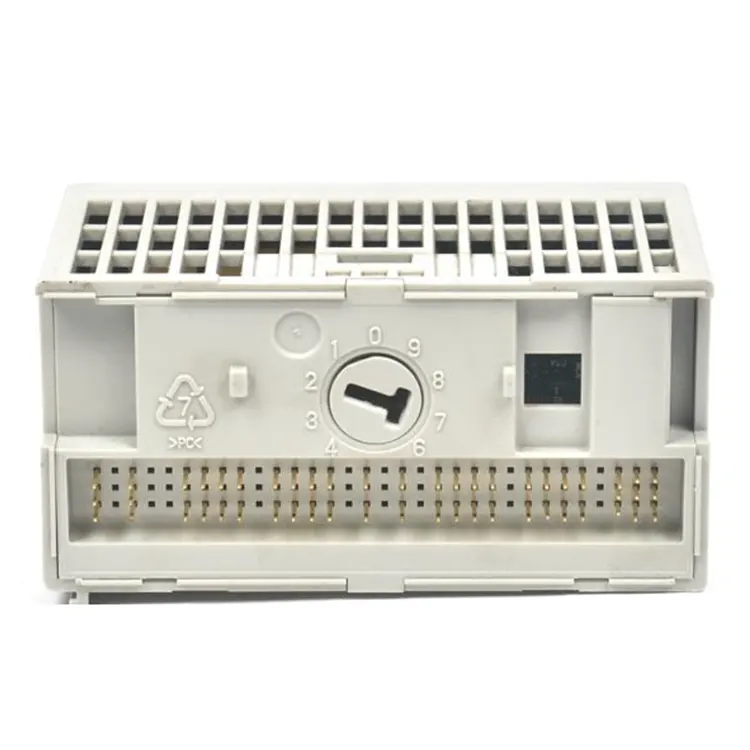

The Allen Bradley 1794 OB32P adopts a high-density modular design, with an integrated optically isolated circuit built-in, which can effectively isolate on-site interference. The plug-in terminal structure is easy to maintain and replace, and significantly improves the wiring efficiency. The design realizes 32 output channels in a compact space and greatly optimizes the layout of the control cabinet.
This module is equipped with high-quality electronic components, featuring excellent resistance to thermal aging and shock. Its designed service life exceeds ten years.Feimu Technology reminds that using the original genuine product can ensure stable output throughout the entire lifecycle and effectively reduce the risk of downtime caused by component aging.
|
Parameters |
Specification |
|
Module Type |
Digital DC Output Module |
|
Output Points |
32 Points |
|
Output Type |
Sourcing Output |
|
Rated Output Voltage |
24V DC |
|
Output Voltage Range |
10–31.2V DC |
|
Maximum Output Current per Point |
500 mA/Point |
|
Maximum Output Current of the Module |
14 A |
|
Output Groups |
2 Groups (0–15 Points, 16–31 Points) |
|
Output Protection |
Electronic Overcurrent / Short-Circuit Protection |
|
Output Voltage Drop |
Maximum 0.5V DC |
|
Off-State Leakage Current |
Maximum 0.5 mA |
|
Surge Current |
2 A (50 ms, Repeatable) |
|
Isolation Voltage |
50V DC Continuous Isolation |
|
FlexBus Current Consumption |
80 mA @ 5V DC |
|
Maximum Power Consumption |
5.3 W |
|
Compatible Terminal Base |
1794-TB32 / 1794-TB32S |
|
Operating Temperature |
0–55℃ |
|
Protection Class |
IP20 |
The Allen Bradley 1794 OB32P model is fully compatible with Flex I/O connectors and mainstream control systems such as ControlLogix, and supports various communication protocols including Ethernet. Its flexible adaptability can meet diverse industrial control requirements when expanding system I/O.
The installation is very simple. This module is installed via rails and the terminals support hot swapping. Just ensure the base is correctly installed and connected to the power supply, then slide the module in and secure it.
As a mainstream model, inventory relatively abundant. Fly for science and technology keep regular stock, often can meet the urgent needs of customers.
It is recommended to check the following:
Whether FLEXBus communication is normal;
Module power supply is stable;
Output common terminal wiring is correct;
Is the module type in the PLC configuration matched?
Is the output load over the 0.5A/point limit?
The Allen Bradley 1794 OB32P can be quickly configured through the RSLogix software, supporting hot swapping and forced output testing. The status indicator lights can directly reflect the operating status. The intuitive debugging interface significantly shortens the project debugging cycle and lowers the technical threshold for engineers.
The high-density output module directly affects the operation of the entire production line. As a reliable industrial control supplier, our company strictly selects original sources, conducts channel-by-channel load performance testing, has fast delivery, and also provides base selection, wiring simplicity technical assistance, so as to solve the distributed I/O procurement needs smoothly. Our aim is to solve the procurement problems of Allen Bradley products for customers, achieving mutual benefit and win-win results with customers.
