Allen Bradley 1785 L40E

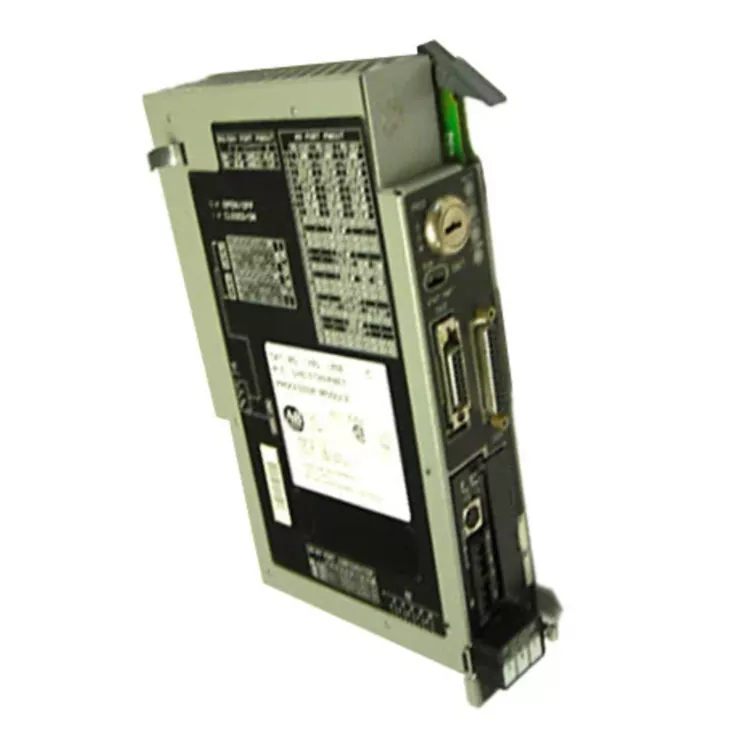

The Allen Bradley 1785 L40E is equipped with 48K program memory and has an independent Ethernet communication interface. It is compatible with DH+ and remote IO networking and supports large-capacity point control. It is one of the few high-end models with a network port in the PLC 5 series. It is widely used in large-scale old automatic control systems in industries such as chemical engineering, power plants, metallurgy, and automobiles. As a senior cross-border industrial suppliers, Feimu Technology focus on the class out of print production module, screening, testing and supply security equipment compatibility, stable communications, computer use.

Installation Process

Power check:

Turn off the power supply of the PLC system and confirm that the rack and communication line are in a safe state.

Install processor module:

Insert the Allen Bradley 1785 L40E PLC - 5 corresponding rack slot, fixed module and connect back.

Connection communication lines:

Based on the system demand for connecting Ethernet and DH + or Remote I/O communication interface.

Power on Test:

Open the power supply, check the CPU status indicator light, make sure the module normal boot.

Application configuration:

Use RSLogix 5 to connect the processor, download the program and check the I/O and communication parameters.

Run the test:

Verification of PLC communication and control functions for program execution and site, confirm the normal operation of system.

FAQ

Q1. What data needs to be backed up before replacement?

PLC user program;

Data table files;

I/O configuration parameters;

Communication network settings;

Processor configuration files.

Q2. Which communication methods are supported?

Support Ethernet, DH+ (Data Highway Plus), Remote I/O, and RS-232/422/423 serial communication. It can connect to the upper computer, remote I/O and other automation devices.

Q3. What programming software is used?

Use RSLogix 5 to create, upload, download and monitor the program, and use RSLinx for communication configuration.

Q4. How to troubleshoot when communication with PLC fails?

Check the Ethernet/DH+ communication cable connection;

Confirm the network node address setting;

Check the RSLinx driver configuration;

Confirm if the CPU status indicator light is normal;

Check the communication module and network parameter configuration.

Q5. How to handle when the CPU fault light is on?

Check the processor fault code;

Confirm if there are any errors in the program;

Check the battery status;

Try to reload the valid program;

If necessary, conduct CPU diagnostic testing.

Technical Specifications

Core advantage

1. Integrated Ethernet communication

Supports industrial Ethernet connection, facilitating data exchange with upper computers, monitoring systems, and other automation equipment.

2. Compatible with PLC-5 control architecture

Can be directly used for maintenance of existing PLC-5 systems, reducing equipment upgrade costs.

3. Powerful I/O management capability

Supports large-scale digital and analog I/O expansion, suitable for complex control applications.

4. Multi-network support

Compatible with Ethernet, DH+, and Remote I/O communication methods, enhancing system integration flexibility.

5. Extends equipment lifecycle

Suitable as a replacement part for old PLC-5 systems, helping to maintain continuous operation of production equipment.

Application fields

The Allen Bradley 1785 L40E is mainly applied in:

Automation production line control

Automobile manufacturing equipment

Packaging machinery systems

Factory data acquisition systems

Process control equipment

PLC-5 old system maintenance projects

Typical application:

Connects the PLC control system and the upper monitoring equipment via Ethernet network to achieve production data transmission and equipment status monitoring.

Why choose us?

After-sales and services

Provide:

Product compatibility confirmation

PLC-5 system installation guidance

Ethernet communication configuration support

RSLogix 5 debugging guidance

Fault analysis support
