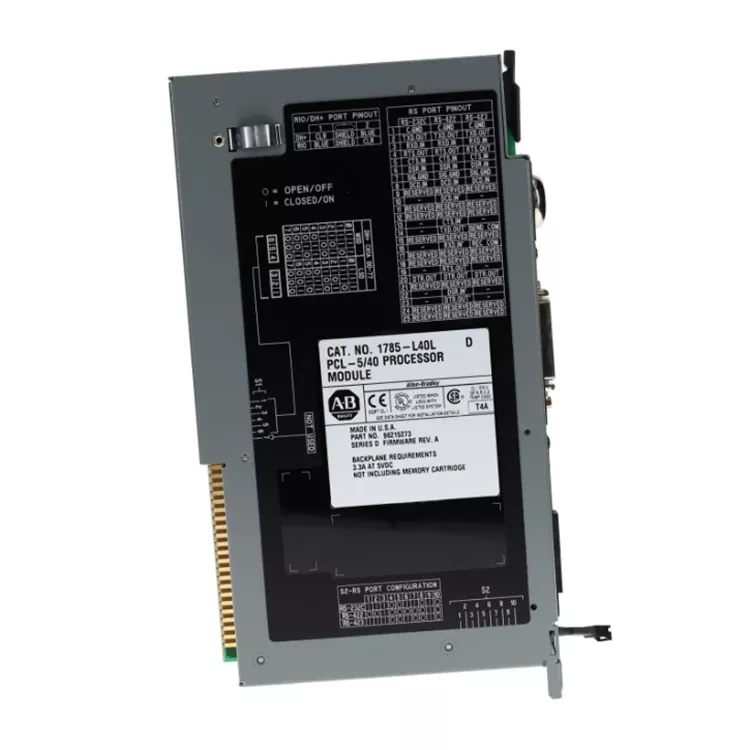

Allen Bradley 1785 L40L

The Allen Bradley 1785 L40L is equipped with 48K bytes of SRAM program memory and supports a maximum of 4096 points of I/O control. It is compatible with DH+, remote I/O, and RS232 communication interfaces and can be expanded to up to 61 I/O racks. It is suitable for large and medium-sized field control systems with complex logic and scattered sites. As the original supplier, Feimu Technology has conducted comprehensive tests on the in-stock modules, including hardware aging, communication connection, and logic reading and writing, to eliminate common problems such as battery leakage and backplane contact aging that occur in discontinued products. The modules can be directly used in the existing 1771 framework without the need for additional modification of the original project program.

Core Advantages and Selling Points

PLC-5 mature architecture: Suitable for traditional industrial automation control systems.

Stable control performance: Satisfies the requirements of continuous industrial control.

Strong program processing capability: Applicable to medium and large-sized control programs.

Easy maintenance and replacement: Can be used for maintenance of existing PLC-5 system processors.

High lifecycle value: Extends the usage period of the original equipment through spare parts replacement.

The internal structure

Allen Bradley 1785 L40L internal mainly consists of the following parts:

The CPU processor unit: PLC control program and logic operation.

Memory unit: Stores user programs, data tables, and system operation data.

Communication circuit: Responsible for network data exchange of DH+, Remote I/O, etc.

Backplane interface: - 5 frame connected with PLC, complete power supply and data transmission.

Status indication circuit: through the LED display CPU running, fault and state of communication.

Power supply and protection circuit: to provide a stable power supply module internal circuit and basic protection.

Structural relationships:

CPU → Memory → Communication/control circuit → Backplane interface → PLC-5 system

Important Parameters

Installation Process

System power off: turn off PLC-5 rack power and confirm that the equipment is completely power off.

Module installation: Insert Allen Bradley 1785 L40L into the corresponding rack slot and fix it.

Connect communication: Connect DH+ or Remote I/O communication lines according to the system configuration.

Power on check: restore power and observe whether the CPU status indicator is normal.

Application configuration: use RSLogix 5 connected to the processor, inspect or download control program.

Run test: confirm that CPU, I/O and communication status are normal and put into operation.

FAQ

Q1. What should be done if the module fails to operate normally after power-on?

Check the rack power supply, module installation status, CPU indicator light, program status and battery status.

Q2. How to troubleshoot DH+ communication issues?

Check the communication cable, node address, network connection, terminal configuration and RSLinx communication driver.

Q3. What data should be backed up before replacement?

It is recommended to back up the PLC program, data table, I/O configuration and communication parameters.

Q4. How to validate module function normal?

Perform power-on startup, CPU running, communication, program reading and writing, and continuous running tests.

Why did you choose us

Feimu Technology, as a professional industrial control spare parts supplier, has been deeply involved in the field of Rockwell discontinued PLC spare parts for many years. For rare discontinued modules like Allen Bradley 1785 L40L, we have established a complete spare parts selection and inspection process. We only select original factory disassembled good products, conduct comprehensive testing including power-on, communication, and load tests, to avoid potential aging hazards of components, and directly solve the problem of spare parts supply interruption for old production lines.

There is no need for a long original factory ordering cycle. The spare parts can be delivered quickly in stock. It is suitable for emergency repairs and spare parts reserves of old chemical and manufacturing production lines. The shipment comes with a test report and provides technical support for after-sales service. It can be supplied for domestic and international projects, avoiding the traps of market refurbished and counterfeit products, and reducing production losses caused by equipment downtime for customers.
