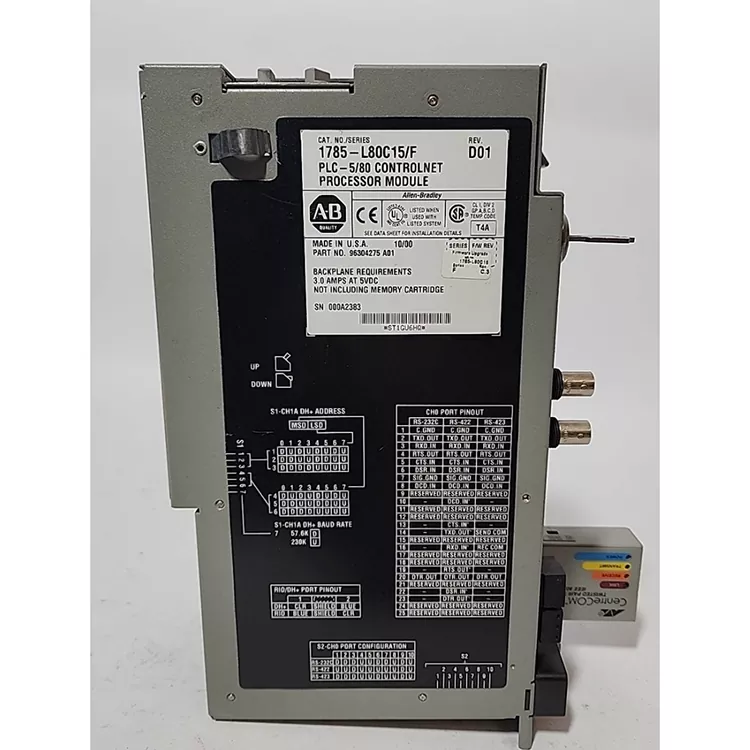

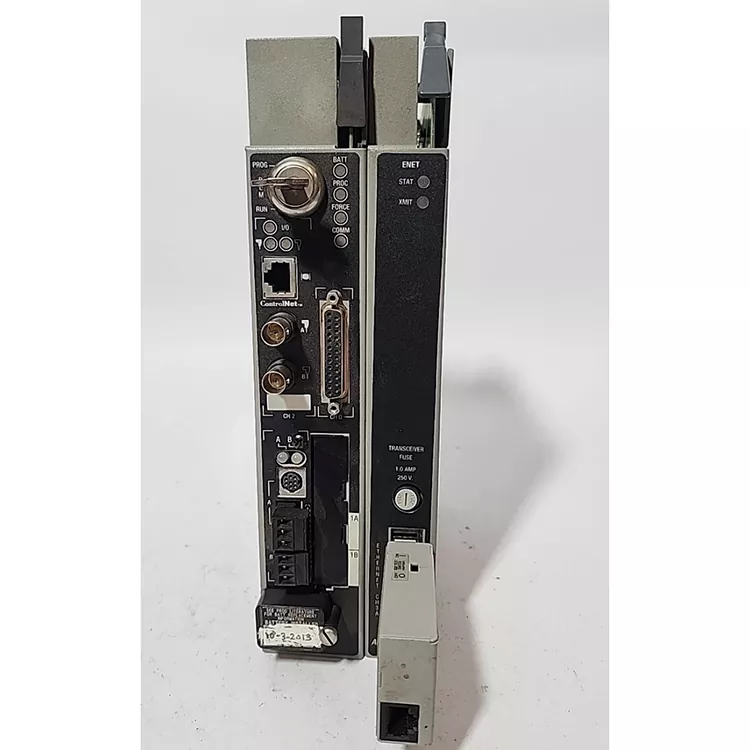

Allen Bradley 1785 L80C15

The old production line was upgraded from DH+ to ControlNet. The most troublesome part was that the program needed to be rewritten and a new set of devices had to be installed. Feimu Technology, as a high-quality supplier with a long history of specializing in industrial control upgrades, is well aware of this hassle. This Allen Bradley 1785 L80C15, with a PLC-5 architecture, retains the original essence of the program and can directly transfer without the need for rewriting; it has a built-in ControlNet 1.5 high-speed interface with a 0.5ms deterministic scan, and can operate in a mixed network setup with both old and new networks; with 100K of RAM and 125 chassis expansions, the upgraded performance can even reach a higher level.

For the transformation of old production lines in industries such as automobiles, metallurgy, and chemicals, simply replacing the processor will do the job.

Technical Specifications

Core Advantages and Selling Points

1. High-performance PLC-5 control capability

The Allen Bradley 1785 L80C15 belongs to the PLC-5/80 series processor and is suitable for complex control tasks and large-scale automation applications. Advantages:

Support for large-scale control programs

Suitable for multi-device collaborative control

Provides stable data processing capabilities

2. PLC-5 system compatibility maintenance

For PLC-5 production equipment that is still in operation:

No need for overall control system upgrade

Retain original control logic

Reduce equipment renovation costs

Applicable to:

Maintenance of old production lines

Replacement of discontinued models

Extension of industrial equipment lifecycle

3. Professional model matching support

Due to the large number of PLC-5 series models, before purchasing, it is necessary to confirm:

Processor model

PLC rack type

Communication method

I/O configuration

Program compatibility

Provide professional selection support to reduce the risk of purchasing errors.

FAQ

Q1.what is the difference between 1785 L80C15 and 1785 L80B?

Both belong to the PLC - 5/80 series processors, but the specific differences involved hardware version, communication configuration and application environment, should confirm according to the system configuration.

When selecting, one should check: the original processor model; communication network; system configuration; program compatibility.

Q2. What communication modes are supported? The main support PLC - 5system communication, including:

The Data Highway Plus (DH +)

Remote I/O

The actual support depends on the system architecture.

Q3. What software is used for programming?

Use RSLogix 5 software for:

Program editing

Upload/download

Online monitoring Fault diagnosis

Q4. Do we need to rewrite the program after the replacement?

Usually, there is no need to redevelop the program.

If there is a backup program:

Download the original PLC program,

Set the communication parameters,

Check the I/O configuration,

Perform a running test;

Then the system can be restored.

Q5. How to determine if there is something wrong?

Check the CPU state of lamp

Test the PLC communication

Verification program run

Check the I/O response

The inspection process

Appearance check:

Confirm the product model, label, shell, interface is complete, no obvious damage.

Model validation:

Check the Allen Bradley 1785 L80C15 model, hardware information and PLC - 5 system compatibility.

Electric test:

Check the module power status, CPU running status and indicator light display.

Feature test:

Test running, application processor, speaking, reading and writing and PLC communication function.

Communication test

Verify that DH+, Remote I/O and other communication connections are normal.

Shipment Check:

Record test results, product photographs and anti-static, shockproof packaging shipments.

Installation Process

System to confirm:

Confirm that PLC-5 rack, power module, communication network and module model match.

Power operation:

Turn off the power supply of the control system to ensure a safe installation environment.

Module Installation:

Insert the 1785 L80C15 processor module PLC - 5 frame corresponding to the slot, and fixed connection.

The line with communication

Check back connection, confirm the DH + or Remote I/O communication lines connected correctly.

System power on:

Turn on the power and check whether the processor status indicator is normal.

Application configuration and test:

Use RSLogix 5 to connect to the processor, download programs, and check communication and control functions.

Run validation:

Confirm the CPU running status, I/O response and device operation, and complete the installation.

Company guarantee

When upgrading the discontinued processor, what are the most common problems? The company conducts three verifications for each Allen Bradley 1785 L80C15 before each shipment: real-time testing of the old program compatibility, full testing of ControlNet networking communication, and 72-hour continuous operation stress testing to ensure that the program can run, the network can connect, and the operation is stable.

The genuine source can be traced, and if there is a quality problem within the warranty period, it can be directly replaced. Technical engineers provide free program transplantation and networking guidance. Choose a reliable supplier, and the production line upgrade is guaranteed.
