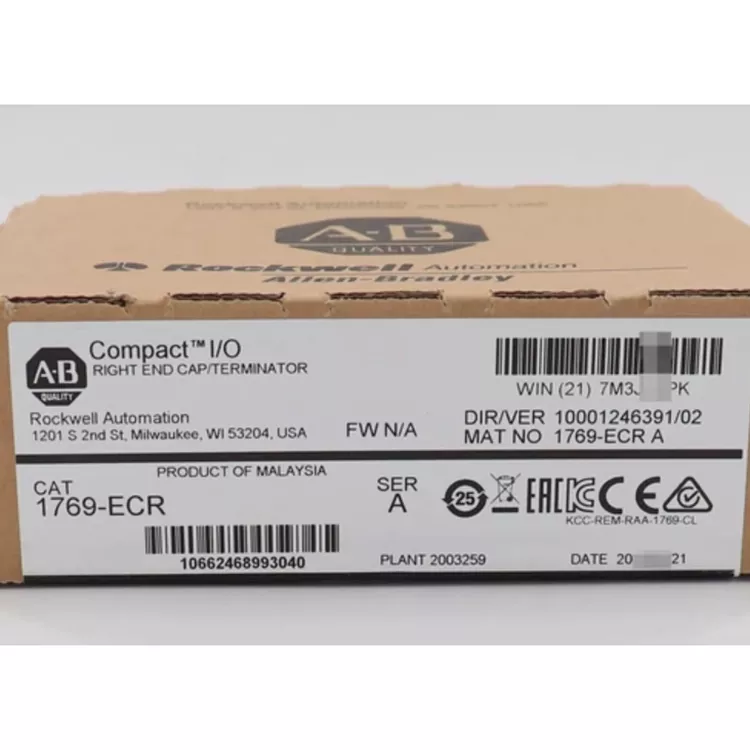

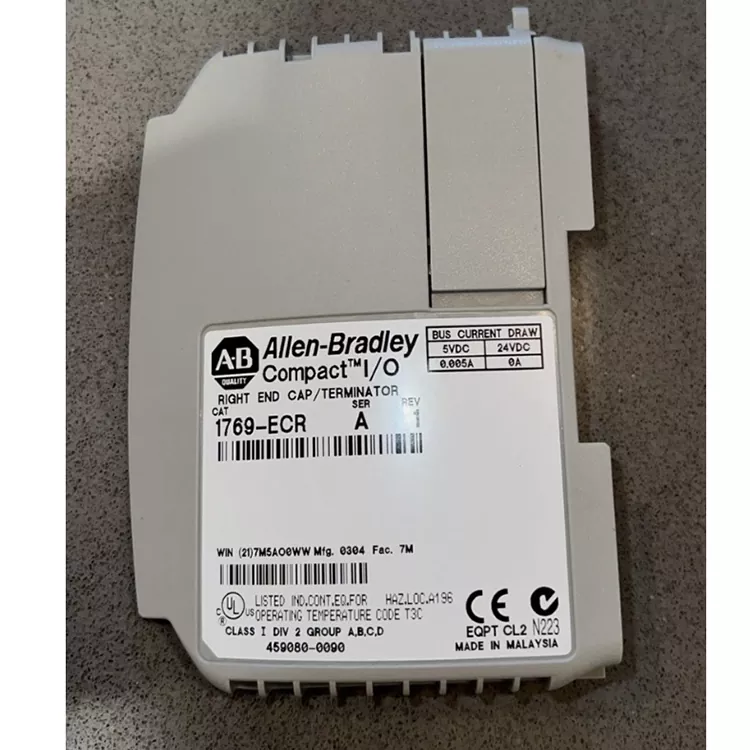

Allen Bradley 1769 ECR

The Allen Bradley 1769 ECR is located on the right side of the 1769 I/O module and is used to complete the FlexBus bus terminal matching, ensuring the integrity of the backplane signals. It is widely applied in overseas manufacturing, water treatment, and packaging inventory automation equipment. As a professional supplier targeting overseas markets, Feimu Technology has completed backplane identification and bus connection detection for all incoming products. It screens out goods with aged or damaged contacts and refurbished ones. Once received, these products can be directly assembled and used in the factory, meeting the requirements for rapid repair and replacement by overseas factories.

Key Parameters

Installation Procedure

1. The system confirmation and Allen Bradley 1769 ECR and CompactLogix 1769 Compact I/O system matching.

2. Disconnect the power to shut down power controller and I/O system, avoid the power operation.

3. Determine the installation position and install the ECR 1769 throughout the 1769 the most the right side of the end of the I/O module group.

4. The module connection - 1769 bus connector, will push and locking fixed end cover module.

5. Check the install state to confirm the cover and the last one I/O modules connected closely, card buckle lock is normal.

6. To restore the power supply, the system is powered on check CompactLogix controller and I/O state.

7. The function verification to make sure you identify the I/O controller is properly configured, communication system and the running status to normal.

The central role

1769 I/O bus terminal protection: installed on the system the most right, complete the system bus terminal connection.

Guarantee the stability of communication: to prevent the Compact I/O bus communication anomalies caused by open at the end.

Simplify the system extension: suitable for modular CompactLogix system installation.

Easy maintenance: simple structure, quick installation and replacement.

FAQ

Q1. Whether to belong to the I/O modules?

It isn't. Allen Bradley 1769 ECR does not provide digital, analog or communication function, is only used to protect system structure and the bus terminal.

Q2. If there is no installation, can have what effect?

1769 I/O bus may not be able to correct termination, may cause the controller can't identify the I/O configuration, communication exception or system failure.

Q3. When installation, do you need the software configuration?

Don't need to separate the software configuration. It belongs to the hardware terminal component, the system automatically completes the bus connection after the installation is correct.

Q4. Can it be installed while powered on?

Is not recommended. Install or remove the former should shut down the system power supply, avoid the damage module or control system anomalies.

Q5. How can one determine if the installation is normal?

Check if the module is firmly inserted, if the connectors are fully engaged, and confirm the I/O system has no faults through the CompactLogix controller diagnosis.

Why choose us

We focus on the global supply of scarce spare parts for Rockwell Compact I/O series, strictly control the supply sources, and prevent counterfeit and refurbished products from flowing out. Each item comes with a test record and supports multiple channels of international logistics. It can be matched with a complete set of foreign trade customs documents. We are familiar with overseas equipment maintenance scenarios and can provide basic technical answers to help overseas customers quickly handle bus terminal error reports and reduce equipment downtime.

Application fields

Industrial automation production lines

Packaging machinery equipment

Mechanical equipment control systems

Material conveying systems

Industrial renovation and maintenance projects

Customer cases and evaluations

An overseas manufacturing factory had a right end cover damage on the I/O group, and the system continuously reported backboard faults. The I/O site could not recognize. The Fumei Technology purchased the original 1769 ECR and completed the installation through cross-border delivery. The backboard communication returned to normal, and the fault was directly eliminated.

Customer: It is difficult to buy reliable original terminal covers in the market. Receiving them directly enables us to use them. This helped us solve the troublesome problem of I/O backboard error reports.

Method for determining authenticity after receipt

1. Check product labels

Confirm model identification as Allen Bradley 1769 ECR.

Check the Allen Bradley/Rockwell Automation logo, fonts, label printing quality.

Check model information is consistent with purchase order.

2. Check the appearance process

Check module shell color, edge, buckle and mold details.

Check for any re-spraying, label coverage, disassembly or repair marks.

The genuine product usually has regular workmanship, no obvious burrs, deformation or splicing marks.

3. Check the connection structure

Check whether the connection terminals of the 1769 bus are complete.

Confirm that there is no bending, oxidation and ablation of the connecting pin.

Check whether the clasp mechanism is normal.

4. Installation matching verification

Install the 1769 ECR on the rightmost position of the CompactLogix 1769 I/O system.

Check if the module is tightly connected to the adjacent I/O module.

Confirm that the system structure is installed correctly.

5. Verify system operation

Check CompactLogix controller status after power on.

Verify that there are no abnormal alarms in the I/O configuration.
