Industrial analog signal acquisition often presents practical challenges, such as weak signals susceptible to interference, reading fluctuations caused by ground potential differences, difficulties in adapting to diverse operating conditions, and system-wide disruptions resulting from single-channel failures. Standard analog modules—often limited by single operating modes, poor interference resistance, and limited adaptability—frequently fail to meet the requirements of precision production control. The Allen Bradley 1756-IF16 addresses these pain points through features like multi-mode input switching, independent channel configuration, and hardware-based shielding and isolation, striking a balance between versatility and specialized performance.
Leveraging extensive experience in the industrial control spare parts sector, Feimu Technology focuses on sourcing genuine products rather than manufacturing hardware. Through rigorous inbound inspections, standardized outbound verification, and hands-on technical support, we help customers avoid common procurement issues—such as counterfeit or substandard goods, compatibility challenges, and high maintenance costs—while supporting a wide range of scenarios, including new system integration, legacy equipment replacement, and system capacity expansion.
| Attribute | Specification |
| Product Series | ControlLogix I/O |
| Module Type | Analog Input Module |
| Input Points | 16 points |
| Input Type | Voltage / Current |
| Input Range | ±10V, 0-10V, 0-5V, 0-20mA |
| Input Channels | 16 Single-ended |
| Differential Mode | 8 Differential |
| High-Speed Mode | 4 Differential |
| Resolution | 16 bit |
| Conversion Method | Sigma-Delta |
| Isolation Voltage | 250V Continuous Isolation |
| Connection Method | 36 Pin RTB |
| Installation Location | ControlLogix Rack |
| Power Consumption | Approximately 2.3W (Voltage Mode) |
| 5.1V Current Consumption | Approximately 150mA |
| 24V Current Consumption | Approximately 65mA |
| Weight | Approximately 0.22kg |
1. High-Precision A/D Conversion for Low-Level Signal Acquisition
The Allen Bradley 1756-IF16 features an industrial-grade, high-precision A/D conversion chip with acquisition algorithms optimized for weak analog signals found in industrial environments. It accurately captures low-amplitude voltage and current signals prone to attenuation, eliminating the distortion and value fluctuations often seen in standard modules. This ensures fundamental acquisition accuracy, making it suitable for a variety of precision sensing and monitoring applications.
2. Comprehensive shielding and isolation to eliminate electromagnetic interference
The module employs a rigorous shielding and isolation structure that physically separates field signal acquisition channels from PLC logic control circuits. This hardware-level isolation blocks electromagnetic interference from variable frequency drives (VFDs), high-power motors, and line noise, effectively resolving common issues such as analog signal drift and data inaccuracy in complex operating environments.
3. Thickened gold-plated backplane for stable communication
The backplane bus connector features a thickened gold-plating process, offering excellent conductivity, oxidation resistance, and durability against repeated mating cycles. Designed for long-term compatibility with ControlLogix racks, it maintains stable bus communication, preventing contact issues or communication interruptions caused by repeated insertion/removal or prolonged operation in aging racks.
4. Multiple wiring modes compatible with various sensors
Supporting single-ended, differential, and high-speed wiring modes, a single module accommodates standard sensors, long-range sensing equipment, and high-speed dynamic signal devices. It adapts to diverse field conditions without hardware changes, significantly reducing the variety of spare modules required and effectively easing inventory pressure.
1. Single-ended input mode (16 channels)
Suitable for standard applications where the sensor and module share a common ground. It enables the use of all 16 acquisition channels for maximum channel utilization. Primarily used for general process control and standard analog signal acquisition (e.g., temperature sensors), this is the standard wiring mode for routine projects.
2. Differential input mode (8 channels)
Designed for applications involving ground potential differences, long wiring distances, or complex electromagnetic environments. It effectively eliminates ground loop interference and resolves reading fluctuations caused by long-cable transmission, making it ideal for outdoor long-range sensing and equipment monitoring in high-noise workshop environments.
3. High-speed input mode (4 channels)
Focused on ultra-high signal update rates, this mode is specifically designed for rapidly changing dynamic signals. It meets the stringent real-time requirements of applications such as motion control and high-speed process parameter monitoring, ensuring signal synchronization and zero data latency during high-speed operations.
1. Compatibility with Mainstream Configuration Software
The module supports configuration via two mainstream official software packages—RSLogix 5000 and Studio 5000 Logix Designer. It is compatible with the vast majority of ControlLogix system architectures without requiring additional adapter plugins, ensuring seamless integration and aligning with engineers' standard programming and debugging workflows.
2. Independent, Granular Channel Configuration
Each channel allows for independent configuration of signal type, measurement range, filter frequency, alarm thresholds, and engineering scale calibration parameters. This enables tailored adaptation to diverse sensors and signal parameters without requiring uniform settings for the entire unit, making it ideal for complex projects involving mixed sensor types.
3. Customizable Sampling Rates for Specific Operating Conditions
Signal update rates can be adjusted on demand, featuring built-in Real-Time Sampling (RTS) settings. Engineers can flexibly tune parameters based on field equipment operation cycles and process precision requirements, balancing data acquisition accuracy with system efficiency to suit a wide range of control scenarios, from high-speed to low-speed applications.
In a wastewater treatment automation system, the Allen-Bradley 1756-IF16 captures real-time analog signals from field pH sensors and transmits the high-precision converted data to the ControlLogix PLC. Based on preset process parameters, the PLC performs calculations to automatically control the start/stop and operating frequency of dosing pumps, precisely regulating the wastewater pH level. This fully automated closed-loop control process replaces traditional manual testing and adjustment methods, thereby reducing labor and maintenance costs while significantly enhancing the stability and standardization of the wastewater treatment process.
1. Routine Maintenance Protocols
The module should be housed in a sealed, dry electrical control cabinet with a focus on moisture protection, as moisture in the terminal area can easily cause analog signal drift. Regularly check the tightness of wiring terminals; analog signals are highly sensitive to contact resistance, and loose connections can directly lead to data anomalies and signal distortion.
2. Channel Troubleshooting Techniques
If a single channel exhibits data anomalies or "out-of-range" errors, there is no need to replace the module immediately. Instead, first swap channel wiring and verify software configuration parameters. Most faults stem from sensor issues, wiring errors, or parameter mismatches; ruling out peripheral problems before diagnosing a hardware failure prevents unnecessary replacement costs.
3. Long-term Storage Requirements
For long-term decommissioning, disconnect the power supply and clean dust from the module's surface. Place the module in an anti-static, sealed bag and store it in a dry, temperature-controlled environment free from corrosive agents and strong electromagnetic interference. This effectively prevents pin oxidation and circuit degradation due to moisture, ensuring stability for future deployment.
1. Terminal Block Selection Specifications
The Allen Bradley 1756-IF16 does not include a terminal block; a 36-pin RTB (Removable Terminal Block) accessory must be selected separately. Common compatible models include: the 1756-TBCH (cage-clamp spring terminal), which allows for rapid wiring without a screwdriver; and the 1756-TBS6H (screw-clamp terminal), suitable for standard industrial wiring applications. Selection should be based on specific on-site operational and maintenance needs.
2. Standardized Wiring Procedures
Use shielded twisted-pair cables for analog signal transmission, grounding the cable shield at only one end of the module. Maintain a minimum separation of 30 cm between analog signal cables and power lines to prevent interference from power circuits. Use wire gauges between 0.5–1.5 mm² (22–16 AWG) with a standard stripping length of 8–10 mm to ensure secure connections and reliable contact.
3. Studio 5000 Standard Configuration Workflow
Step 1: Add the 1756-IF16 module to the software's I/O configuration tree. Step 2: Select the signal type (voltage/current) and measurement range for each channel. Step 3: Configure the input mode (single-ended, differential, or high-speed) based on application requirements. Step 4: Enable digital filtering and set high/low alarm thresholds as needed. Step 5: Download the configuration to the controller and verify that channel readings are normal before putting the system into operation.
1. PWR (Power) Indicator Status
A steady green light indicates normal module power supply; no action is required. If the indicator is off, there is no power; check the ControlLogix system power status and inspect the backplane connection for looseness or faults.
2. "OK" Status Indicator
A solid green light indicates normal operation without faults; a solid red light signifies a hardware failure or configuration error—try power-cycling to reset, but if the fault persists, the module must be replaced. A flashing light indicates the module is in "awaiting configuration" mode; normal operation can be restored by downloading the appropriate configuration program.
3. Channel Status Indicators
A solid green light indicates correct channel configuration and accurate signal acquisition; a solid red light indicates an out-of-range signal or a channel anomaly, requiring a step-by-step check of the sensor range, wiring status, and software configuration parameters.
1. Exterior and Housing Details
Genuine units feature the standard ControlLogix series "greige" (grey-beige) housing, characterized by uniform color and a smooth, high-quality finish; counterfeits often exhibit color discrepancies, abnormal surface gloss, or rough casing textures. Genuine modules weigh approximately 0.22 kg with consistent weight distribution, whereas counterfeits are typically lighter and feel flimsy or poorly constructed.

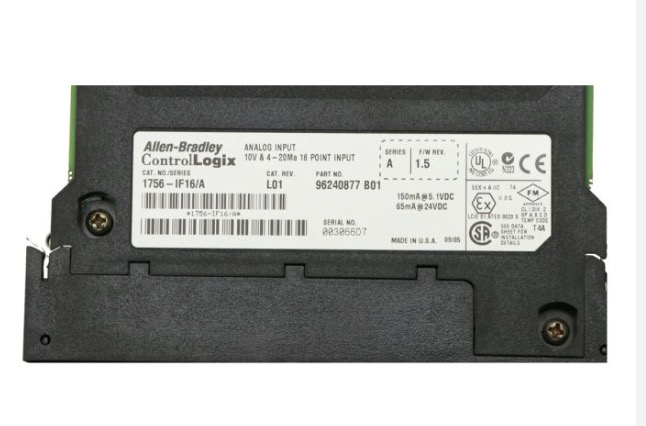

2. Label and Terminal Details
Genuine model labels feature crisp, permanent printing with smooth, flat edges that do not peel; the terminal block uses the original manufacturer's grey pluggable design, with screws that turn smoothly without sticking or stripping. Counterfeits often use inferior plastic components and poorly finished metal hardware.

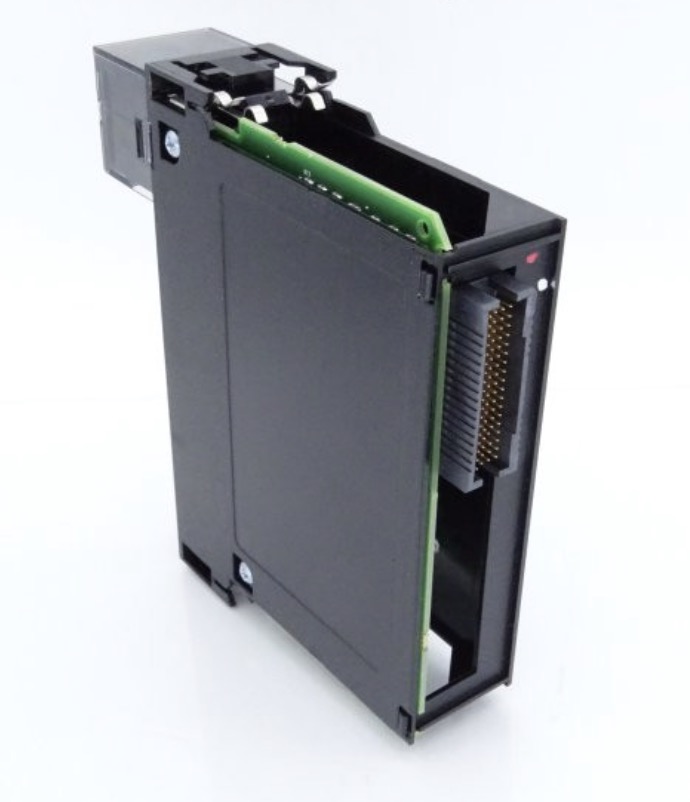

3. Backplane Pin Details
Genuine backplane pins feature thick gold plating and are neatly aligned, straight, and free of oxidation or black spots; counterfeits often use tin-plated pins that are prone to oxidation and deformation, leading to poor contact over time.
1. Guaranteed Authentic Supply
Established in Jiangmen, Guangdong in 2005, our company has years of experience in the export of industrial control spare parts. We have long supplied genuine industrial control components from brands such as Rockwell, Siemens, GE, and Schneider to over 30 countries worldwide. All Allen-Bradley 1756-IF16 units are genuine factory products—free from refurbishment, modification, or counterfeiting—and are fully traceable. 2. Comprehensive Pre-shipment Testing
Every module undergoes actual voltage and current signal testing before shipment. We verify data acquisition accuracy, communication stability, and alarm functions channel by channel. By strictly adhering to OEM technical specifications, we prevent the shipment of modules with latent defects, ensuring immediate stability and usability upon installation.
3. Rapid Delivery from Stock
We maintain a year-round inventory of ControlLogix series analog modules. To meet urgent factory maintenance or expedited project requirements, we offer same-day order verification and shipping, thereby minimizing equipment downtime and preventing losses associated with project delays.
4. Expert Technical Support
Our team possesses extensive experience with ControlLogix systems, covering everything from wiring standards and software configuration to mode switching and troubleshooting. We can precisely resolve issues encountered during operation—such as abnormal readings, incorrect mode selection, configuration errors, and wiring faults. We guarantee a response to technical inquiries within 12 hours and completion of commercial coordination within 24 hours.
Email: sales@feimutech.com
WhatsApp: +86 13358323579
Website: www.feimuplc.com
Response time: Technical inquiries within 12 hours. Commercial inquiries within 24 hours.
Yes. The module is natively compatible with 0-20mA current inputs and can be configured via Studio 5000 software to support standard industrial 4-20mA sensor signals, making it fully suitable for typical field analog data acquisition applications.
Yes. This series supports online maintenance, allowing for module removal and replacement without shutting down the system—ideal for equipment maintenance in continuous production environments.
No. ControlLogix modules and terminal blocks are sold separately. You must select a compatible 36-pin terminal block (such as the 1756-TBCH or 1756-TBS6H); we can supply the complete set of compatible accessories.
Continued operation is not recommended. A single-channel failure compromises the module's overall isolation performance, creating risks of internal short circuits and signal crosstalk. This can affect the acquisition accuracy of other channels or even cause a total system failure; therefore, the module should be replaced promptly to ensure system stability.
