Traditional centralized control cabinets involve long cable runs and high material consumption, making it difficult to fit large numbers of signal acquisition modules into compact enclosures. Standard input modules often lack robust anti-jitter performance, leading to false signal triggering and logic errors. Leveraging the POINT I/O distributed architecture, the Allen Bradley 1734-IB8K can be installed close to the equipment to minimize wiring length. Its high-density 8-channel design saves mounting space, while a 0.5ms debounce delay filters out transient noise, ensuring signal integrity during transmission to the PLC and preventing system logic anomalies caused by signal loss.
With nearly two decades of experience in industrial control spare parts exports, Feimu Technology specializes in sourcing genuine, non-refurbished modules. We employ standardized inbound and outbound testing procedures and a 12-hour technical support response mechanism, offering a one-stop solution for challenges ranging from model selection and commissioning to inventory stocking and authenticity verification.
1. Sinking Input Compatible with PNP Field Devices
The 1734-IB8K is a sinking input module; the input circuit connects to the DC negative terminal. It requires PNP sensors or push-button switches in the field, where the external device supplies a positive voltage signal to the module's input terminals. It is compatible with mainstream 24V DC industrial sensors. It is incompatible with NPN devices; we can assist in verifying equipment types during the selection phase to prevent incorrect purchases.
2. 0.5ms Debounce Delay to Filter Interference Pulses
The module features a minimum debounce delay of 0.5ms; instantaneous noise pulses lasting less than 0.5ms are automatically suppressed. Transient false signals caused by workshop vibrations or cable interference are not recognized by the PLC, thereby reducing the probability of program malfunctions at the hardware level without requiring additional filtering code that would consume controller resources.
3. No Built-in Hardware Counting Function
The module itself does not include a hardware counter and is dedicated solely to digital signal acquisition. If high-speed pulse counting or frequency measurement is required, the corresponding calculations must be programmed within the ControlLogix or CompactLogix controller; for high-frequency counting needs, we can recommend a dedicated counting module.
4. Quick Assembly via DIN Rail Clip
It utilizes the industry-standard DIN rail mounting method and features a removable RTB (Removable Terminal Block) for wiring. The unit is compact and lightweight, occupying minimal rack space, making it ideal for space-constrained wall-mounted electrical cabinets or remote stations mounted on the side of equipment.
5. Standard Backplane Power Consumption Parameters
When powered by the POINTBus backplane (5V DC), the module consumes 75mA of operating current. This value can be used directly when planning the power capacity for the entire remote station, helping to prevent backplane power overloads or communication interruptions caused by stacking multiple modules.
| Attribute | Specification |
| Product Series | POINT I/O |
| Module Type | Digital Input Module |
| Number of Inputs | 8 points |
| Input Type | DC Sink Input |
| Rated Input Voltage | 24V DC |
| Voltage Range | Approximately 10 to 28.8V DC |
| Input Current | Approximately 2 to 5mA |
| Input Delay | 0.5ms (hardware + software adjustable) |
| POINTBus Current | 75mA @ 5V DC |
| Operating Temperature | -20 to 55℃ |
| Installation Method | DIN rail |
| Protection Type | Conformal Coated |
| Module Weight | Approximately 32g |
| Dimensions (H×W×D) | Approximately 56×12×75.5mm |
1. Full Compatibility with POINT I/O Accessories
The Allen Bradley 1734-IB8K is part of the comprehensive POINT I/O product line and can be paired with adapters such as the 1734-APB (DeviceNet) or 1734-EPN (EtherNet/IP) to form remote stations, utilizing the backplane bus for data exchange between modules.
2. Seamless Compatibility with Mainstream Logix Controllers
Once the network is configured, it interfaces seamlessly with the full range of ControlLogix and CompactLogix PLCs. Software configuration recognizes the module without the need for additional plug-ins, allowing for immediate deployment in both new projects and capacity expansions or upgrades for existing equipment.
3. Standard Remote I/O Deployment Scheme
The distributed link system comprises four layers: the central control PLC cabinet → EtherNet/IP industrial cabling → POINT I/O remote substations located near the equipment → 1734-IB8K modules for field switch signal acquisition. Placing I/O points close to production equipment significantly reduces long-distance cable runs, thereby lowering labor and material costs associated with wiring.
4. Modular Design Simplifies Future Retrofitting
Unlike monolithic large-scale I/O racks, a single module failure requires replacing only that specific module rather than dismantling the entire substation. This drastically reduces downtime for maintenance, meeting the operational needs of continuous production lines.
1.1. Connect the 24V DC positive terminal to the sensor power supply common terminal;
1.2. Connect the sensor's positive output signal wire to the corresponding input channel (IN0 through IN7);
1.3. Connect the sensor's negative common terminal to the module's DC COM common terminal;
1.4. Supports only standard 24V DC sensing devices; 12V low-voltage sensors cannot be recognized or read by the module.
Compatible wire cross-sections range from 0.5mm² to 1.5mm² (equivalent to 22AWG to 16AWG); a uniform stripping length of 8mm is required—insufficient length leads to poor contact, while excessive length risks short-circuiting adjacent terminals.
3. Common Wiring Error Alerts
The most frequent issue is reversed sensor output polarity, preventing the module from recognizing input signals and causing channel indicator lights to remain off. Device models should be provided during procurement so technicians can verify PNP/NPN types in advance; providing reference diagrams during on-site wiring helps minimize rework during commissioning.
1. Material Conveyance Equipment Displacement Detection
Multiple 1734-IB8K modules can be installed within compact, side-mounted control cabinets to acquire signals from "material-in-place" proximity switches. The high-density, 8-channel layout eliminates the need for cabinet expansion while providing real-time feedback on material conveyance status, ensuring stable sorting logic on the production line.
2. Small-scale packaging equipment: Counting and sensor data acquisition
Pairs with on-site PNP counting sensors to filter out transient noise pulses caused by mechanical vibration, ensuring accurate product count recording. A 0.5ms debounce delay prevents double-counting, thereby reducing the rate of defective packaged products.
3. Operator console: Centralized signal collection for control buttons
Start/stop, reset, and emergency stop buttons from the main control console are wired directly to the module. Distributed substations are positioned locally, eliminating the need to route dozens of long cables back to the central control cabinet; this ensures tidy internal cabinet wiring and facilitates future inspections.
1. Solid green: Backplane power is normal, module communication is recognized without issues; no action required.
2. Completely off: Substation backplane power is disconnected or the bus connector has poor contact; check the power supply and backplane pins.
3. Solid red: Hardware damage or software configuration parameter mismatch; if the error persists after re-downloading the configuration, replace the unit.
1. Solid green: Input terminal receives a DC signal >10V; switch/sensor is in the "ON" state.
2. Remains off: Input voltage is <3V DC (no valid signal); check the sensor and wiring connections.
1. Automatic module scanning and identification
Right-click the corresponding POINT I/O network adapter in the software's hardware tree and select "Discover Modules"; the program automatically identifies the connected 1734-IB8K and adds it with a single click.
2. Manual module addition
In the hardware catalog, navigate through 1734 POINT I/O → Digital Input; select model 1734-IB8K and manually attach it to the corresponding adapter, then enter the substation address and backplane slot parameters before saving.
3. Technical support and Q&A
If issues such as scan failures, missing channel data, or error pop-ups occur during configuration, simply send a software screenshot and the substation hardware list; our technical staff will provide a solution within 12 hours.

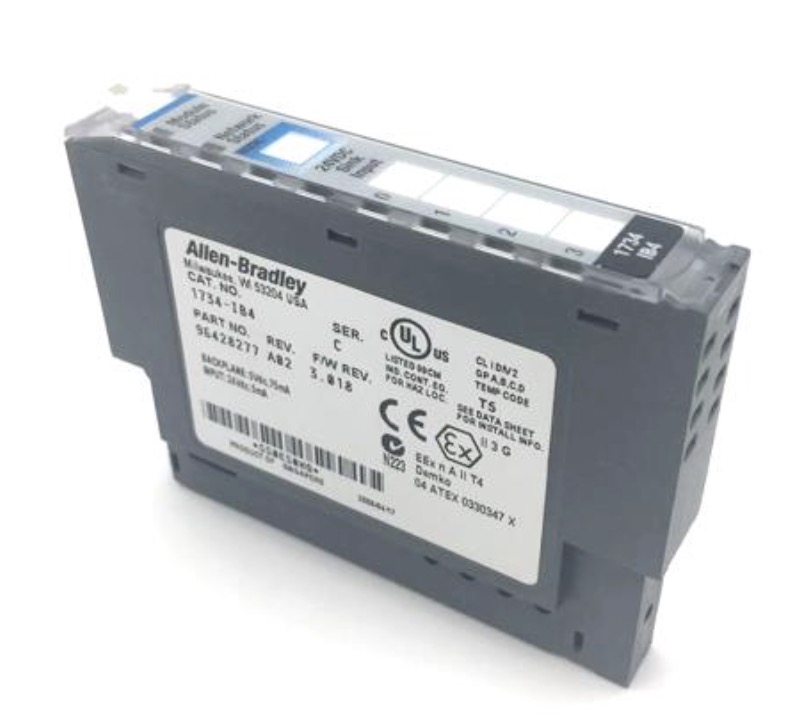

1. Housing and Label Verification
The genuine module housing features the standard POINT I/O gray-white finish, with uniform color and no discoloration or the cheap, glossy sheen typical of low-quality plastic. The model label uses high-temperature permanent printing; the "1734-IB8K" text is crisp and complete, whereas counterfeit labels often have blurry text and edges that peel or lift easily.
2. Terminal Block and Backplane Connector Inspection
The included RTB (Removable Terminal Block) is made of genuine, rigid gray plastic and connects smoothly without sticking. The backplane bus features thickened, gold-plated straight pins arranged neatly—free of bends or oxidation spots—while counterfeits often use tin-plated pins, which are prone to poor contact during long-term operation.
3. PCB Conformal Coating Check
Genuine circuit boards are fully coated with a protective conformal coating (moisture- and dust-proof), which slows circuit aging in humid or dusty environments. Most counterfeit modules omit this coating, leading to circuit leakage or signal drift after only short-term exposure to humidity.
4. Weight-Based Identification
There is a noticeable weight difference between genuine units and counterfeits of the same model. If you encounter erratic channel readings or abnormal indicator light behavior after installation, please photograph the front, back, and backplane pins of the unit and send them to us for authenticity verification.
Every Allen Bradley 1734-IB8K unit undergoes a comprehensive manual inspection before leaving the warehouse; untested modules are never shipped directly. The full inspection steps are as follows:
1. Initial Visual Inspection
Verify housing color and label clarity; inspect backplane bus pins for bending or impact damage; ensure the terminal block is free of cracks and the locking mechanism is intact.
2. Backplane Communication Test
Connect the module to a standard POINT I/O test station and power it up with the appropriate adapter; confirm that the programming software correctly identifies the hardware and that there are no communication errors.
3. Full Signal Test for All Eight Channels
Use a standard 24V DC signal source to trigger channels IN0 through IN7 sequentially; confirm that signal acquisition (on/off status) is normal for every channel and that there are no single-point failures.
4. Debounce and Delay Parameter Verification
Instrument testing of input response latency confirms that the hardware debounce value remains stable within the 0.5ms standard range, with no parameter drift.
5. Channel Indicator Light Inspection
Each input signal is triggered individually to verify that the LED logic for every channel matches OEM standards, ensuring there are no damaged or non-functional indicator lights.
6. Protective Packaging and Sealing
Upon completion of testing, the unit is placed in a custom-made, thickened anti-static bag and then into a five-layer carton with protective foam padding; labels indicating the module serial number and test date are affixed.
1. Established, Reliable Source for Genuine Industrial Control Spares
Founded in Jiangmen, Guangdong in 2005, the company has consistently supplied genuine industrial control components from Rockwell, Siemens, GE, and Schneider to customers in over thirty countries. We deal exclusively in authentic OEM products—never selling refurbished, modified, or counterfeit modules—and maintain full traceability of our supply chain.
2. Dedicated Stock of POINT I/O Series
With over a decade of specialization in the POINT I/O product line, we maintain ample inventory of common digital input/output and analog acquisition modules. For factories facing unexpected equipment downtime requiring urgent replacements, we can verify stock and arrange shipment on the same day, minimizing production line stoppage.
3. Comprehensive Technical Support
Our team has extensive experience with POINT I/O distributed system projects, assisting customers with model selection, wiring diagram references, Studio 5000 configuration adjustments, and fault diagnosis. We provide responses to technical inquiries within 12 hours and full replies to commercial quotes within 24 hours.
4. One-Stop Supply of Compatible Accessories
When purchasing the 1734-IB8K, you can simultaneously acquire matching RTB terminal bases, EtherNet/IP or DeviceNet network adapters, and DIN rail accessories. There is no need to source from multiple vendors; we provide a complete hardware package for the remote station in a single order.
A: The suffix "K" indicates that the module has passed compliance certification for specific regions. Its core electrical parameters, channel performance, and software configuration are identical to the standard version; they are directly interchangeable in the field without requiring program modifications.
A: Yes, it is fully supported. By connecting the central control PLC to the field POINT I/O station via EtherNet/IP industrial cabling, the 1734-IB8K can be installed near the equipment to collect discrete signals locally, significantly reducing wiring costs.
A: When powered by the POINTBus backplane (5V DC), the module has an operating current of 75mA; this figure can be used directly when calculating power capacity for multi-module stations.
A: A single channel failure can compromise the signal isolation performance of the group and create risks such as short circuits or signal crosstalk. Continued operation with a faulty channel is not recommended; replacing the unit with a new module ensures the long-term stability of the entire system.
