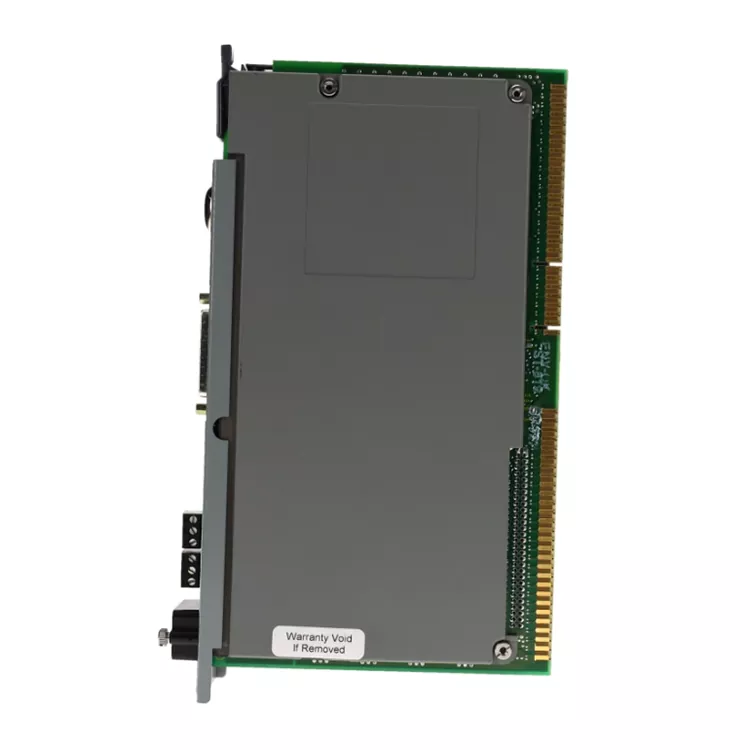

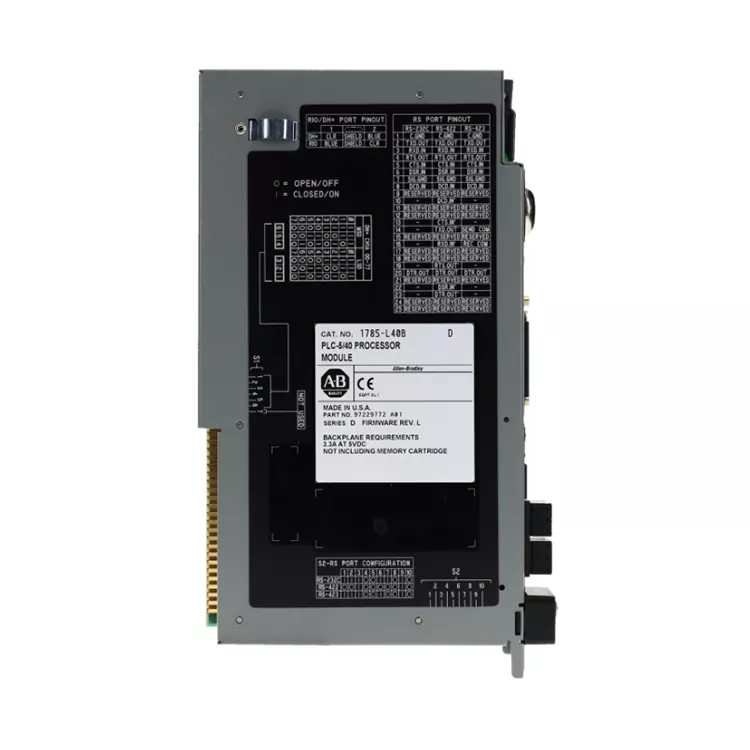

Allen Bradley 1785 L40B

Allen Bradley 1785 L40B is a PLC 5/40 main control unit, equipped with 48K program memory, supporting large-capacity I/O point expansion, featuring DH+ remote communication and RS232 debugging interface. It can stably form a distributed industrial control system. The module is perfectly compatible with the entire 1771 rack and I/O modules. The original program can be directly replaced without modification, with strong stability and a long industrial service life. As a reliable cross-border industrial control supplier, Feimu Technology has long stocked this rare discontinued model, making it the preferred supply channel for the maintenance and replacement of current old AB control systems.

Core Advantages

① Suitable for large control systems

Support multiple frame, multi-site I/O management, can meet the control demand of complex production equipment.

② Stable PLC-5 architecture

Adopt mature industrial control platform, which is sutable for long-term continual run environment.

③ Strong communication expansion capability

Support the DH + and Remote I/O network, convenient to connect to a Remote I/O modules and other control equipment.

④ Extends the life cycle of old equipment

Suitable for maintaining and replacing existing PLC-5 systems, avoiding high-cost investment in overall system upgrades.

⑤ Reliable program protection capability

Uses battery to maintain RAM and supports EEPROM program backup, improving the security of program data.

Application fields

The Allen Bradley 1785 L40B is mainly applied in:

Automobile manufacturing production lines

Packaging and conveying equipment

Power energy control systems

Water treatment automation systems

Chemical process control equipment

Maintenance projects for the old PLC-5 system in factories

Technical Specifications

FAQ

Q1. What module is it?

The Allen Bradley 1785 L40B is an Allen-Bradley PLC-5/40 processor module, used for program execution and equipment control in the PLC-5 control system.

Q2. Which software is used for programming?

RSLogix 5 is used for program development, uploading and downloading.

Q3. Which communication methods are supported?

DH+, Remote I/O and RS-232/422/423 serial communication are supported.

Q4. How to check if the device fails to start?

Check PLC power supply;

View your PROC status lamp;

Check the status of the battery;

Confirm communication connection.

Certification and quality assurance

Process of inspection

Appearance inspection: check module shell, interface, terminal and label status, confirm no obvious damage, corrosion or abnormal wear.

Model and hardware version confirmation: check the product model, series, hardware version and configuration parameters, ensure matching system with customer requirements.

The start-up test: test platform, state detection module is powered on, the supply and the initialization process is normal.

CPU running test: verify processor launch, self-check, status indicators and programs run function, to ensure normal CPU control function.

DH + communication test: communicate through DH + network authentication, inspection data exchange between the processor and the PLC network equipment capacity.

Program to read/write test: use RSLogix 5 tested program to upload, download, and data access, confirm program storage and communication function normal.

Long-term operation stability test: Conduct continuous operation test to observe module operation stability and reduce the risk of on-site failure.

Delivery Provision:

Product Inspection Records;

Physical Photos;

Packaging Inspection Records.

Company Guarantee

Feimu Technology has been deeply involved in the industrial control industry for over 20 years, with a 2,000㎡intelligent warehouse and 5,000+ industrial control SKUs in stock. It provides long-term stable supply of all discontinued, scarce AB, Siemens, GE, Schneider industrial control spare parts.

All Allen Bradley 1785 L40B modules have undergone 72-hour full-load aging test, full-channel communication detection and function verification to prevent refurbished and assembled defective products. Unified quality assurance services are provided, equipped with a 7×24-hour professional technical team to support remote debugging, fault troubleshooting and replacement plan guidance.

The entire supply chain is regular, quality is controllable, and delivery is stable, fully ensuring the smooth operation of old production lines in overseas and domestic factories.
