Allen Bradley 1769 IQ32

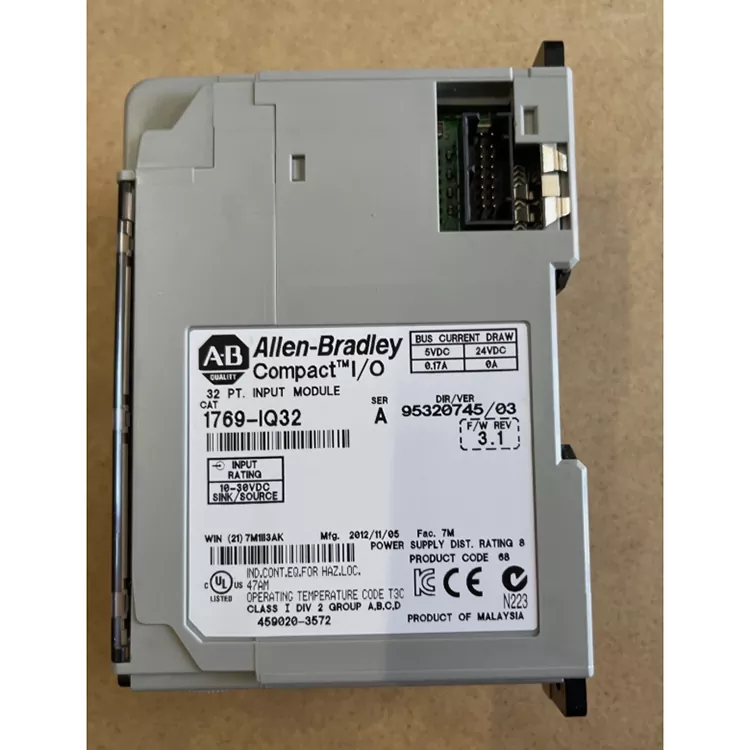

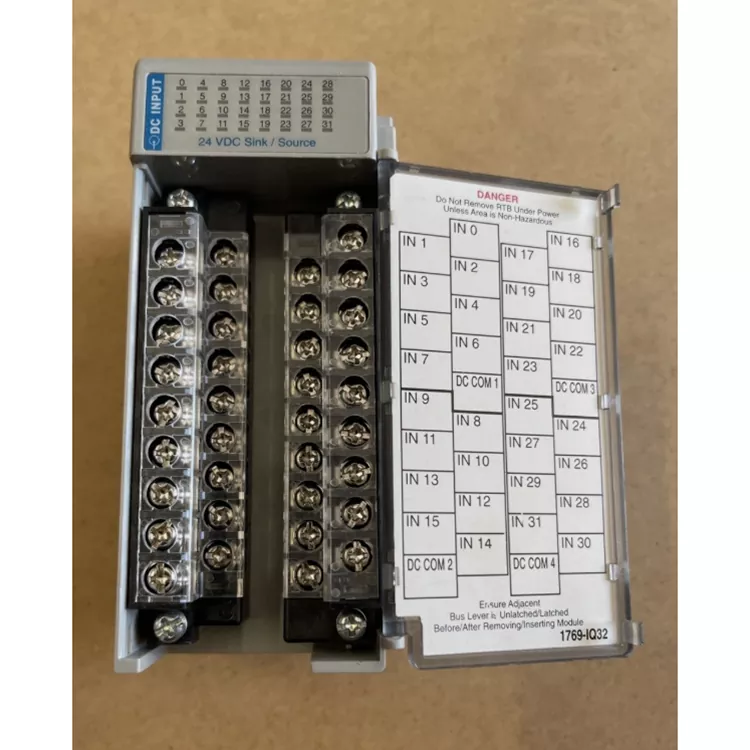

TheAllen Bradley 1769 IQ32 is a 32-point high-density DC digital input module. It is suitable for the collection of proximity switches and photoelectric sensor signals in large-scale applications, and is widely used in overseas automotive assembly lines, material transportation, and automated processing production lines.Feimu Technology has been deeply involved in the foreign industrial control field and is a reliable global spare partssupplier.

All the incoming modules undergo sequential channel signal detection and backplane bus online testing. All faulty products with channel damage, latent aging, or repair refurbishment are strictly screened out. There is no need for additional debugging upon arrival, and they can be directly installed and replaced, fully meeting the usage requirements of overseas factories for emergency maintenance and rapid resumption of production.



Core advantage

32-point high-density input: A single module can collect more on-site signals, reducing the number of modules and installation space.
Save control cabinet space: Suitable for automation equipment with a large number of I/O points.
Stable and reliable operation: industrial grade design, suitable for long-term continuous operation environment.
CompactLogix system compatibility: Can be directly integrated into the 1769 I/O architecture.
Simple maintenance: Modular structure, facilitating replacement and expansion.



Data processing procedure

On-site 24V DC input signal → input terminal interface → protection/filtering circuit → photoelectric isolation circuit → input status detection unit → data processing module → 1769 bus interface → CompactLogix controller

Important parameters



Parameter	Specification
Model	1769 IQ32
Series	CompactLogix 1769
Product Type	Digital DC Input Module
Input Type	DC Digital Input
Number of Inputs	32 Points
Rated Input Voltage	24V DC
Operating Voltage Range	10～30V DC
Input Current	Approx. 4.3 mA at 24V DC
Input Delay Time	Approx. 8 ms (ON/OFF)
Isolation Voltage	75V DC (Continuous Isolation)
I/O System	1769 Compact I/O
Power Consumption	Approx. 115 mA at 5.1V DC
Installation Method	DIN Rail or Panel Mount
Communication Method	Through 1769 Compact I/O Bus

Why choose us

When most suppliers in the market only perform simple appearance sorting, Feimu Technology, as a global supplier of discontinued AB spare parts, has established exclusive testing standards for high-density input modules such asAllen Bradley 1769 IQ32.

We eliminate refurbished and repaired parts with aging channels or malfunctioning points. Before each module leaves the warehouse, we complete the backplane bus verification, and conduct 32-channel point-by-point power-on testing to prevent frequent on-site hazards such as signal loss and unresponsive points. We also provide complete testing records with the goods. It is compatible with overseas procurement processes, supports multiple international transportation channels, and can provide a complete set of customs declaration documents.

We have deepened the maintenance of the Compact I/O outdated system and can provide basic technical references to help customers quickly handle digital input signal failures, minimizing unplanned downtime losses to the greatest extent.



FAQ

Q1. Which on-site devices can be connected?

Photoelectric sensors;
Proximity switches;
Limit switches;
Push-button switches;
Relay output devices;
Equipment operation feedback signals.

Q2. How to handle abnormal input point status?

Check the 24V DC power supply on site;
Confirm whether the wiring of the input terminals is correct;
Check the sensor output status;
Check the common terminal connection;
Eliminate on-site electromagnetic interference.

Q3. How to solve if the PLC cannot recognize?

Confirm the correct installation position of the module;
Check the 1769 bus connection;
Check the configuration of the Studio 5000 / RSLogix 5000 module;
View the diagnostic information of the controller.

Q4. Does it support high-speed input?

The 1769 IQ32 is mainly used for general digital quantity input acquisition. If high-speed pulse or high-speed counting applications are required, a dedicated high-speed input module should be selected.

Q5. How to improve system stability?

Use a stable 24V DC power supply;
Keep the input signal lines away from power cables;
Do a good job in grounding and shielding;
Regularly check the tightness of the terminals.

After receiving the goods, authenticity judgment

Label check:
Confirm that the model 1769 IQ32, Allen Bradley identification, serial number, product number and batch information are clear and complete. The official data show that the model is a 32-point 24V DC digital input module, which can be used as a parameter check basis.
Appearance inspection:
Check whether Allen Bradley 1769 IQ32 housing, terminal cover, clasps and screws are in good condition, and there are no traces of disassembly, renovation, ablation or obvious wear.
Interface to check:
Check the 1769 bus connection interface, terminal is normal, no oxidation, deformation or damage.
Parameter to check:
Confirmed: 32 points input; 24 v DC input type; Input range is about 10 ~ 30 v DC; Appearance size and terminal layout are consistent with official data.
Computer test:
To the CompactLogix system installation, can identify confirm PLC module, and point by point test input signal response is normal.
Data retention
Keep product photos, label photos, test records and factory information for follow-up.
