Allen Bradley 1769 IF8

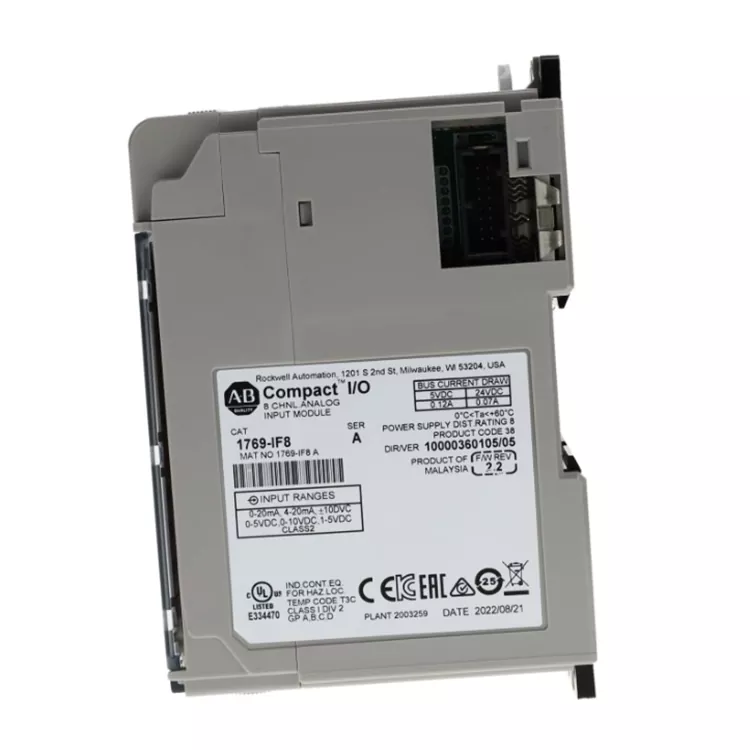

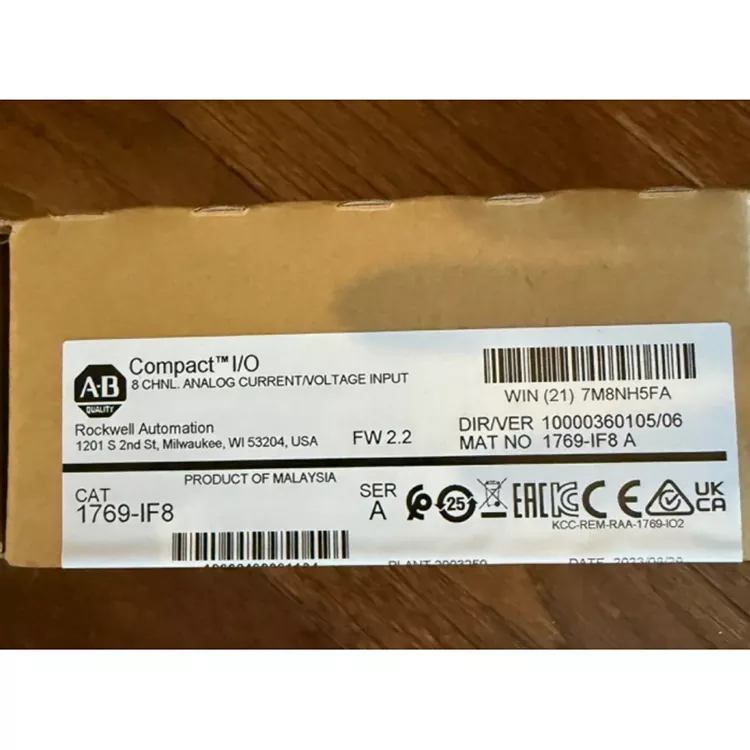

Allen Bradley 1769 IF8 is an 8-channel voltage/current compatible analog input module. It can be connected to various transmitters such as pressure, level, and flow sensors. It supports both differential and single-ended wiring modes. It is widely used in overseas water treatment, chemical industries, and manufacturing batch automation lines. As a professional supplier targeting overseas markets, Feimu Technology conducts sampling accuracy and backplane bus online detection for each channel of the module upon entry. It screens out faulty products with signal drift and those that need repair or renovation. Once received, these products can be directly installed and replaced, meeting the urgent repair needs of overseas factories.

Key Parameters

Service life

Allen Bradley 1769 IF8 is an industrial-grade analog input module of the CompactLogix 1769 series. It is designed with industrial electronic components and is suitable for automated control environments with long-term continuous operation.

Typical service life: Approximately 10 years or more

Under the conditions that temperature, power supply, and installation environment meet the requirements, it can operate stably for a long time.

The actual life depends on the environment and maintain the site conditions.

The main factors affecting longevity

Working temperature: long-term high temperature operation will accelerate aging electronic components;

Power quality, voltage fluctuation, the surge may affect module life;

Environmental conditions: Dust, humidity, and corrosive gases will reduce reliability;

Signal quality: strong electromagnetic interference may cause input circuit affected for a long time;

Installation and maintenance: Proper wiring and regular inspection can extend the service life.

Core Advantages

8 channel analog acquisition: can monitor multiple field analog signal at the same time, improve the efficiency of system integration.

Voltage/current compatible: supports a variety of industry standard signal, wide application range.

High precision conversion: Sigma-Delta A/D conversion technology is adopted to improve data stability.

Strong anti-interference ability, suitable for industrial continuous operation under complicated environment.

CompactLogix Seamless integration: Installs directly on the 1769 I/O system for easy expansion and maintenance.

Why choose Us

Feimu Technology supplies scarce industrial control spare parts that have been discontinued from Rockwell globally. It strictly screens the supply sources for the Allen Bradley 1769 IF8 multi-channel analog module and eliminates refurbished and repaired modules with accuracy attenuation and hidden faults in the channels.

Before each module is dispatched, all channel accuracy checks and backplane stability tests are completed to avoid hidden faults such as reading drift and inaccurate collection. Complete test records are provided. It supports various international logistics solutions and can provide a complete set of foreign trade customs documents.

Familiar with the maintenance difficulties of old Compact I/O equipment overseas, it can offer basic technical assistance to handle on-site problems related to analog quantity collection and reduce production losses caused by unplanned downtime.

FAQ

Q1. What are the reasons for unstable input values?

Analog signal lines not block;

Bad earth;

Incorrect input range;

Sensor output fluctuation;

By frequency converter, motor and other equipment electromagnetic interference.

Q2. What if the read value is not consistent with the field instrument?

Check the input signal range configuration

Confirm the sensor output specification;

Check channel scaling parameters;

Calibration tests were performed using standard signal sources.

Q3. How to deal with PLC failure?

Check whether the module is properly installed;

1769 bus connection is normal;

Check module in the Studio 5000 / RSLogix 5000 configuration;

View controller failure code.

Q4. Is an external power supply required?

The module is powered by the CompactLogix 1769 backplane, and the on-site analog input signals provide corresponding power according to the type of connected equipment.

Q5. How to improve measurement accuracy?

Use a stable signal source;

Correctly set the input range;

Rationally configure filtering parameters;

Use shielded cables;

Ensure signal grounding.

Customer case and evaluation

An overseas chemical factory's 1769 IF8 module had channel reading jumps and multiple transmitters' data were unstable, preventing normal process control. Procurement for the test of the science and technology original module, cross-border replace the arrival of the goods is complete, all channel sample recovery precision is stable, equipment return to normal production.

Customer evaluation: multi-channel analog module, it is hard to find a colour intact received installed directly, help us to solve the data jump this thorny problem.

True and false judgment after receiving

1. The label check: confirm model, identify Allen Bradley 1769 IF8, clear product number and batch information integrity.

2. Inspection: check module shell, terminal, card buckle, interfaces are in good condition, without repairing, damaged, renovation.

3. Interface check: check whether the 1769 bus interface and analog input terminal is normal, no oxidation, bending or damage.

4. Parameter check: confirm the input type, 8 channel number and scope of the input voltage/current specifications in accordance with the official data.

5. Computer test: install to CompactLogix system, confirm the controller can identify module, and test the analog signal to read.

6. Record keeping: save physical photos, tags, photos, and the inspection records, test results convenient follow-up tracing.
