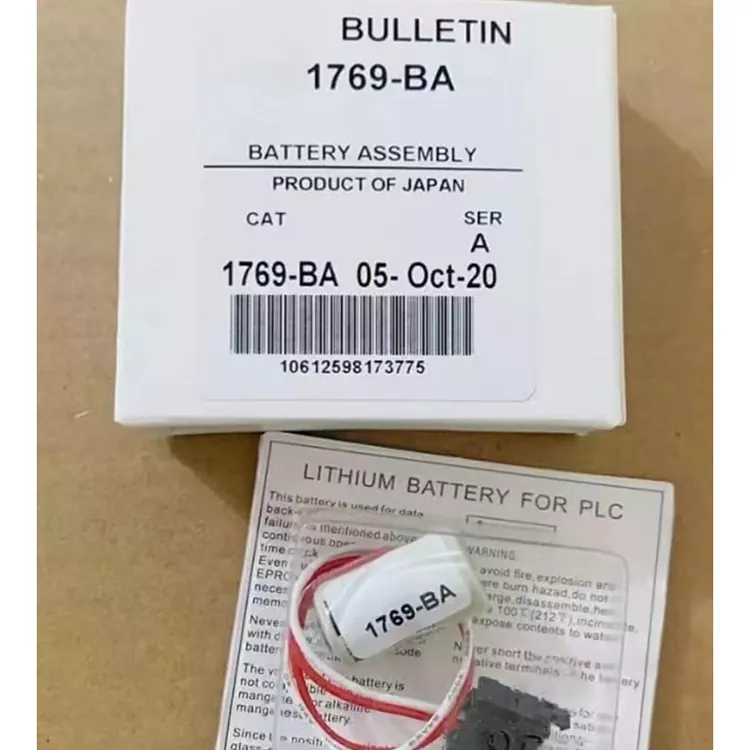

Allen Bradley 1769 BA

Allen Bradley 1769 BA is used to protect the controller's memory programs and system parameters during power outages of PLCs. It is widely used in conjunction with overseas-made, water treatment, and packaging industry CompactLogix equipment. As a professional supplier targeting the overseas market, Feimu Technology has completed voltage and discharge status detection for all incoming products, eliminating aged, undercharged, modified, and refurbished items. Once received, these products can be directly installed and replaced, meeting the rapid maintenance needs of overseas factories.

Core Strengths

Program data protection: Provides backup power support for the memory during the power-off of the controller.

Enhances system reliability: Reduces the risk of program or data loss due to power interruption.

Easy maintenance: Modular design, facilitating regular inspection and replacement.

Suitable for long-term operation systems: Meeting the continuous operation requirements of industrial automation equipment.

Important parameters

Application fields

Automated production line control system

Packaging machinery equipment

Automobile manufacturing equipment

Process control system

Material conveying system

Long-term running CompactLogix control application

Customer case and evaluation

An overseas water treatment plant experienced a power outage and parameter loss issue with its PLC. The original Allen Bradley 1769 BA measured by Femu Technology was replaced after the cross-border arrival. The program parameters were completely saved after the equipment was powered off, and the fault was completely solved.

Customer: It is difficult to find a reliable supply of the original PLC backup battery, and the product has been fully tested, which successfully solved the tricky problem of losing parameters when the equipment is powered off.

FAQ

Q1. What should be noted during installation?

Before replacement, follow the controller maintenance requirements. Avoid risks of data loss due to prolonged power outage and ensure that the battery model is compatible.

Q2. Is the I/O module? It isn't. It belongs to the battery/storage protection accessories, do not provide input or output channel.

Q3. Why need to change?

Lithium batteries have service life limits, and their capacity will decrease after long-term operation, so they need to be replaced according to the alarm information of the controller or the maintenance cycle.

Q4. What effect will the battery failure?

May result in the controller program when the power is keep ability to drop, increase the risk of data loss.

Q5. How to determine whether the battery need to change?

It can be determined by controller diagnostic information, battery status alarm and regular maintenance check.

Lifespan

The Allen Bradley 1769 BA is a lithium battery backup module used by the CompactLogix series controller. Its main function is to maintain the stored data when the controller loses power. Therefore, its lifespan mainly depends on the battery capacity, storage environment, and operating conditions.

Typical service life: about 2 to 5 years (depending on controller model, operating environment, and power failure frequency).

Factors affecting lifespan:

Control cabinet environmental temperature (high temperatures accelerate battery capacity degradation)

Number of controller power-offs and duration of power-off

Battery storage time

Humidity and corrosive environment impact

Why choose us

Focus on the global supply of scarce spare parts for Rockwell Compact I/O series, strictly controlling the supply sources and preventing counterfeit and refurbished products from flowing out. Each item comes with a test record and supports international logistics through multiple channels. It can be paired with a complete set of foreign trade customs documents. Familiar with overseas equipment maintenance scenarios, we can provide basic technical support and help overseas customers quickly solve data loss problems caused by battery aging, reducing equipment downtime.

Method of judging authenticity and falsehood after receipt of goods

1. Check product labels:

Confirm the model number as Allen Bradley 1769 BA.

Check that the Rockwell Automation/Allen-Bradley logo, font, label sticking process is compliant.

Check whether model, batch information is consistent with the purchasing information.

2. Check the appearance process:

Check the shell color, mold details, and interface structure for Allen Bradley product characteristics.

See if there are repainting, labels, coverage, tear open outfit.

Check whether there is the battery shell deformation, damage, corrosion and leakage.

3. Check the battery status

Confirm there is no beat, battery discharge, oxidation phenomenon.

Check whether the connection terminal is clean, no ablation.

The inventory products with long time, it is suggested that confirm the battery status or replacement cycle.

4. System compatible authentication:

Install 1769 BA to the corresponding CompactLogix controller.

Check if the controller can correctly identify the battery status.

Confirm no battery fault alarm.
