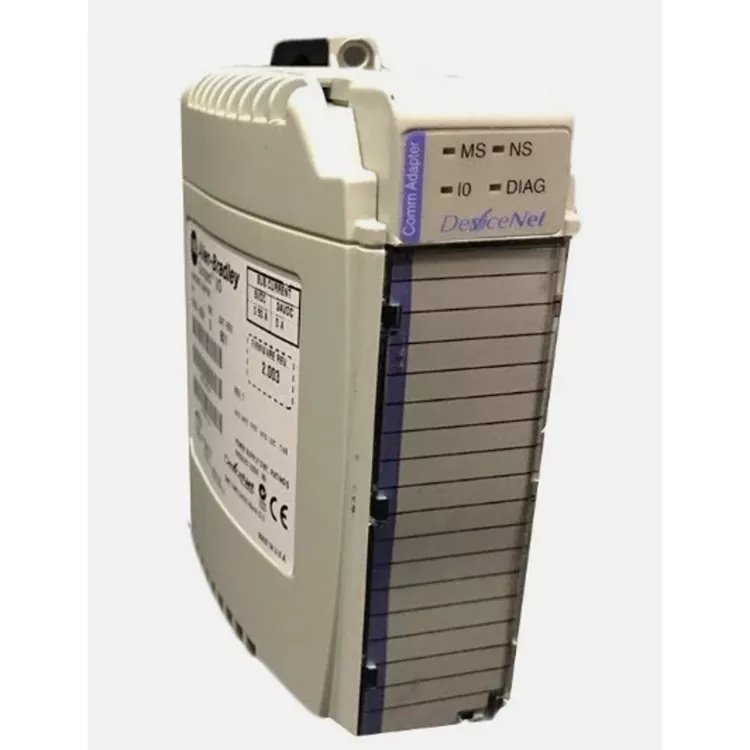

Allen Bradley 1769 ADN is the core communication adapter of the AB Compact I/O system, responsible for stably connecting the entire 1769 I/O stations to the DeviceNet bus. A single module can support up to 30 I/O module expansions and supports multiple communication baud rates. It has strong anti-interference capabilities and is widely used in global automotive manufacturing, packaging, logistics, light industry, and other existing outdated automation production lines. As a professional supplier deeply rooted in the overseas industrial control spare parts market, Feimu Technology has undergone bus connection testing, communication stability stress testing, and port aging detection for all the modules entering the warehouse. It strictly screens out hidden problems for repair and refurbished assembly modules to eliminate common risks such as network packet loss and communication flash disconnection. The module quality is genuine, the performance is stable, and it is fully compatible with the original system configuration. Overseas customers can directly replace and install it without the need for reprogramming and debugging.

Core advantages

DeviceNet network interface: Provides DeviceNet communication capability for the 1769 Compact I/O system.

Expansion I/O capacity: Can connect multiple 1769 series I/O modules, suitable for distributed I/O applications.

Easy system integration: Suitable for use with existing CompactLogix control systems and DeviceNet networks.

Industrial field application: Suitable for manufacturing, packaging, material transportation, and equipment automation scenarios.

High maintenance value: Can be used as a communication adapter spare part for outdated CompactLogix systems that still use the DeviceNet architecture.

Internal structure

As a DeviceNet adapter, the Allen Bradley 1769 ADN consists mainly of communication interfaces, processing control circuits, I/O bus interfaces, power supply and protection circuits. All parts work together to complete data exchange between the DeviceNet network and the 1769 Compact I/O system.

Work process:

DeviceNet network → Communication interface → Protocol/control circuit → 1769 I/O bus → I/O module → Field equipment

Important parameters

FAQ

Q1. How to determine if it is working properly?

You can observe the module status indicator light to check the device status, and then further inspect the DeviceNet network communication, I/O data exchange, and diagnostic information on the controller side.

Q2. Does it belong to CompactLogix CPU?

No. The Allen Bradley 1769 ADN is a communication adapter and does not execute the PLC main program. It mainly undertakes data exchange between the DeviceNet network and the 1769 I/O system.

Q3. What communication networks are supported?

Mainly supports DeviceNet network and can be used as an I/O adapter device in the DeviceNet network.

Q4. How to communicate with the 1769 I/O module?

A: The adapter exchanges data with the I/O module installed in the system through the 1769 Compact I/O local bus, and then communicates with the upper-level control system through the DeviceNet network.

Q5. What items should be checked when there is a communication failure?

Focusing on DeviceNet power supply, network cable, node address, baud rate, the network terminals, connectors, and the installation state of the 1769 I/O module.

The inspection process

1. Appearance check → Check whether the shell, interfaces, screws and labels are in good condition.

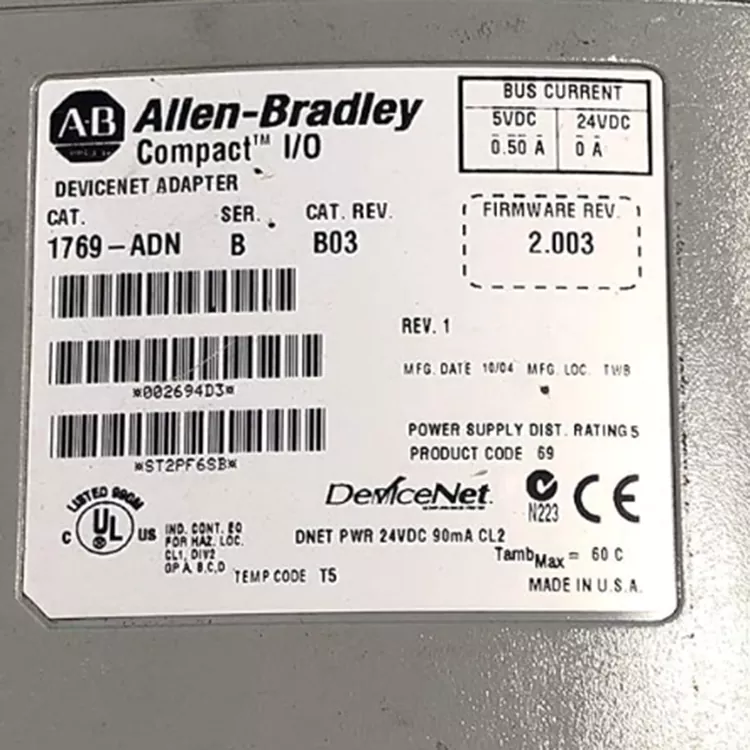

2. Model check → Confirm that the nameplate model, Series and other information are consistent with the order.

3. Power test → Check the indicator light and module running status.

4. Communication test → Access the DeviceNet network to confirm that communication and I/O data exchange are normal.

5. Software verification → Use Rockwell software to check the identification and fault state of the equipment.

6. Record the results → Take photos of the material object, nameplate and test process, form the inspection record and package the goods for delivery.

Why choose us

Globally outdated automation spare parts procurement, fly for master scarce production of science and technology communication module primary source, resolutely put an end to replicas and refurbished goods outbound. Each item can provide complete quality inspection test records, supports multiple channels of international logistics, and can be accompanied by a complete set of foreign trade customs documents. With many years of overseas project supply experience, it is familiar with overseas factory spare parts procurement standards and review processes. At the same time, it provides remote technical assistance, quickly responds to overseas equipment emergency failures, and minimizes downtime and production losses to the greatest extent.

Installation Process

1. System validation → Verify that Allen Bradley 1769 ADN, 1769 I/O modules and DeviceNet network configuration match.

2. Power off installation → Turn off the system power and install 1769 ADN correctly to 1769 I/O system.

3. Connect the network → Connect the DeviceNet communication cable and network power supply as required.

4. Check the connection to make sure the module card buckle, connectors, and the communication line is firm.

5. Power on check → Turn on the power, observe whether the status indicator is normal.

6. Communication DeviceNet node configuration - > configuration parameters, and check the controller with the adapter.

7. Functional tests to verify the I/O data exchange is normal, confirmed that the system runs stably after put into use.
