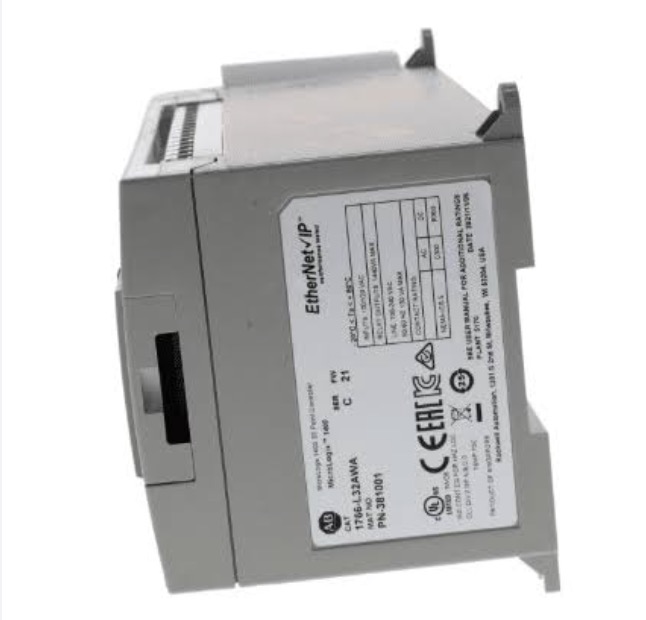

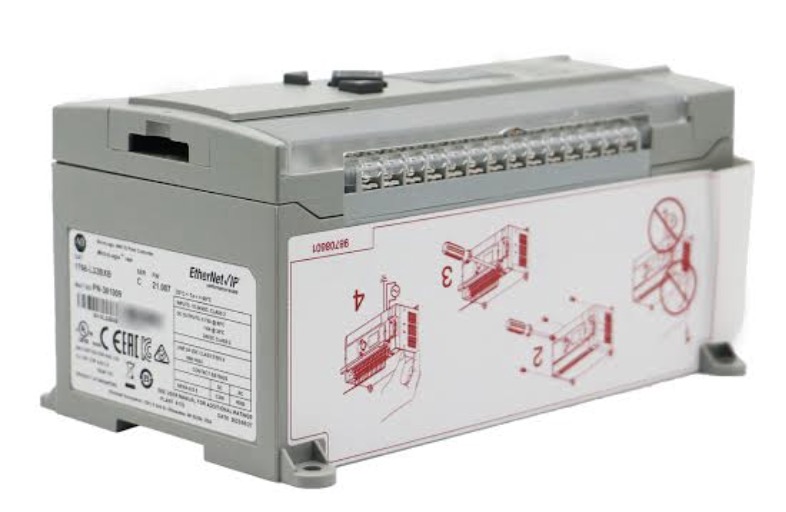

Allen Bradley 1766-L32AWAA

Feimu Technology, as one of the suppliers in China, offers the Allen Bradley 1766-L32AWAA PLC. This is a powerful and durable PLC module that uses AC power supply, equipped with 32 I/O points and an integrated Ethernet interface. If your equipment is still using an old controller and you wish to upgrade, or if you are undertaking a new project and need a reliable small PLC, then this product is definitely your ideal choice. It is affordable and easy to use, and we always have it in stock.

Performance Introduction

The Allen Bradley 1766-L32AWAA model has a much faster computing speed compared to the previous 1100 series, capable of efficiently handling complex logical operations. The built-in Ethernet port eliminates the need to purchase a dedicated communication module, allowing you to directly connect to the network and program or monitor through an upper computer. It supports online editing and various expansion modules. Despite its small size, it can modify the program during machine operation and handle large tasks without stopping the machine.

Product Parameter

Why choose us?

We offer a large quantity of original factory-sealed packaged AB products, with a wide range of models. We have a technical team composed of experts who are involved throughout the pre-sale and after-sale processes. We can recommend the appropriate model based on your equipment. For technical issues such as wiring confusion or program download, we can provide remote guidance through photos or phone calls, ensuring a one-stop shopping experience for our customers.

Certification Advantages

Alan Bradley 1766-L32AWAA is a high-performance MicroLogix 1400 PLC specifically designed for small and medium-sized control systems. It is equipped with abundant digital and analog I/O, supports EtherNet/IP and RS-232 communication interfaces, and can be flexibly applied in complex real-time control and data acquisition scenarios. It has passed international authoritative certifications such as UL, cUL, and CE, fully meeting strict safety standards and electromagnetic compatibility requirements, providing users with an automated core that is both powerful and safe and worry-free.

Built-in Ethernet – Direct Network Connection

The 1766-L32AWAA has a built-in Ethernet port. This is one of its key advantages over older MicroLogix models that require separate communication modules.

Ethernet features:

• Speed: 10/100 Mbps auto-negotiate.
• Protocol: EtherNet/IP and TCP/IP.
• Programming: Direct connection to RSLogix 500 for program upload and download.
• HMI connection: Connect to PanelView or PC-based HMIs over Ethernet.
• Remote monitoring: Optional web server configuration for remote status viewing.

Basic setup steps:

1. Connect the Ethernet cable to the port on the PLC.
2. Open RSLogix 500. Go to the controller properties.
3. Select the Channel 1 tab (Ethernet).
4. Enter the IP address, subnet mask, and gateway address.
5. Download the configuration to the PLC.
6. Verify by pinging the PLC from a PC.

Network design tip: Assign a static IP address to the PLC. This ensures the address does not change after power cycles. If the network uses DHCP, reserve the IP address in the DHCP server for the PLC's MAC address.
