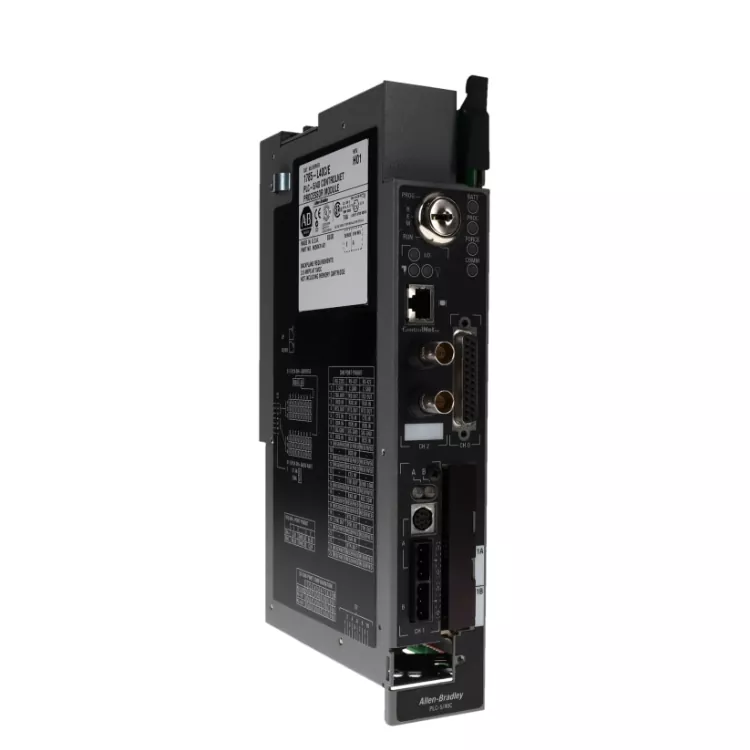

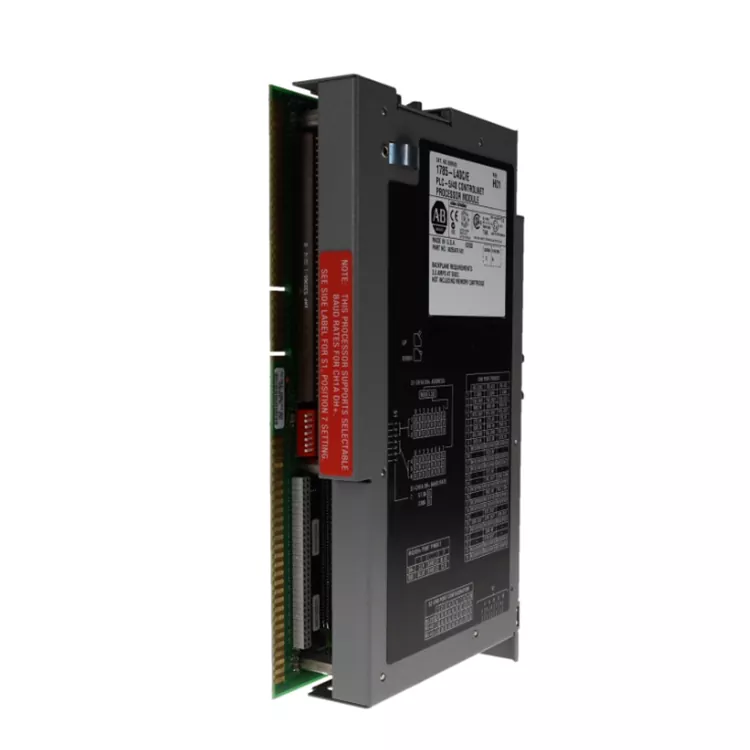

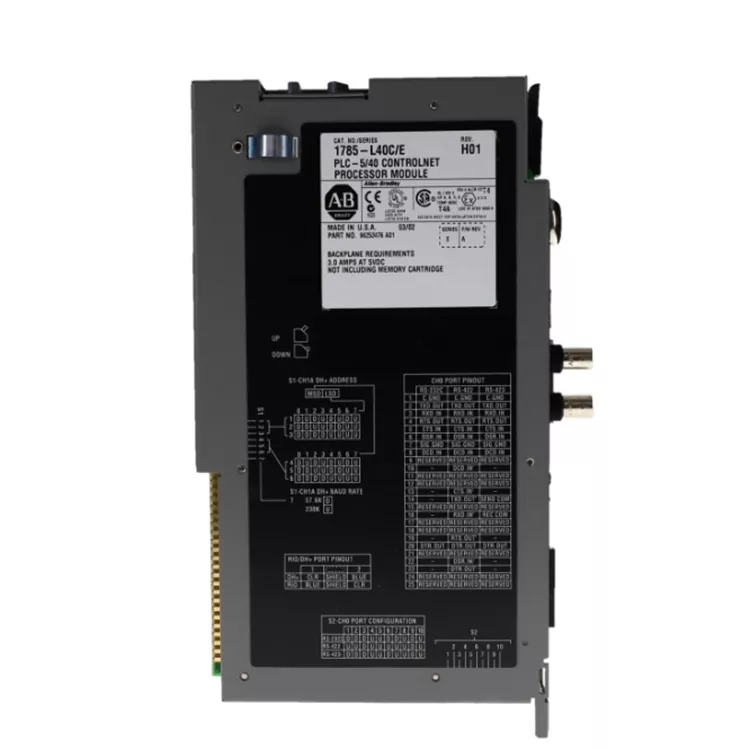

Allen Bradley 1785 L40C

Allen Bradley 1785 L40C is a 48K-word SRAM processor equipped with a ControlNet network interface, while retaining the DH + programming ports. It enables high-speed industrial networking and supports hot backup modules for system redundancy. It is compatible with multiple series of I/O modules such as 1771 and 1794. It is based on RSLogix5 software for program writing and debugging. It is mainly used in large and medium-sized old PLC control systems that require ControlNet bus. Feimu Technology, as a professional supplier, can provide technical reference for this model and assist customers in verifying hardware compatibility and networking matching issues.

Technical Specifications

Application fields

The Allen Bradley 1785 L40C is mainly applied to:

Automated production lines in automotive manufacturing

Control systems for large mechanical equipment

Automation systems for conveying and logistics

Control of power and energy equipment

Process control systems for water treatment and related operations

Maintenance projects for PLC-5 control systems

Core advantage

1. Support for high-speed communication via ControlNet

Integrate the ControlNet network interface to enable high-speed data exchange between controllers, remote I/O, and intelligent devices.

2. Suitable for complex automation systems

Support for large-scale I/O management and multi-device collaborative control, meeting the control requirements of large-scale production equipment.

3. PLC-5 system upgrade and maintenance options

Compatible with the existing PLC-5 architecture, can be used for the maintenance of outdated control systems, reducing overall renovation costs.

4. Stable industrial grade processing capacity

The mature PLC - 5 processor architecture, suitable for continuous operation of the industrial environment.

5. Many network compatible ability

Support ControlNet, DH +, Remote I/O and so on the many kinds of communication mode, convenient integration automation equipment.

FAQ

Q1. What belongs to the module?

Allen Bradley 1785 L40C is Allen - Bradley PLC - 5/40 - c enhanced processor module, used for the control system of PLC - 5 logic control and network communication.

Q2. What are the differences between 1785 L40C and 1785 L40B?

Both belong to the PLC - 5/40 processor, the main difference is that a 1785 - L40C increased ControlNet communication function, and is more suitable for high-speed network control applications.

Q3. What programming software to use?

RSLogix 5 was used for program editing, uploading, and downloading.

Q4. What communication network support?

Support for ControlNet, DH+, Remote I/O and serial communication interfaces.

Q5. What should be noted when replacing?

Confirm the compatibility of the PLC-5 rack

Back up the original program

Check the network node configuration

After completing the communication test, put it into operation

Why choose us

After-sales and services

Provide:

Product model confirmation support

PLC-5 system compatibility consultation

ControlNet/DH+ communication guidance

RSLogix 5 configuration support

Fault diagnosis suggestions

Packaging and shipping

Packaging process:

Product status confirmation

Anti-static bag packaging

Anti-vibration material protection

Strengthened cardboard box packaging

Shipment photo confirmation

Support: International express; Air freight; Maritime transportation

Verification process:

Appearance inspection:

Check the product label, model, serial number, shell and interface status, and confirm that there are no modifications or abnormal marks.

Model verification:

Confirm that the equipment model is Allen Bradley 1785 L40C, and the hardware configuration is consistent with the PLC-5/40C processor specifications.

Power-on test:

Install it into the PLC-5 rack, check the CPU startup status and whether the indicator lights are normal.

Communication test:

Verify that the network connection is normal by checking the device communication function through ControlNet, DH+, or RSLogix 5.

Program test:

Program reading, writing and running tests are carried out to verify the processor function.

Stability test:

Run the test continuously to confirm that the module is stable in long-term operation.

Real case and customer evaluation

A paper-making enterprise had a main control failure of the PLC-5 production line. The original model 1785 L40C was in extremely limited supply in the market, and the production line was at risk of shutdown. We provided fully inspected and disassembled good products. After delivery, we cooperated with the customer engineer to complete program loading, ControlNet networking debugging, and the equipment was successfully restored to production, avoiding long-term production losses.

"Old equipment is difficult to find reliable 1785 L40C. After receiving the goods, the communication was normal, and the test report was complete. This solved the spare parts problem for the production line." - Equipment engineer in the paper-making industry.
