Allen Bradley 1769 HSC

Allen Bradley 1769 HSC interface encoder and pulse sensor are used to achieve speed measurement, length measurement and position control. They are widely applied in overseas packaging, material processing, and conveying type automated equipment for inventory management. Feimu Technology, as a professional supplier targeting overseas markets, has completed all the pulse acquisition and backplane bus full testing for the warehousing module. It eliminates the aging and refurbished goods of input channels, and the incoming goods can be directly installed and replaced to meet the rapid repair needs of overseas factories.

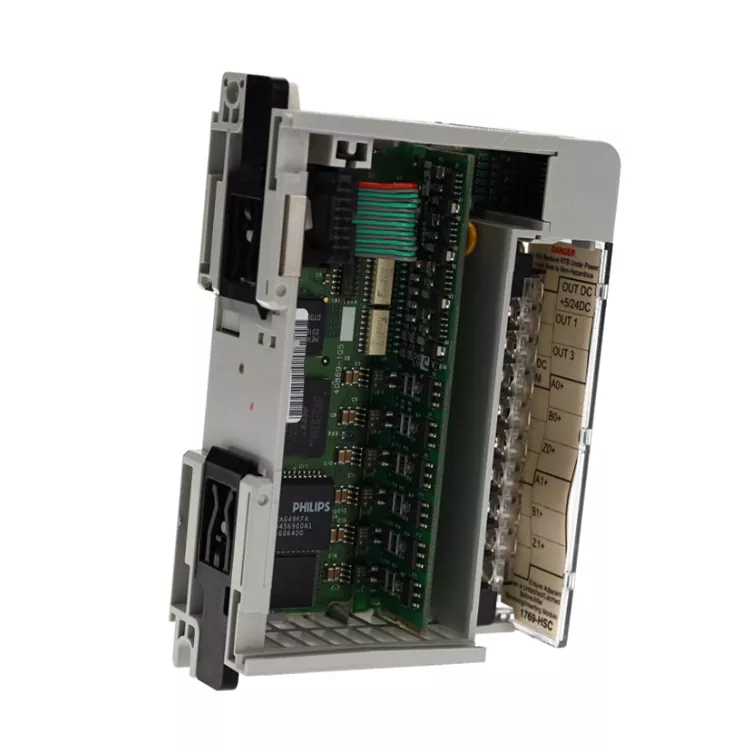

Internal structure

Allen Bradley 1769 HSC is a high-speed counter module of the CompactLogix 1769 series. It adopts a structural design of high-speed signal acquisition + data processing + 1769 bus communication internally, and is used to complete pulse signal acquisition, counting processing, and controller data exchange.

1. High-speed input interface circuit

2. High-speed counting processing unit

3. Microprocessor / control logic unit

4. Data storage and cache unit

5. 1769 bus interface

6. Power management and protection circuit

Data processing flow

Encoder / pulse equipment → High-speed input interface → Counting processing unit → Data cache and diagnosis → 1769 bus interface → CompactLogix controller

Core advantage

High-speed counting capability: Capable of processing high-speed pulse signals, suitable for high-speed production equipment.

Real-time data acquisition: Reduces PLC scanning delay, improves counting and position detection accuracy.

Support for encoder applications: Can be connected to incremental encoders to achieve speed and position feedback.

Reduces CPU load: The module independently completes high-speed counting tasks, improving system response speed.

CompactLogix integration convenience: Can be directly installed in the 1769 I/O system, simplifying system design.

Important parameters

Installation Procedure

1.System Confirmation → Confirm that Allen Bradley 1769 HSC is compatible with CompactLogix 1769 control system and that the controller supports this module.

2.Disconnect power → Power off PLC, power module and I/O system to avoid damage caused by live installation.

3.Determine the installation position, based on the system I/O plan, install 1769 HSC in the 1769 I/O modules of the specified location.

4.Module installation and alignment of 1769 bus connector, the module into the adjacent modules, locking module card clasp, ensure mechanical connection is firm.

5.Field wiring → Connect input signals such as encoders and pulse sensors according to the type of equipment, and make sure that the power supply, signal line and shield line are correctly connected.

6.The software configuration - > in RSLogix adding 1769-5000 / Studio 5000 HSC module, set the input mode and counting parameters and configuration of communication.

7.Test to restore power supply, the system is powered on diagnostic information check module state indicator and controller.

8.Function Verification → Input pulse signals and confirm whether the count value, position feedback, and data communication are normal.

Why choose us

Feimu Technology supplies Rockwell's discontinued and scarce industrial control spare parts globally. For high-speed counting modules like 1769 HSC, it strictly controls the supply and resolutely excludes refurbished or repaired faulty modules.

Each piece of outbound are completed before the pulse signal acquisition module, backplane bus online measurement, avoid channel aging, counting pulse and other recessive fault, along with the corresponding test records.

We support various international logistics solutions and can provide a complete set of customs declaration documents for foreign trade.

We are familiar with the maintenance pain points of old Compact I/O equipment overseas and can provide basic technical assistance to help customers quickly handle on-site faults related to speed measurement and counting, minimizing equipment downtime and reducing production losses as much as possible.

FAQ

Q1. It is mainly applied to which types of signal detection?

It is mainly used for encoder pulses, proximity switch pulses, speed measurement signals, and other high-speed digital pulse signal acquisition.

Q2. What is the difference between with ordinary digital quantity input module?

Ordinary digital input module depends on PLC scanning cycle processing signals, and 1769-HSC has independent high-speed counting processing capabilities, can quickly respond to high-speed pulse changes, improve counting accuracy.

Q3. Support encoder application?

Support. The module can be used in the incremental encoder signal acquisition, the realization of position detection, speed measurement and motion control of auxiliary functions.

Q4. What is the possible cause of the abnormal count?

The frequency of the input signal exceeds the capability range of the module;

Encoder connection error;

The input pattern configuration error;

Shielding grounding bad lead to signal interference;

I/O configuration parameters does not match.

Q5. What if the PLC cannot be recognized after installation?

The module is properly installed on the 1769 I/O bus;

Whether module model is added to controller I/O configuration;

Whether the bus connection is strong;

Whether the controller version and module compatibility meet the requirements.

Customer case and evaluation

An Allen Bradley processing equipment factory overseas had an Allen Bradley 1769 HSC module failure, and the equipment's counting was often incorrect, causing frequent alarms on the production line. The original modules qualified by Feimu Technology were purchased, and after the replacement of the cross-border goods, the pulse acquisition returned to normal, and the equipment did not have any counting disorder.

Customer evaluation: it's hard to find so on high speed counting module, the arrival of the goods directly, can help us to solve the counting equipment are not allowed to be the big trouble.
