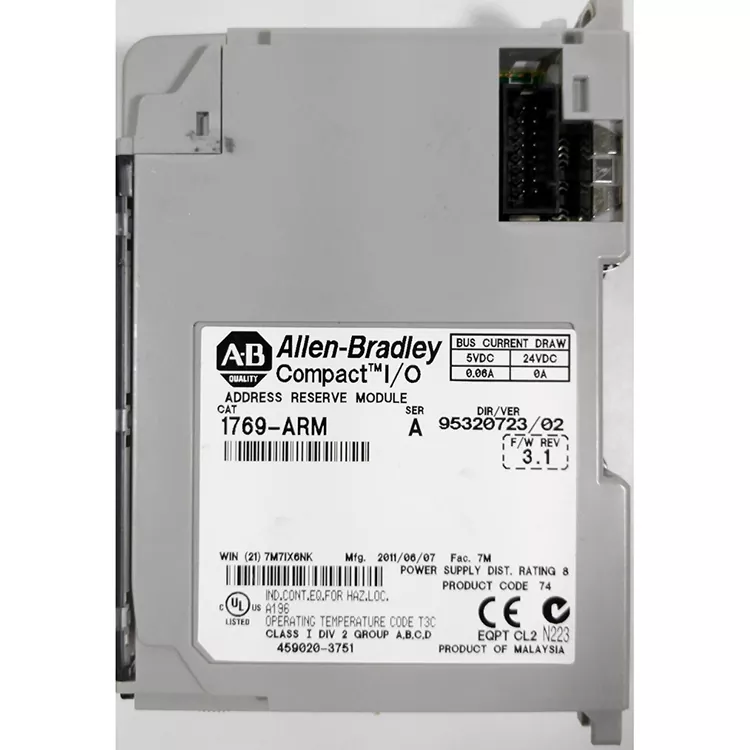

Allen Bradley 1769 ARM is used to lock the I/O slot address of the rack, ensuring that the program configuration does not need to be modified when replacing or expanding the hardware. It is widely used in overseas water treatment, packaging, and manufacturing equipment with inventory. As a professional supplier for overseas markets, Feimu Technology does backplane identification and connection test for all incoming products, screens out contact aging, refurbished and repaired goods, and the goods can be directly installed and used, which meets the needs of rapid replacement of overseas factories.

Core advantages

Keep the I/O address location: in the actual I/O modules temporarily not installed to keep the system address structure.

Convenient system extension: late to increase the I/O module, can reduce addresses the effects of redistribution.

Easy maintenance: suitable for module industrial site of temporary removed or replaced.

Improve the compatibility: the existing control program helps maintain the structure of I/O address.

Internal structure

As a DeviceNet adapter, the Allen Bradley 1769 ADN consists mainly of communication interfaces, processing control circuits, I/O bus interfaces, power supply and protection circuits. All parts work together to complete data exchange between the DeviceNet network and the 1769 Compact I/O system.

Work process:

DeviceNet network → Communication interface → Protocol/control circuit → 1769 I/O bus → I/O module → Field equipment

Important parameters

FAQ

Q1. Can it be replaced directly with an ordinary I/O module?

No, it cannot be simply substituted. The function of the Allen Bradley 1769 ARM is to retain addresses, which is different from the functions of digital and analog I/O modules.

Q2. The PLC program can perform?

Can't. It is not a CPU, but it is used for I/O address management and system configuration of auxiliary module.

Q3. Actually I/O channel?

No, its main function is to retain the address location and it does not provide actual digital or analog I/O.

Q4. When you need to use?

This module can be used when the system needs to temporarily reserve a 1769 I/O address location or plans to add actual I/O modules later.

Q5. Need to configure the I/O after installation?

Should be set according to the needs of specific CompactLogix system and controller configuration, can correctly identify and confirm the controller module in the system structure.

The inspection process

1. Appearance check → Check whether the shell, interfaces, screws and labels are in good condition.

2. Model check → Confirm that the nameplate model, Series and other information are consistent with the order.

3. Power test → Check the indicator light and module running status.

4. Communication test → Access the DeviceNet network to confirm that communication and I/O data exchange are normal.

5. Software verification → Use Rockwell software to check the identification and fault state of the equipment.

6. Record the results → Take photos of the material object, nameplate and test process, form the inspection record and package the goods for delivery.

Application fields

Automatic production line: set aside in the future I/O expansion location, convenient later increase the sensors and actuators.

Packaging equipment: equipment in the design stage of the reserved I/O address, late to reduce hardware upgrades to the influence of the control program.

Material conveying system: Reserve module positions for subsequent addition of detection points, frequency converters, or actuators.

Mechanical equipment upgrade: Remove the old modules or temporarily lack replacement modules, and maintain the original I/O address structure.

Large CompactLogix control systems: Use for standardized I/O layout to facilitate equipment expansion and maintenance.

Customer cases and evaluations

An overseas water treatment equipment manufacturer, the 1769 ARM module configured by the original factory was damaged, and the I/O addresses were shifted after removal, causing the equipment to continuously alarm. They purchased the original tested and measured module from Feimu Technology, completed the cross-border delivery, and the I/O mapping was restored, eliminating the equipment alarm.

The customer: This address retention module is difficult to purchase. The goods have undergone complete testing and do not require program modification to solve our I/O mapping faults.

Why choose us

Focus on the global supply of scarce spare parts for Rockwell Compact I/O series, strictly control the supply sources, and prevent counterfeit and refurbished products from flowing out. Each item comes with a test record and supports multi-channel international logistics. It can be paired with a complete set of foreign trade customs documents. Familiar with overseas equipment maintenance scenarios, it can provide basic technical answers to help overseas customers quickly solve slot address abnormal faults and reduce equipment downtime.

Installation Process

1. System Confirmation: Confirm that Allen Bradley 1769 ARM is compatible with the CompactLogix 1769 I/O system.

2. System power off: turn off the power of the controller and I/O system.

3. Determine the installation position: according to the original I/O address planning, will be 1769 - ARM installed at the specified position.

4. The module installation: on the 1769 bus connector, push module and locking fixed institutions.

5. Check the connection, make sure the module and adjacent 1769 modules connected firmly.

6. Power on the system: Restore the power supply and check the controller and I/O status.

7. Configuration verification: Use the corresponding Rockwell software to check the I/O structure and address configuration to confirm the normal operation of the system.

Service life

Allen Bradley 1769 ARM belongs to the CompactLogix 1769 series of industrial control modules, mainly used for I/O address retention, and is designed for long-term operation in industrial automation environments. Its actual service life is affected by working conditions, installation conditions, and maintenance situations.

Design life: using industrial-grade electronics design, it is suitable for continuous operation of the automatic control system.

Typical service cycle: Under the condition of stable temperature, humidity and electrical environment, it can support continuous operation for many years.

The factors affecting life:

Control cabinet internal temperature and heat dissipation conditions

Dusty, humid and corrosive gas environment

Power supply stability and electric shock

Module to install and maintain
