The 16K user memory of the Allen Bradley 1747-L542 is the standard configuration of the 5/04 series. For medium-sized equipment that requires complex logic control and large data processing, it is completely sufficient and there is no need to worry about insufficient memory causing programs to fail to run. Its instruction execution speed is extremely fast, and it only takes a few milliseconds to scan a ladder diagram. It efficiently responds to the control requirements of the equipment.
The most crucial point is that it is equipped with DH+ communication function, which can easily connect to other PLCs or operation panels. This is crucial for production lines that require centralized control. There is no need to worry about stability. As long as there are no major power supply issues, it can run continuously for several years without failure. The products we supply are all brand new and strictly controlled for quality, ensuring stable operation upon installation and compatibility with Factory industrial control cabinets, without the need for additional modifications.

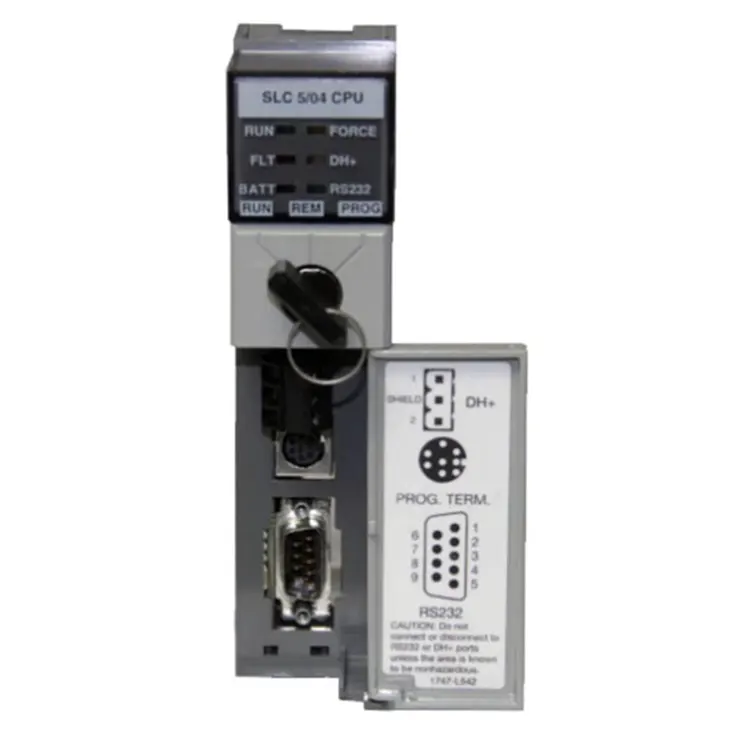

When holding the Allen Bradley 1747-L542, you can clearly feel the heavy and robust texture of the product. The casing is in classic beige color, with solid workmanship. The corners have been rounded to avoid damage from bumps. The front panel is equipped with a row of status indicator lights, including BAT, RUN, FLT, etc., which are essential indicators. When they are lit up, the red and green colors are clear, allowing you to intuitively understand the operating status of the controller from a distance, facilitating the staff in troubleshooting basic faults.
The interface layout is reasonable, equipped with DH+ ports and RS-232 serial ports. When wiring, it is not prone to errors, significantly improving the wiring efficiency. It meets the needs of rapid installation and debugging in industrial sites, even for experienced engineers, it can save a lot of time.
The internal design of Allen Bradley 1747-L542 adopts multiple layers of circuit boards, with components arranged densely and orderly. An excellent filtering circuit is added at the power input end, and large capacitors and inductors are onboard, which can effectively resist fluctuations in the factory power grid and prevent voltage instability from causing damage to the module. To prevent erosion by dust and moisture, the surface of the circuit board is sprayed with three-proof paint, which is also the key reason for its long-term stable operation.
The protection circuit around the chip is well-designed. The heat sink directly adheres to the core heat-generating component, and no fan is needed. It can handle the heat problem through natural cooling, reducing mechanical failure points and further enhancing the durability of the module, perfectly adapting to the complex working conditions of the factory with many dust and fluctuations.
Large-scale production line coordination:
As the main controller, coordinate the operation of multiple assembly lines, packaging lines or material conveying systems, communicating with each workstation slave station or robot controller via the DH+ network.
Process control and system integration:
In industries such as chemical engineering, water treatment, and metallurgy, control complex process flows, conducting extensive data exchange and integration with the upper computer (SCADA), DCS system, or third-party instruments through its communication interface.
Distributed control network:
Utilize its DH+ ports to build a distributed control system, enabling information sharing and collaborative work among multiple controllers, operator terminals, and programming devices.
Maintenance and upgrade of outdated systems:
Replace the faulty SLC 5/04 processor as a spare part to maintain the stable operation of the original system.
|
Model |
Memory |
Communication Ports |
Network Capabilities |
Main Advantages |
Typical Applications |
|
1747-L541 (SLC 5/03) |
16K bytes |
1× RS-232 (configurable as DH-485 or DF1) |
Supports DH-485 network |
Lower cost, meets basic requirements |
Small and medium-sized single-machine devices |
|
1747-L542 (SLC 5/04) |
32K bytes |
1× DH+ + 1× RS-232 |
Supports DH+ high-speed network |
Best choice for communication and balance performance |
Medium and large networked systems |
|
1747-L551 (SLC 5/05) |
64K bytes |
1× Ethernet (10/100Base-T) + 1× RS-232 |
Supports Ethernet network |
Modern Ethernet communication, large memory |
Modern systems requiring Ethernet integration |
Q: Does the Allen Bradley 1747-L542 adapter work with all SLC 500 architecture devices?
A: It is compatible with the vast majority of SLC 500 architecture devices. It is especially suitable for old devices that have been in operation for over twenty years and require replacement of the core processor. There is no need to modify the system; simply plug it in and it can be used.
Q: Can overseas orders be delivered on time?
A: The products are always in stock and available for immediate supply. Once an order is placed, it will be dispatched immediately. Relying on the cooperative logistics giants both domestically and internationally, both domestic and overseas orders can be delivered quickly and safely.
Q: What should we do if there are quality issues?
A: We strictly control the quality. Every product undergoes functional aging tests to ensure its durability. If any quality problems occur, we can respond promptly and handle the return or exchange procedures to protect the customer's rights and interests.
The Allen Bradley 1747-L542 processor is frequently counterfeited. Use the following checks to verify its authenticity.
Panel color: The genuine product uses the same light gray color as the SLC 500 series. Counterfeits often have different color codes or glossy surfaces.
Label quality: The genuine label is permanently printed and the model 1747-L542 is clearly visible. Counterfeits often have blurry text or edges that are lifted.
Rotary switch quality: The genuine switch is tightly fixed and clearly positioned. Counterfeits are often loose or stuck.
Backplate connectors: All pins must be gold-plated and straight. Counterfeits often use tin pins or have bent pins.
Module weight: The genuine 1747-L542 weighs approximately 0.6 kilograms. Counterfeits often feel lighter.
If the red FLT indicator light is displayed after loading the processor program, suspect a counterfeit. Contact Feimu Technology and provide photos for verification.
Each 1747-L542 unit undergoes the following verification process before leaving the warehouse.
Visual inspection: Check the panel color. Verify the labels. Test the smooth operation of the rotary switch. Check if the back panel connectors have bent pins.
Power-on test: The processor is installed in the SLC 500 test rack. Power it on. Confirm that the BAT LED is off. Confirm that the RUN LED is on.
Memory test: Download the standard test program to the processor. Verify that the program runs without errors.
DH+ test: The processor is connected to the DH+ network. Confirm communication with the second device.
RS-232 test: Use a loopback cable to test the RS-232 port. Confirm communication.
Battery test: Measure the battery voltage. Confirm that it is above 2.8V.
Packaging: The processor is placed in an anti-static bag. Sealed in a cardboard box with foam padding. Label with the module number and test date.
